WALL INSTALLATION
▼

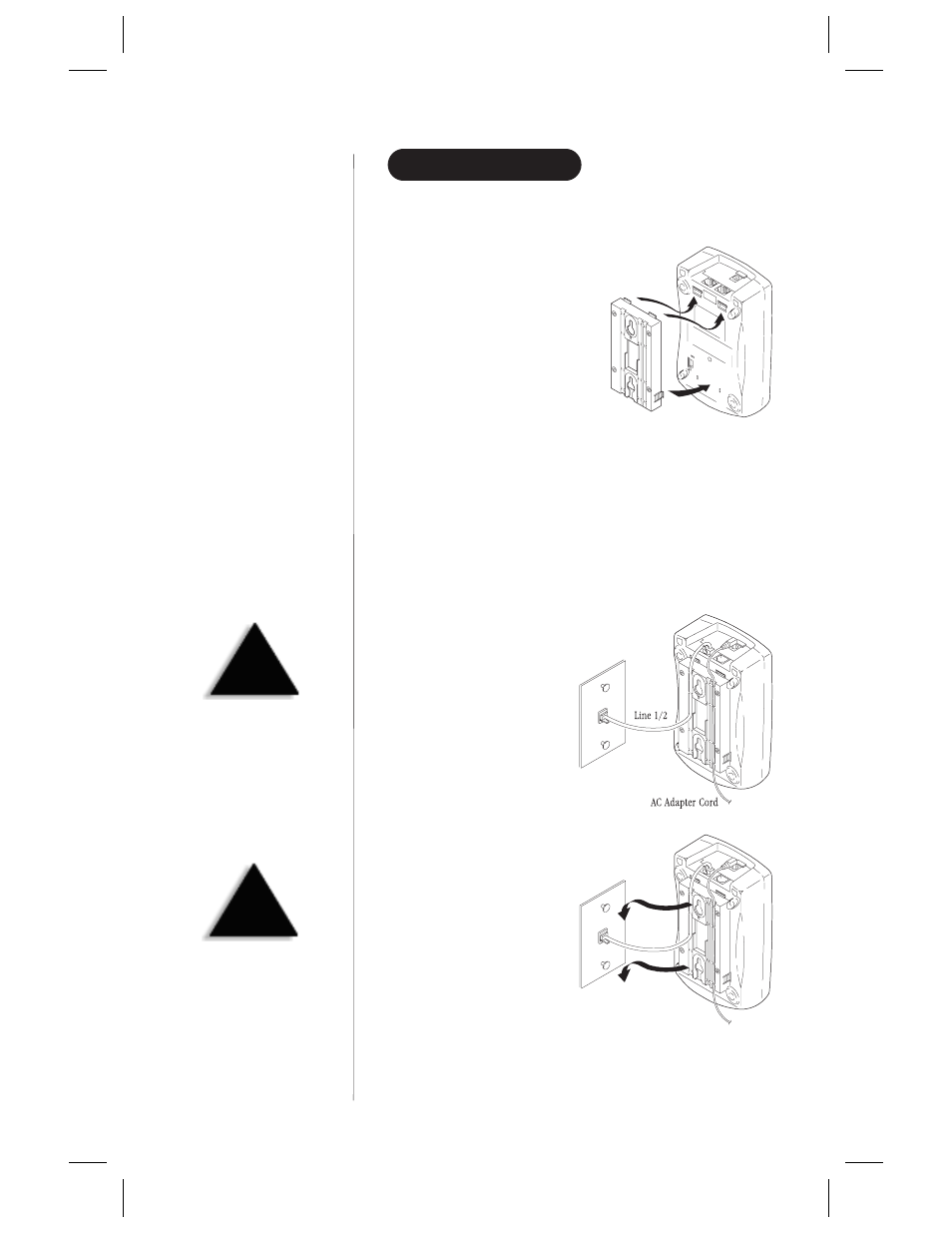

Standard Wall Plate Mounting
These phones are designed to be
mounted on a standard AT&T or GTE
wall plate. To attach the wall mount
stand to the base:
1. Slide the wall mount stand into the
notches at the top of the base,
rotate the wall mount stand down
and snap it into place.
2. Plug the AC adapter into the base as previously described.
3. Place the AC adapter cord inside the molded channel
of the wall mount stand.
4. Plug one end of the short telephone cord into the
LINE
(s)
jack on the base. Then place the telephone cord(s) inside the
molded channel(s) on the bottom of the wall mount stand.
5. Plug the other end of the
short telephone cord into
the modular wall jack.
6. Place the base on the posts of the
wall plate and push down until it is
firmly seated.
7. Plug the AC adapter into a standard 120V AC wall outlet.
$
!
NOTE: DO NOT use an
outlet controlled by a wall
switch.
!
Use only the Uniden
AC adapter AD9500
supplied with this base.
