Mounting the Base Unit on a Wall

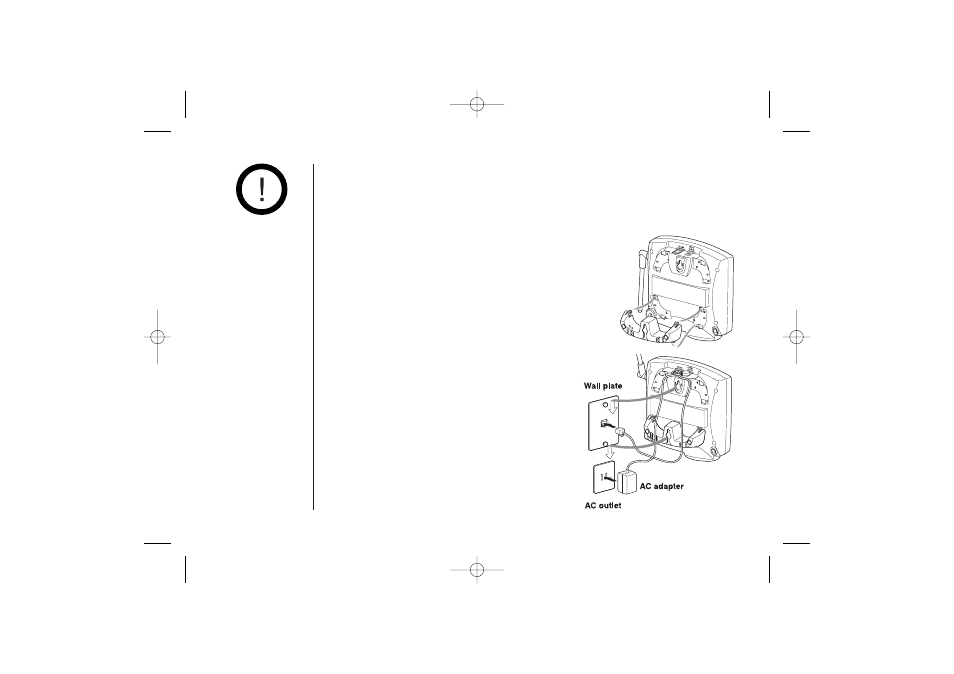

Standard wall plate mounting
This phone can be mounted on any standard telephone wall plate.
1) Snap the desk top/wall mount adapter into the notches on the base bottom.
2) Plug the AC adapter to the DC IN 9V jack. Route the AC
adapter cord inside the molded wiring channel as shown.
3) Plug the AC adapter into a standard 120V AC wall outlet.
4) Plug the telephone line cord into the TEL LINE jack.
Route the cord inside the molded wiring channel as shown.
5) Plug the telephone line cord into the
telephone outlet.
6) Raise the antenna to a vertical position.
7) Align the mounting slots on the base with the
mounting posts on the wall. Push in and down
until the base is firmly seated.
Do not use an
outlet controlled
by a wall switch.
