4.0 INSTALLATION TUT SYSTEMS 5

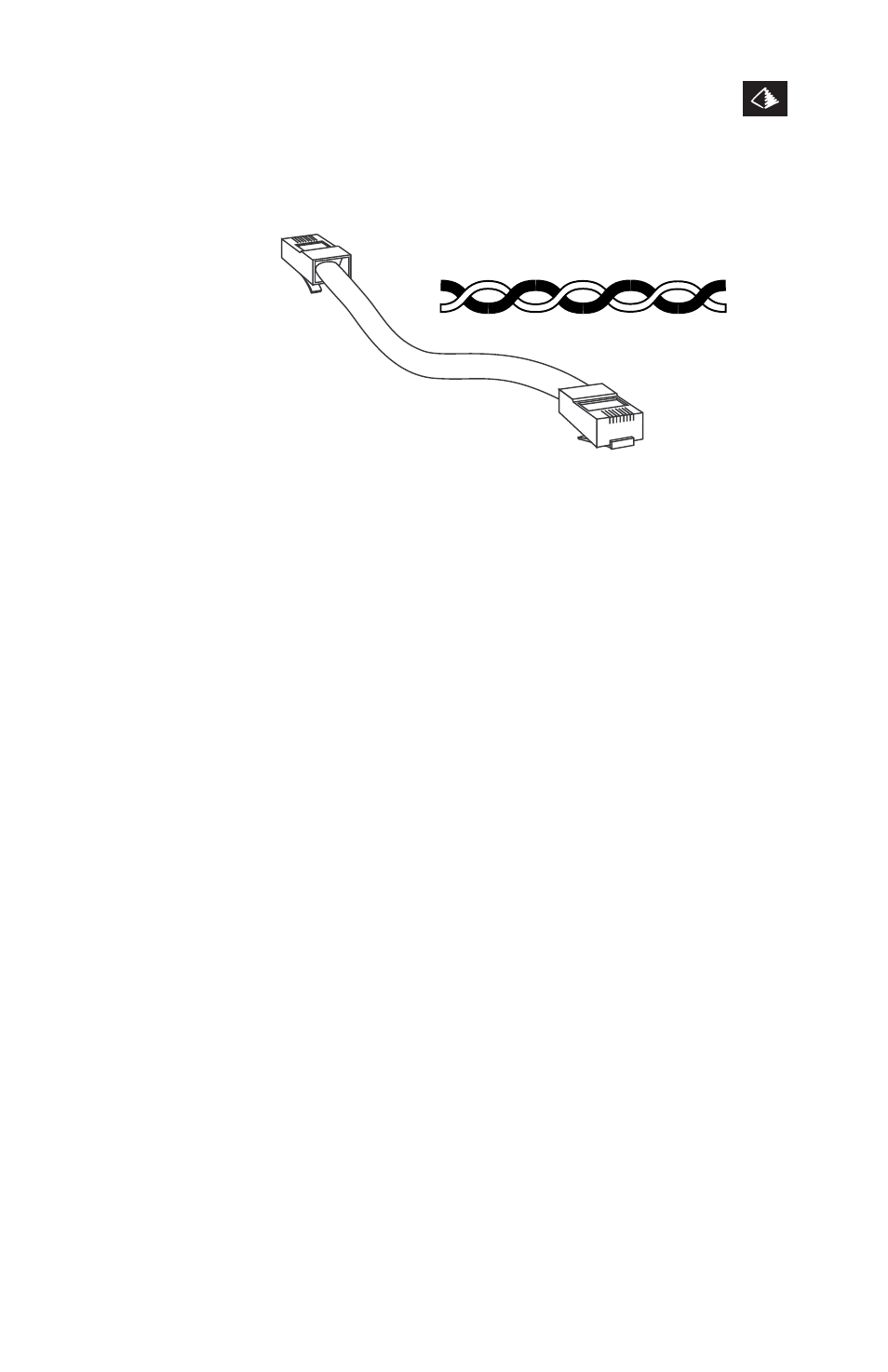

Figure 4.2 RJ-11 DSL Line Cable
2. Select a convenient location near the Ethernet device to which
the modem will be connected. The modem should be kept away
from excessive heat or cold. Operating temperature range is
-5˚C to 55˚C.
3. Connect an RJ-45 straight-through cable from the 10Base-T
Ethernet connector of the XL-12000S to an Ethernet device
(PC, server, workstation or hub) as shown in Figure 4.3. If
connecting to a PC, server, or workstation, set the Ethernet
connection switch on the back of the modem to the “Crossed”
position. If connecting to a 10Base-T hub, set the switch to
“Normal”.
4. Connect the RJ-11 DSL Line cable from the DSL connector on
the modem to the telephone jack as shown in Figure 4.3.
Verify that you have a telephone line linking the two XL-12000S
modems. Verify that this line has no bridge taps and is generally
free of noise.
5. Connect the wall transformer as shown in Figure 4.3.
6. Remove the SNMP/MIB floppy disk and set aside.
