PKGP-PRC001-EN 47

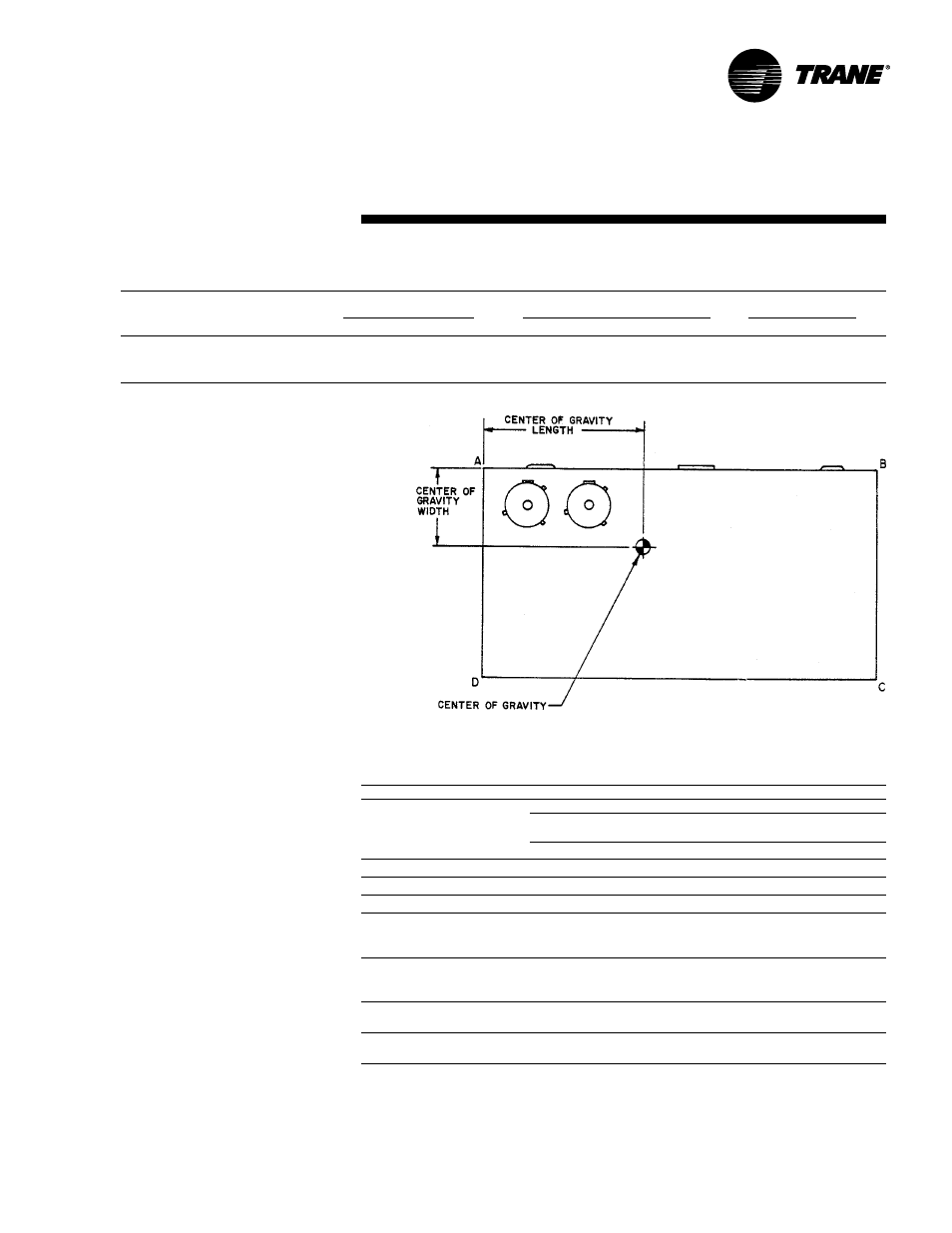

Table W- 2 — Maximum Unit Weights, Corner Weights (Lbs) And Center Of Gravity Dimensions (In.)
Unit Maximum Weights (Lbs) Corner Weights (Lbs) 1 Center of Gravity (In.)
Tons Model No. Shipping Net A B C D Length Width
12½ WC * 150 1719 1351 465 344 231 311 46 29
15 WC * 180 1860 1492 678 227 383 204 44 28
20 WC * 240 2467 2008 707 510 331 460 51 34
Note:
1. Corner weights are given for information only. 12½-20 ton models must be supported continuously by a curb or equivalent frame support.
Weights
*Indicates both downflow and horizontal units.
Table W-3 — Factory Installed Options (FIOPS) Net Weights (Lbs) 1,2,3
Accessory Weight Unit Model Number
High Efficiency Motors 4 49 WC*150-180 standard size motor
WC*210-240 standard size motor
36
WC*150-180 oversize motor
0 WC*210-240 oversize motor
Hinged Doors 27 All WC* units
Powered Convenience Outlet 38 All WC* units
Through the Base Electrical 23 All WC* units
Unit Mounted Circuit Breaker 5 All WC* units except those with 54&72 kW heaters
& 208/230V
10 All WC* units with 54&72 kW heaters & 208/230V
Unit Mounted Disconnect 5 All WC* units except those with 54&72 kW heaters
& 208/230V
10 All WC* units with 54&72 kW heaters & 208/230V
Smoke Detectors
Supply/Return 5 All WC* units
Tool-less Hail Guard 38 WC*150,180
43 WC*240
Notes:
1. Weights for FIOP accessories not listed are >5 lbs.
2. Net weight should be added to unit weight when ordering factory installed accessories.
3. See Table W-1 for standard factory installed economizer and oversized motors.
4. Standard factory installed motors are already included in unit net and shipping weights. Values shown for high
efficiency motors are in addition to the standard motor weight.
(12½ - 20 Tons)
