PKGP-PRC001-EN

39

(12½, 15 Ton)

Dimensional
Data

All dimensions are in inches.

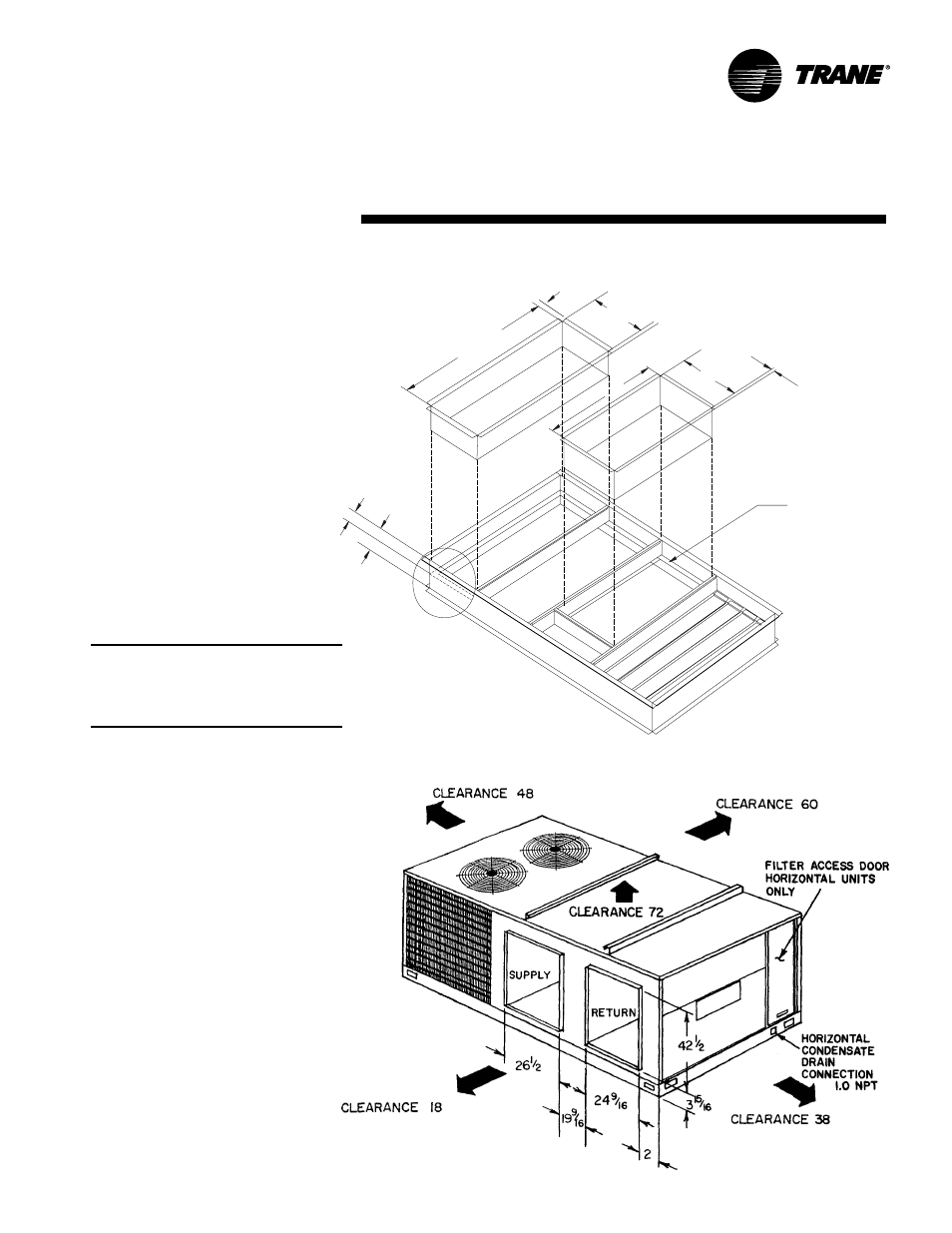

Downflow Duct Connections — Field Fabricated

RETURN

SUPPLY

1 1\2"
PERIMETER
CURB FLANGE

59 7/16"

17 7/8"

26 5/16"

52 1/2"

1"

14 1/16"

7 7/16"

1"

Note:
Duct flanges mount 7-7/16" down inside
the curb on the 1½" curb flanges.
Roofcurb is intended for downflow use
only.

Horizontal Unit Supply/Return and Unit Clearance
