42

PKGP-PRC001-EN

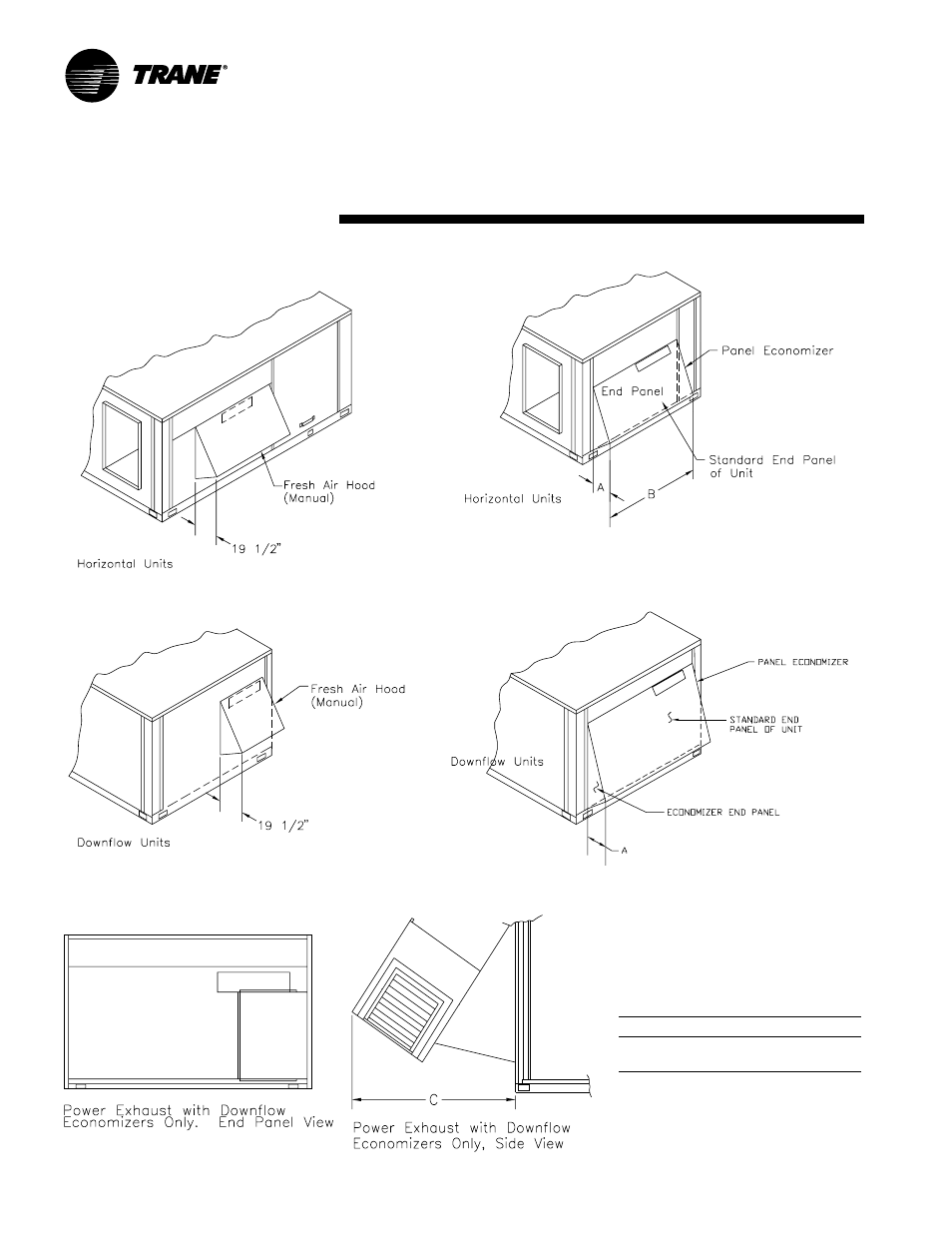

Dimensional
Data

(12½ - 20 Tons)
Accessories

All dimensions are in inches.

Note:
When applying economizer to horizontal units,
connecting ductwork must be run full size to
allow proper operation of Economizer Damper.

Tons

A

B

1

C

2

12½, 15

17

1

/

2

53¾

36

20

19

1

/

2

64¾

39

Notes:
1. Horizontal dimension only. Downflow economizer

is width of end panel.

2. Power exhaust is applied on downflow economizer

only.

Table DD-1
