Trane INTELLIPAK ™ ™ ™ ™ ™ Commercial Single-Zone Rooftop Air Conditioners with CV or VAV Control - Manual (Page 50)

49

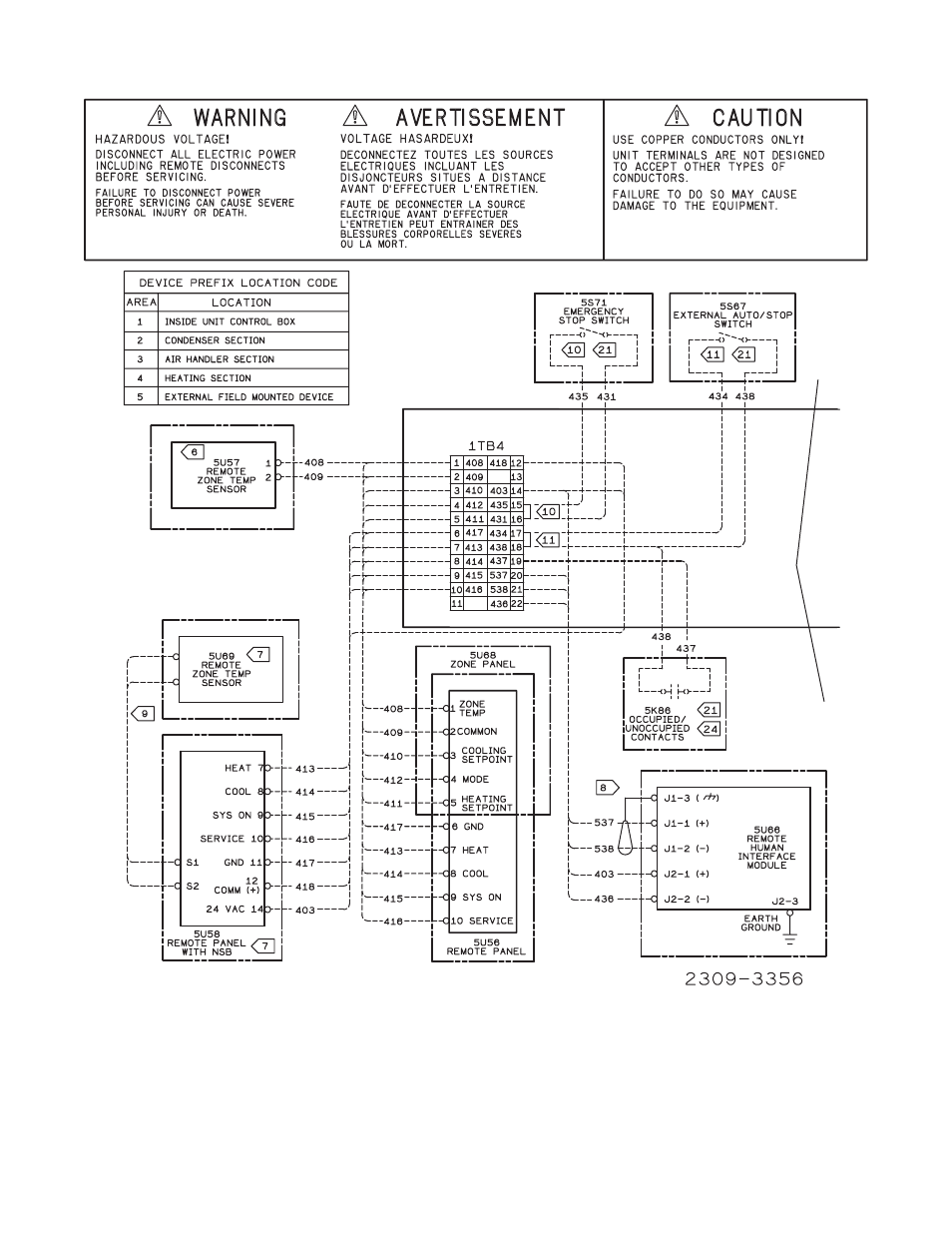

Figure 3-16A
Typical Field Wiring Diagram for 20 through 130 Ton CV Control Options
Refer to Wiring Notes on page 51
