Connecting to external equipment, Av2 (decoder), Av3 (front) – Toshiba D-VR17KB User Manual
Page 20
20
EN
Note for a TV with no S-Video input jack or Scart
socket:
• This unit has no RF modulator, so this type of TV
cannot be used.
• Only component connection is compatible with the
Progressive Scan.

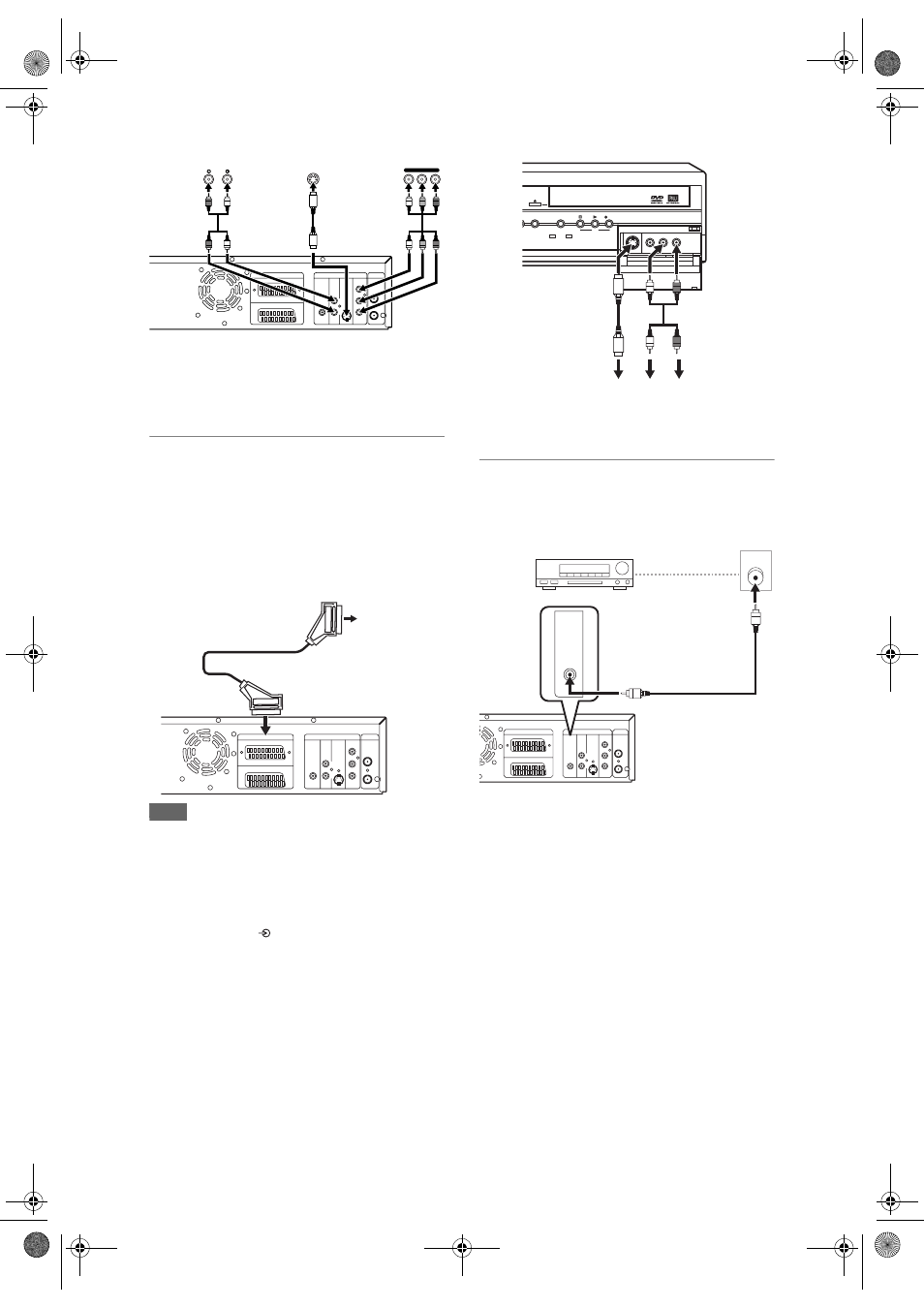

Connecting to External Equipment
This unit has three input terminals, AV1 or AV2 on the
rear panel and AV3 on the front panel. Be sure that all
the units are off before making connections.
Recording from a DVD player, VCR, Satellite
Box or other Audio-Video equipment with a
Scart output socket (AV2)
Note
• When you record a TV programme from a Satellite
Box, you must connect a Scart cable to
AV2(DECODER). (See page 36.)
• When AV2 is connected, the signal from the AV2 will
be output automatically. If you want to monitor the
signal from other input, you must press [DISPLAY]
first. Then, select the desired input to monitor with
[INPUT SELECT
].
Recording from a camcorder or other
Audio-Video equipment with no Scart output
socket (AV3)
If no S-Video input jack is available, connect to
VIDEO input jack on the front panel using an RCA
Video cable.
Change the setup when using S-VIDEO input jack.
(See page 38.)
• When connecting an external device of monaural
output to this unit, use AUDIO L jack of AV3.
Digital Audio for Better Sound Quality
(Only for DVD)
The connections illustrated above are
optional for better sound.
1
For clear digital sound quality, use
the DIGITAL AUDIO OUT (COAXIAL)
jack to connect your digital audio
equipment.
If the audio format of the digital output does not
match the capabilities of your receiver, the
receiver will produce a strong, distorted sound or
no sound at all.
DVD/VCR
DVD
IN
OUT
Y
PB
/CB
PR
/CR
L
R
COAXIAL
COMPONENT
S-VIDEO
OUT
AUDIO
DIGITAL
AUDIO OUT
OUT
VIDEO OUT
ANTENNA
AV2(DECODER)
AV1(TV)
Y
P
B
/C
B
P
R
/C
R
Component
Video IN
S-VIDEO IN
AUDIO IN
Audio
cable
(not
supplied)
S-Video
cable
(not
supplied)
Component
Video Cable
(not
supplied)
DVD/VCR
DVD
IN
OUT
Y
P
B
/C
B
P
R
/C
R
L
R
COAXIAL
COMPONENT
S-VIDEO
OUT
AUDIO
DIGITAL
AUDIO OUT
OUT
VIDEO OUT
ANTENNA
AV2(DECODER)
AV1(TV)
AV output
socket (Scart)
Scart cable (not supplied)
AV2 (DECODER)
DUBBING
VCR/DVD
REC
DVD
DVD
VCR
L
R
S-VIDEO
VIDEO
AV3
AV3 (Front)
S-Video cable
(not supplied)
Audio cable
(not supplied)
S-VIDEO
OUT
AUDIO
OUT
DVD/VCR
DVD
IN
OUT
Y
PB
/CB
PR
/CR
L
R
COAXIAL
COMPONENT
S-VIDEO
OUT
AUDIO
DIGITAL
AUDIO OUT
OUT
VIDEO OUT
ANTENNA
AV2(DECODER)
AV1(TV)
COAXIAL
COAXIAL
DIGITAL
AUDIO OUT
Dolby Digital decoder,
DTS decoder or
MPEG decoder, etc.
Digital audio
input jack
Coaxial cable
(not supplied)
