12 EN

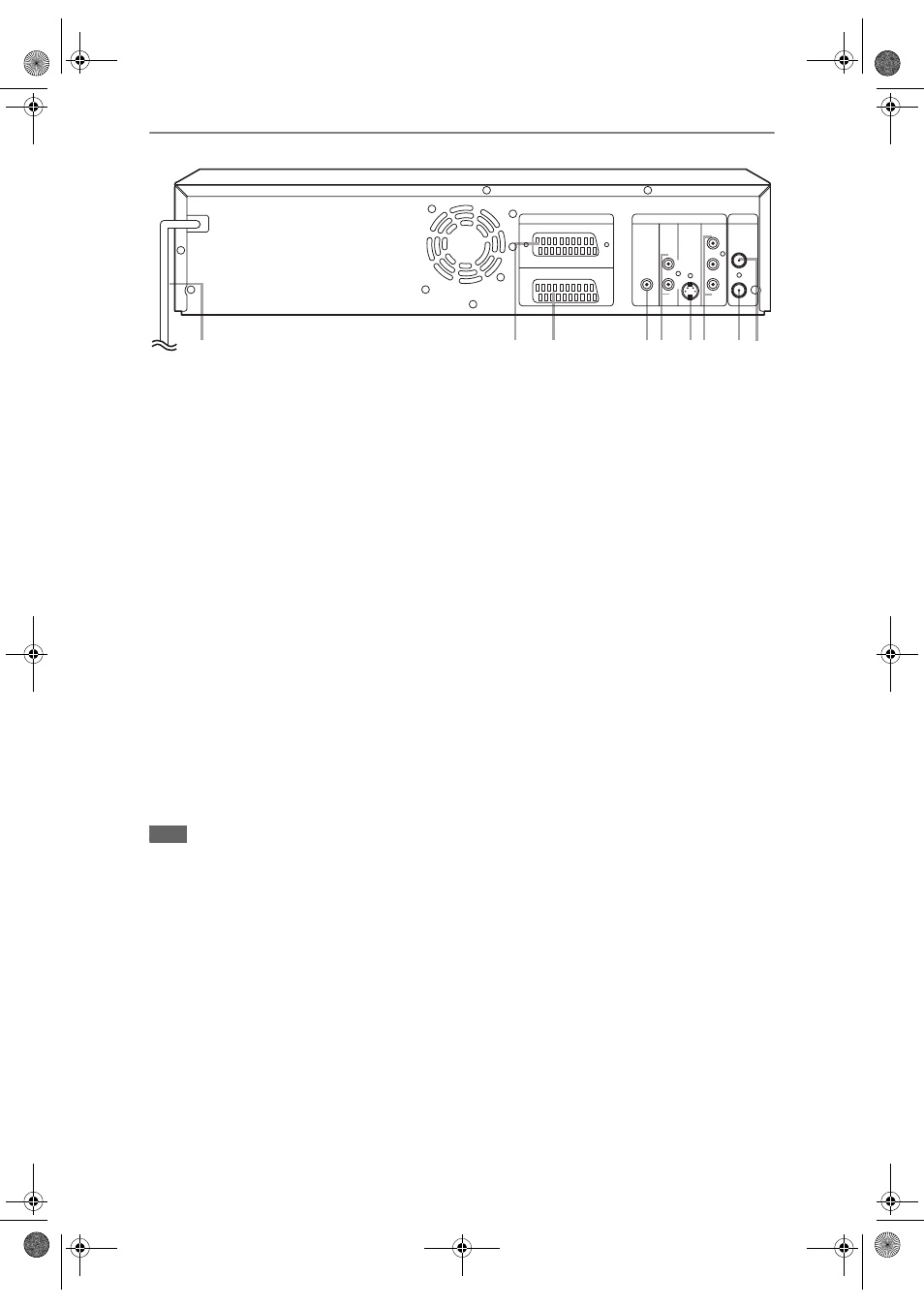

Rear Panel
1 Mains cable
• Connect to a standard AC outlet.
2 AV2 (DECODER) socket (DVD / VCR)
• Connect to VCR, camcorder, or other
Audio-Video equipment. Use a commercially
available Scart cable.
3 AV1 (TV) socket (DVD / VCR)
• Connect to the Scart socket on your TV. Use a
commercially available Scart cable.
4 DIGITAL AUDIO OUT (COAXIAL) jack
(DVD)
• Connect to an amplifier with a digital input jack
such as a Dolby Digital decoder, DTS decoder
or MPEG decoder. Use a commercially
available Coaxial cable.
5 AUDIO OUT jacks (DVD)
• Connect to the audio input jacks on your TV.
Use a commercially available Audio cable.
6 S-VIDEO OUT jack (DVD)
• Connect to the S-Video input jack on your TV.
Use a commercially available S-Video cable.
7 COMPONENT VIDEO OUT jacks (DVD)
• Connect to the component video input jacks on
your TV.
• Use a commercially available Component Video
cable.
8 ANTENNA OUT (DVD / VCR)
• Connect to the Aerial jack on your TV, cable box
or direct broadcast system. Use the supplied RF
cable.
9 ANTENNA IN (DVD / VCR)
• Connect to an antenna or cable.
Note
• Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent damage
to the unit.
• This unit does not have an RF modulator.
9 2 1 3 4 5 8 6 7
DVD/VCR DVD
IN
OUT
Y
P B
/C B
P R
/C R
L
R
COAXIAL
COMPONENT S-VIDEO
OUT
AUDIO DIGITAL
AUDIO OUT OUT VIDEO OUT
ANTENNA
AV2(DECODER)
AV1(TV)
