5. Installation
(continued)
Plug in the KVM. Use only the power cord supplied with the unit.
1.
Switch ON the computers.
2.
5.6 Connecting the Power Supply
To reset the KVM switch, press both Select buttons on the front panel simultaneously. The Server
Interface Units are unaffected by this reset.
To reset the KVM switch, press both Select buttons on the front panel simultaneously. The Server
Interface Units are unaffected by this reset.
5.7 Resetting the KVM Switch
5.8 Resetting the KVM Switch
Connecting a NetCommander USB Server Interface Unit (Model # B078-001-USB)
Connect the B078-001-USB VGA connector to the computers VGA port
1.
Connect the B078-001-USB USB connector to the computers USB port
2.
Connect one end of the Cat5/5e/6 patch cable to the RJ45 port on the B078-001-USB*
3.
Connect the other end of the Cat5/5e/6 patch cable to the desired RJ45 CPU port*
4.
Repeat these steps for each additional USB computer/server you are connecting to the KVM
5.
* Cat5/5e/6 cable should be no longer than 33ft. (10m).

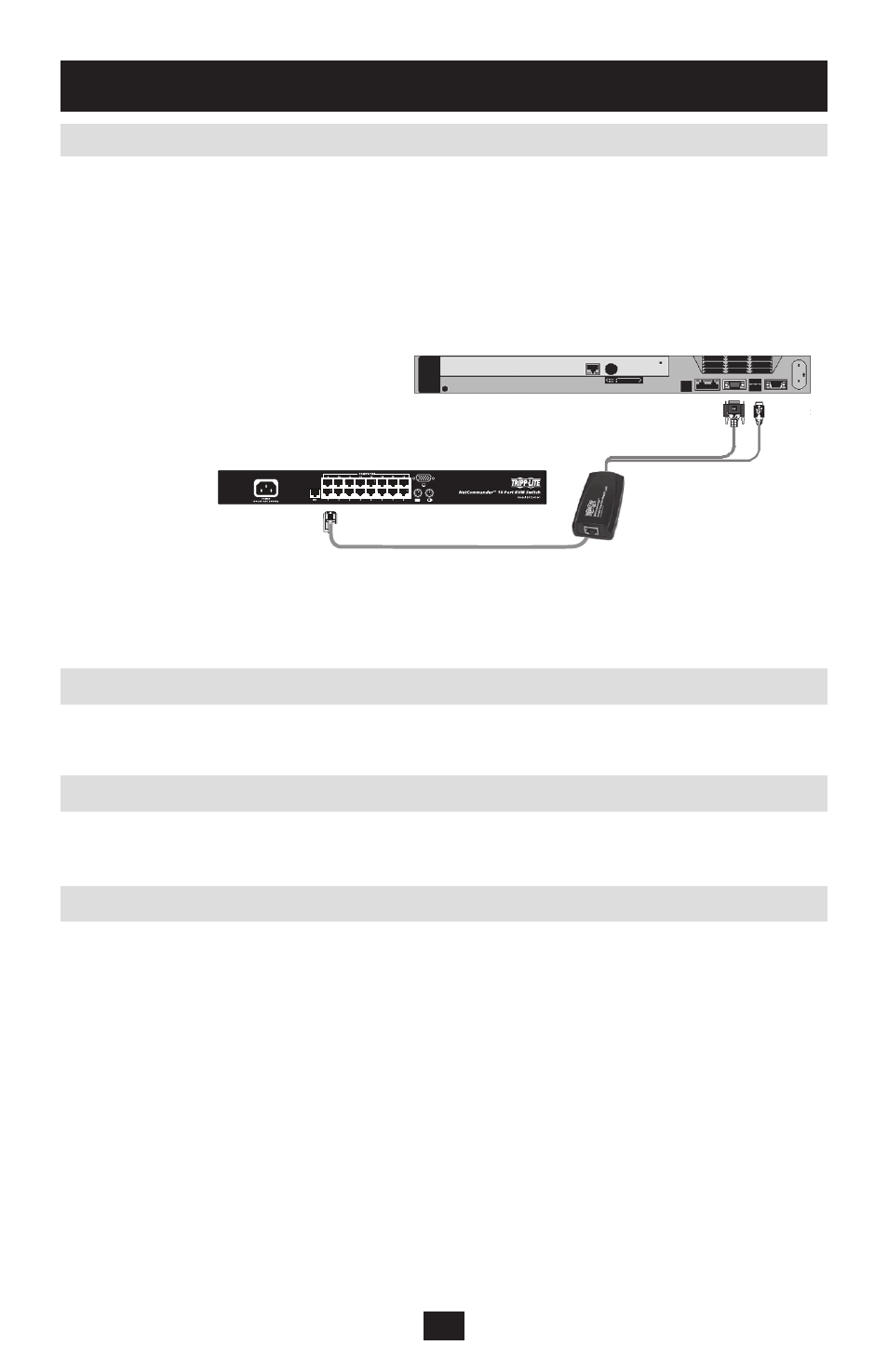

Figure 5.4.2 NetCommander USB Server Interface Unit
SIU = Server Interface Unit
5.5.2 USB Server Interface Unit
Up to 33 Ft (10m)
To VGA port
To USB port
