Application examples
Document processing
T5023/5023+ - Programming Guide
255

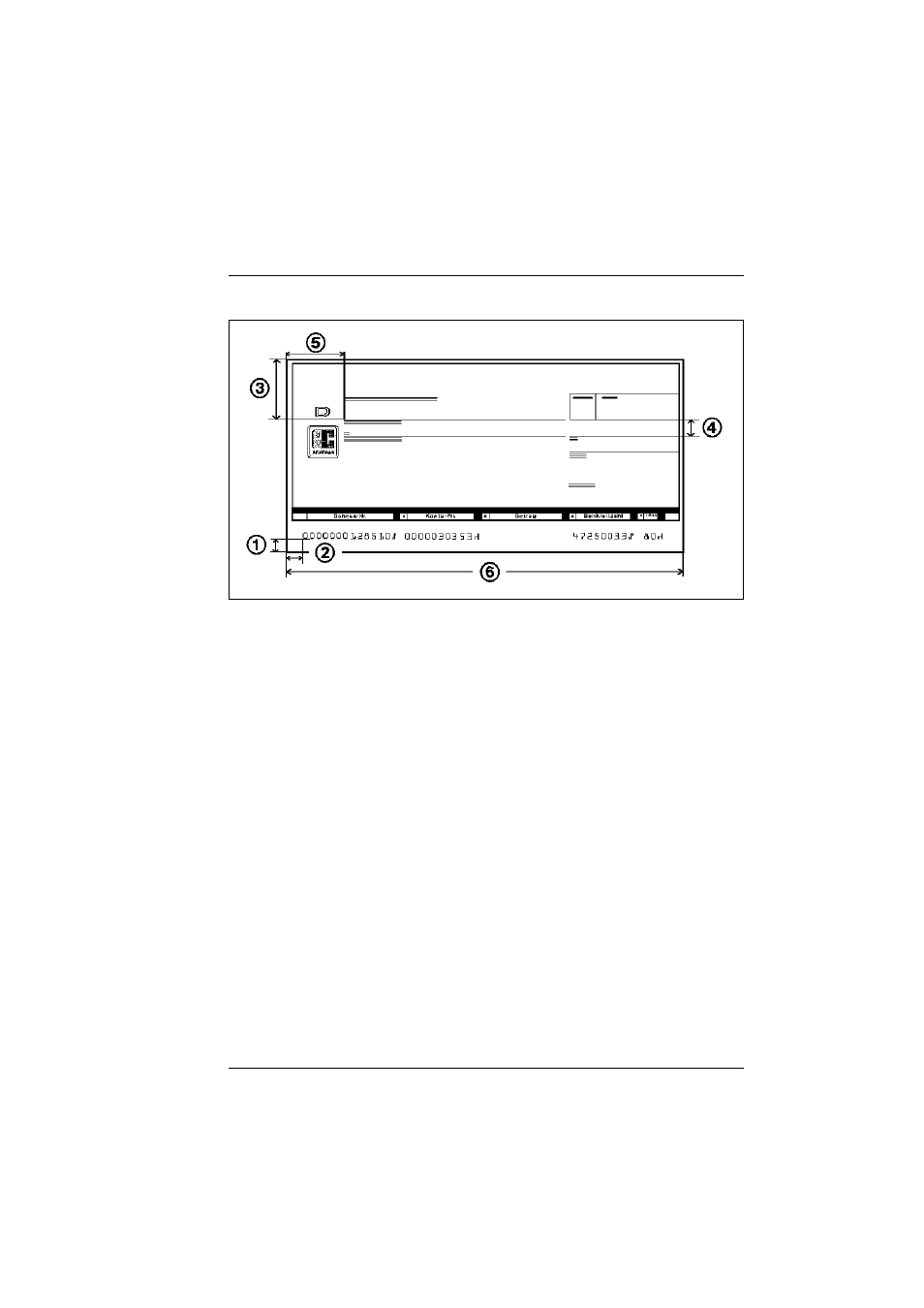

Document structure
The character density in a text line is to be 10 characters/ inch (default value).
1 :
Distance bottom edge of document/ bottom edge of coding line
= 8. 47 mm = 60/180 inch (DIN 66008)
2 :
Distance left edge of document/ left edge of first OCR A character
= 3/10 inch (DIN 66008)
≡
print position 3 (with 1/10 inch/character)
3 :
Distance top edge of document/ bottom edge of first text line
= 24 mm = 170/180 inch
4 :
Distance between the text lines = 7. 5 mm = 53/180 inch
5 :
Distance left edge of document/ left edge of first print character
= 10/10 inch
≡
print position 10 (with 1/10 inch/character)
6 :
Document width = 59/10 inch
