Others

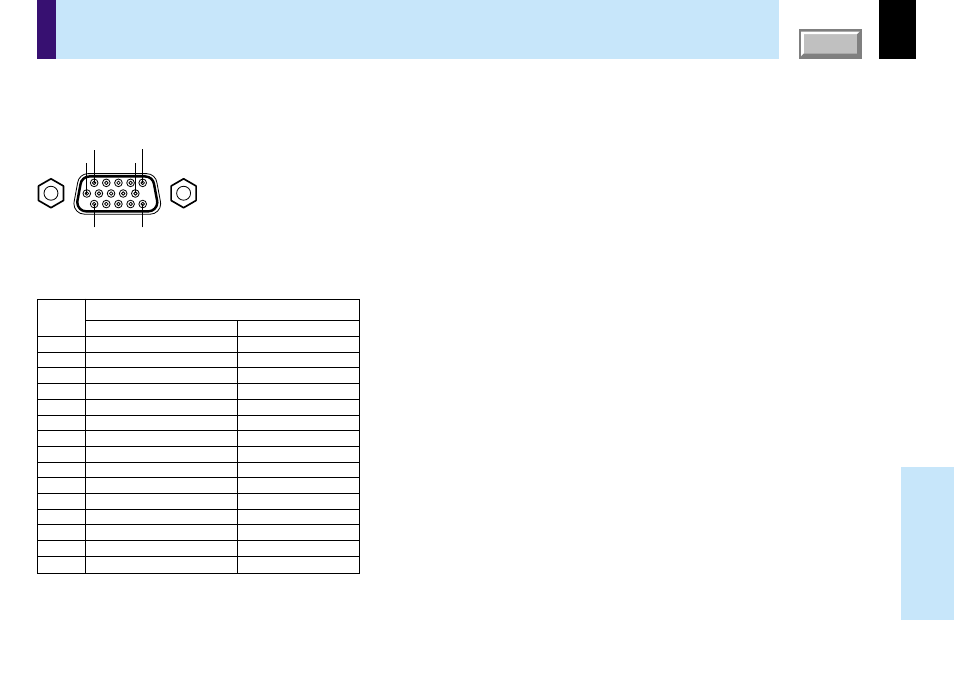

Mini D-sub 15pin connector
Pin assignment of COMPUTER IN, COMPUTER OUT connector
COMPUTER IN
COMPUTER OUT
Input signal
Analog R, G, B signal: 0.7V(p-p) 75
Ω
Horizontal sync signal:
TTL level (positive/negative polarity)
Vertical sync signal:
TTL level (positive/negative polarity)
Y signal: 1.0V(p-p) 75
Ω
P
B
, P
R
signal: 0.7V(p-p) 75
Ω
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
RGB input
Video signal (Red)
Video signal (Green)
Video signal (Blue)
GND
GND
GND (Red)
GND (Green)
GND (Blue)
N.C
GND
GND
DDC data
Horizontal sync signal
Vertical sync signal
DDC clock
Y/P
B
/P
R
input
Color difference signal (P
R
)
Luminance signal (Y)
Color difference signal (P
B
)
*
*
GND (P
R
)
GND (Y)
GND (P
B
)
*
*
*
*
*
*
*
Description
* : Do not connect anything.
5
1
10
15
11
6
