Hardware Overview
Trango Broadband Wireless — Access5830 User Manual Rev. F page 3

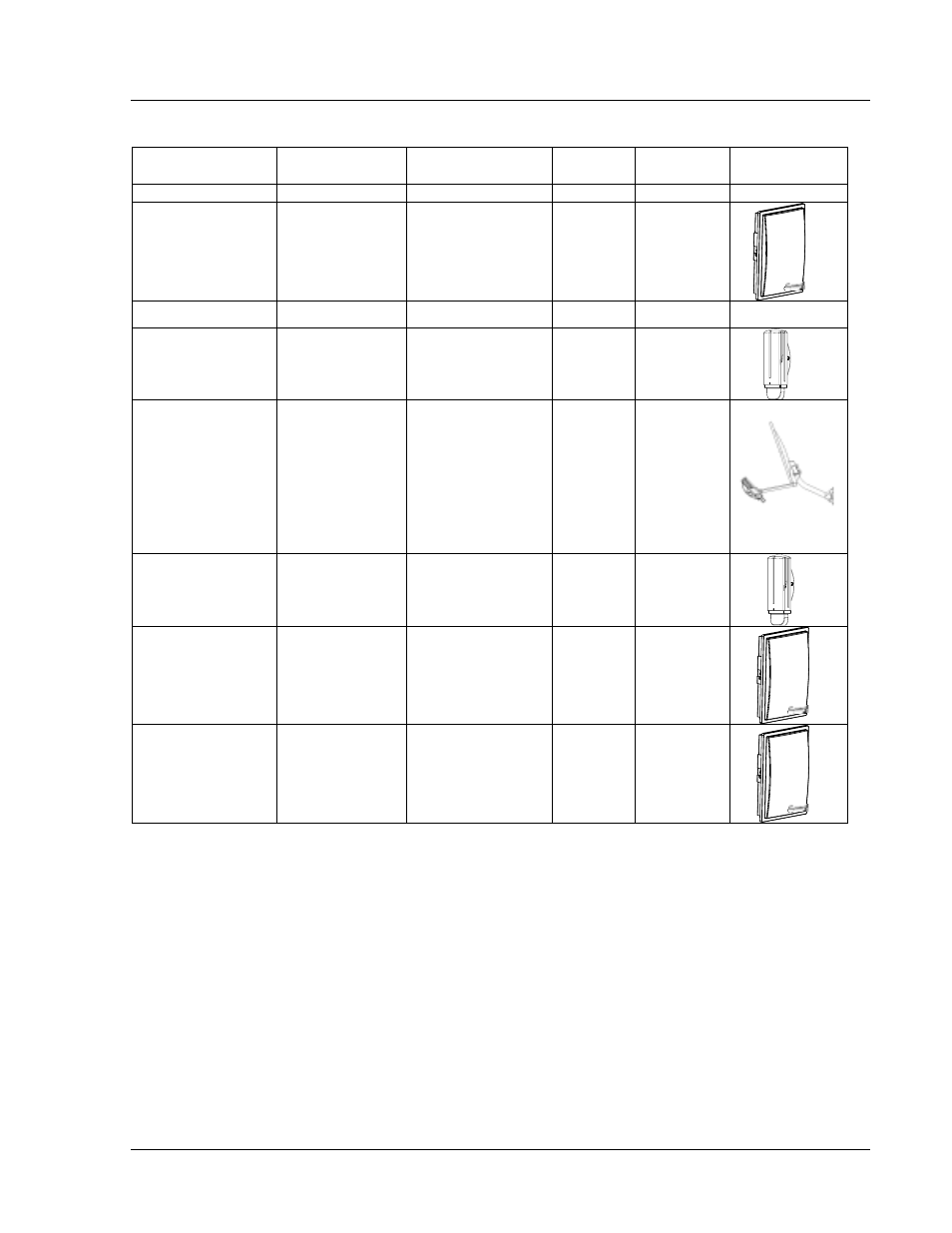

Table 1: Access5830 Radio Description
Description
Freq. Band(s) Antenna
Gain
MAX EIRP Style
Access Point
M5830S-AP-60 Dual Band AP
with internal 60
°
antenna
5725-5850 MHz
(ISM)
5250-5350 MHz
(UNII) 14 dBi 36 dBm
30 dBm
Subscriber Units
M5800S-FSU FOX5800 SU
FOX Series 5.8
GHz SU with
internal antenna 5725-5850 MHz 15 dBi 36 dBm
M5800S-FSU-D FOX5800-D SU
FOX Series 5.8
GHz SU requires
AD5800-25
External Dish
antenna
(Note: this unit
will not work
without the dish) 5725-5850 MHz 25 dBi 47 dBm
M5300S-FSU FOX5300 SU
FOX Series 5.3
GHz SU with
internal antenna 5250-5350 MHz 15 dBi 30 dBm
M5830S-SU 5830 Series Dual
Band SU with
internal antenna. 5725-5850 MHz
5250-5350 MHz 17 dBi 36 dBm
30 dBm
M5830S-SU-EXT Dual Band SU
with external
antenna
connectors
5725-5850 MHz
5250-5350 MHz N/A Up to 52
dBm
30 dBm
!
Note: The FOX5800 and FOX5800-D radios contain different integrated antennas. The FOX5800 includes a multi-
element antenna that will not work properly when placed on an AD5800-25-D dish.
