Mounting Hardware
Trango Broadband Wireless — Access5830 User Manual Rev. F page 31
1/4-20 X 1" HEX HEAD BOLT
1/4-20 KEP NUT
FOX RADIO
DISH MOUNT BRACKET (ES-9231)
10-32 X 1" PAN HEAD SCREW
FEED ARM FROM 18" OFFSET ANTENNA

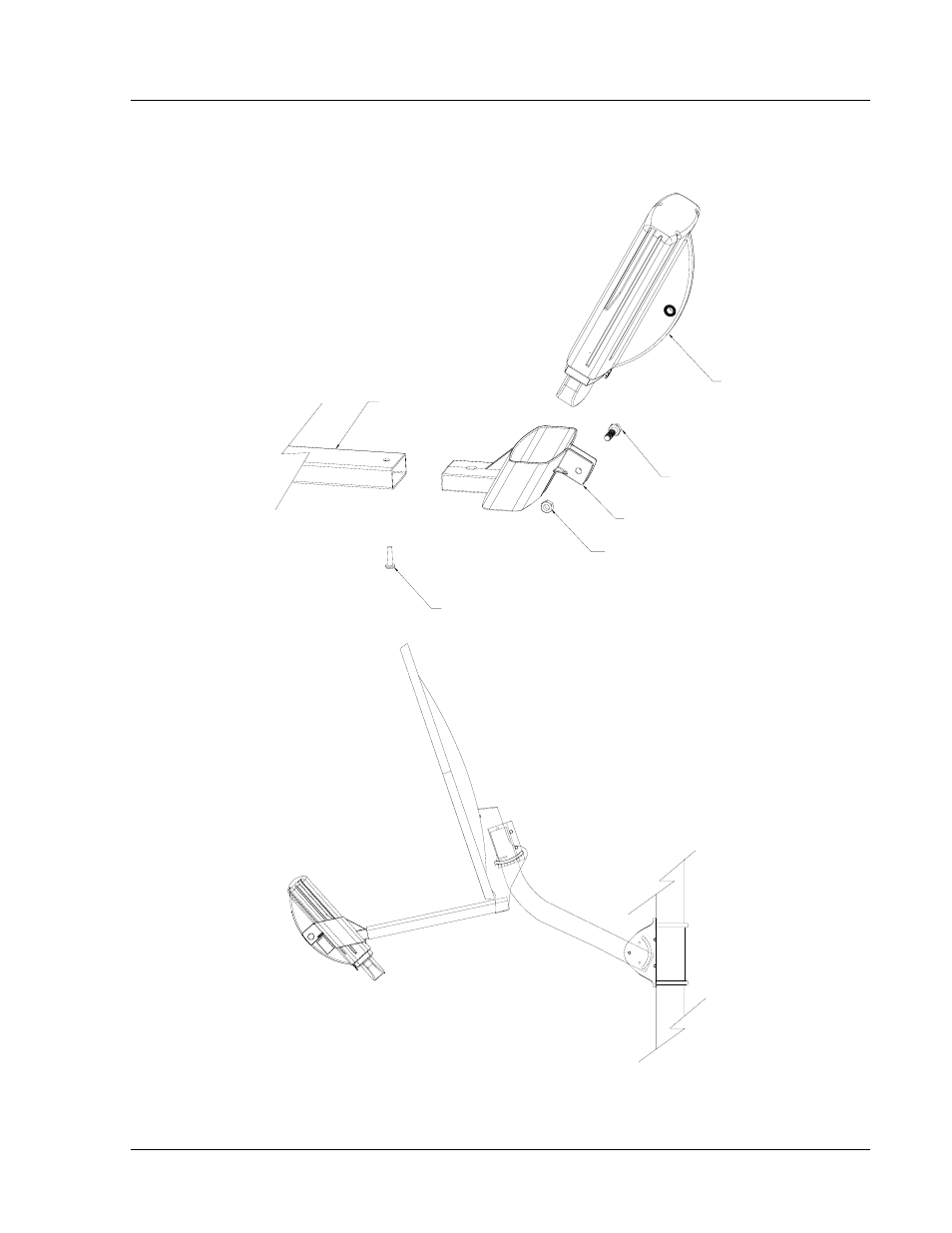

Figure 7-6: FOX5800-D with Mounting Cradle for DSS Dish Antenna
DISH MOUNTED ON MAST USING U-BOLTS
FOX RADIO (M5800S-FSU-D)
MOUNTED ON DISH
Figure 7-7: FOX5800-D / AD5800-25 Reflector Dish on Pole
