80X CompactFlash Card

Transcend Information Inc.

V1.1

19

3.5 Attribute Memory Read Timing

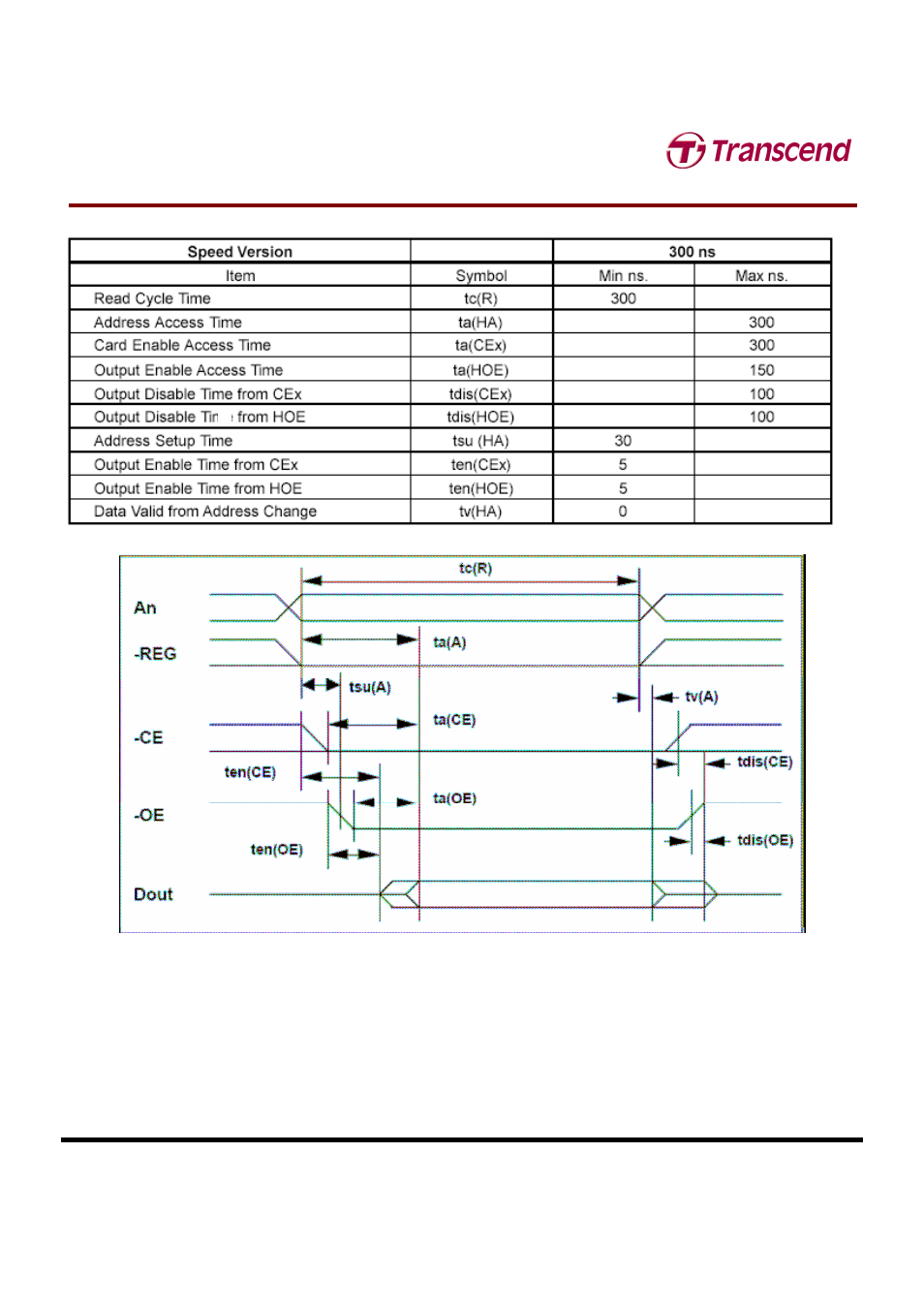

Figure: Attribute Memory Read Timing Diagram
