80X CompactFlash Card
Transcend Information Inc.
V1.1
1
1. Description
The Transcend CF 80X is a High Speed Compact
Flash Card with high quality Flash Memory assembled
on a printed circuit board.
Placement
1.1 Feature
• RoHS compliant products
• Compliant with CompactFlash® specification V3.0
• Single Power Supply: 5V ± 10% / 3.3V ± 5%
• Compliant to CompactFlash, PCMCIA, and ATA
standard s
• Support PIO mode 0 to PIO mode 6
• Support Multi-Word DMA mode 0 to Multi-Word DMA
mode 4 (Series of –P only supports PIO mode 0 to
mode 4, please see Ordering Information)
• True IDE Mode: Fixed Disk (Standard)
• PC Card Mode: Removable Disk (Standard)
• Operating Temperature: -25
o
C to 85
o
C
• Storage Temperature: -40
o
C to 85
o
C
• Hardware RS-code ECC
• Support Wear-Leveling to extend product life
• Durability of Connector: 10,000 times

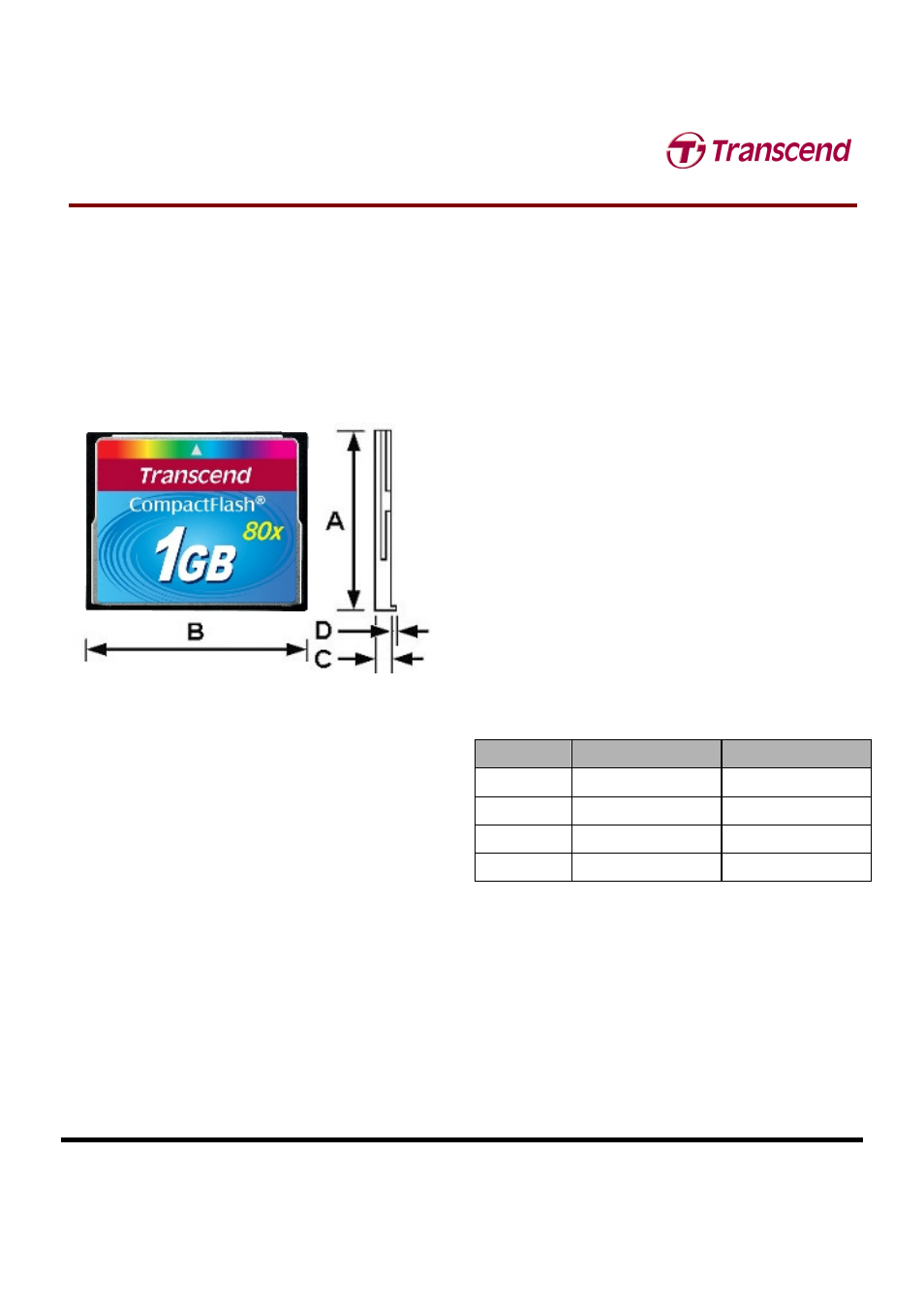

1.2 Dimensions
Side Millimeters Inches
A 36.40 ± 0.150 1.43 ± 0.005
B 42.80 ± 0.100 1.69 ± 0.004
C 3.30 ± 0.100 0.13 ± 0.004
D 0.63 ± 0.070 0.02 ± 0.003
