Page 14
14
Introduction
Index to parts and controls (Continued)

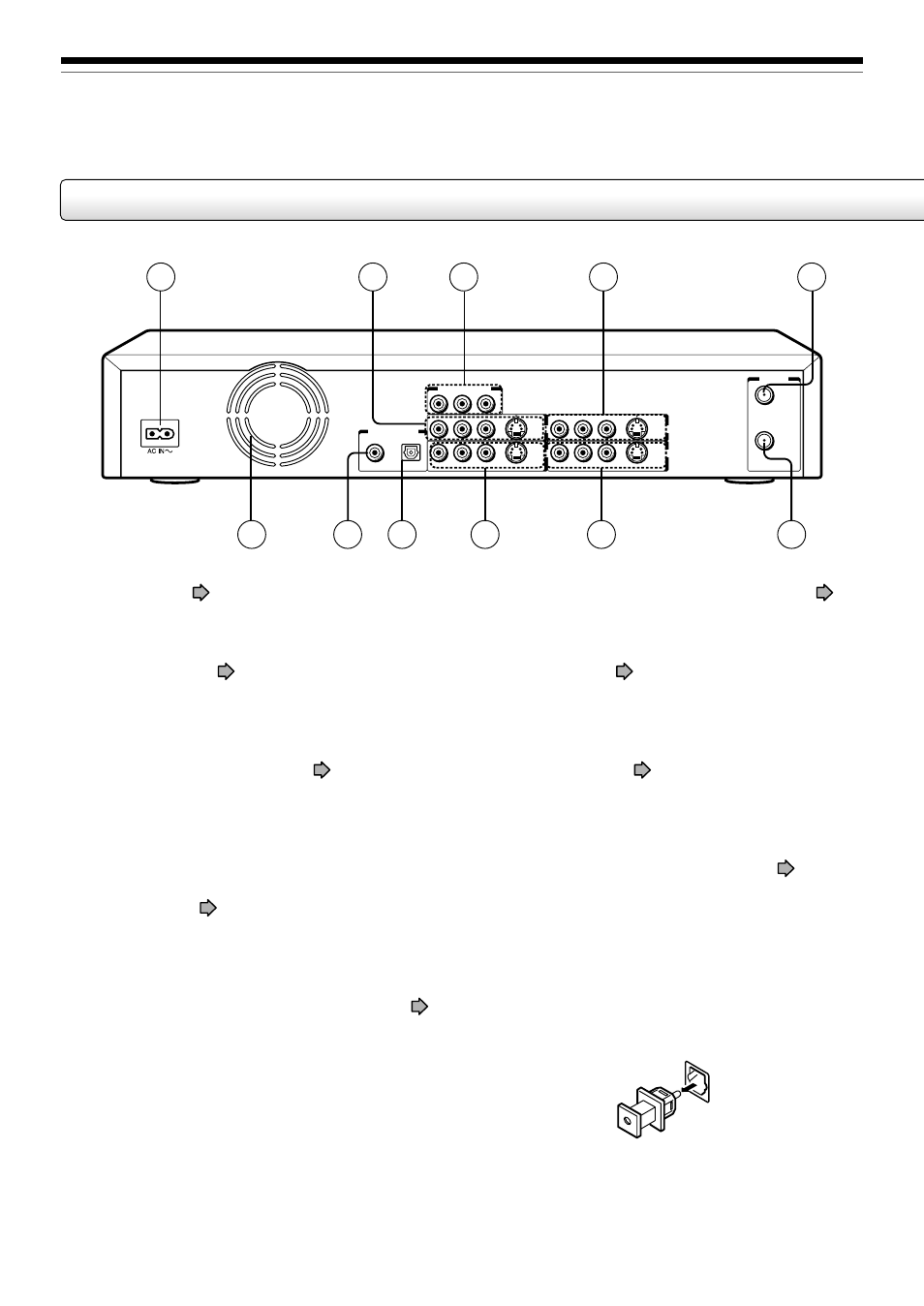

Rear Panel
VHF / UHF
RF IN
(FROM ANT.)
R
L
VIDEO
S-VIDEO
R
L
VIDEO
S-VIDEO
R
COAXIAL
OPTICAL
L
VIDEO
R
L
VIDEO
S-VIDEO
S-VIDEO
RF OUT
(TO TV)
Y
P
B
P
R
COMPONENT OUTPUT
INPUT1
OUTPUT1
OUTPUT2
INPUT3
DIGITAL AUDIO OUTPUT
BITSTREAM/PCM
1
2
3
5
4
6
10
7
9
11
8
6 VHF/UHF RF OUT (TO TV) output socket
page 14 in “INSTALLATION GUIDE”
Connects the supplied coaxial cable to a TV.
7 INPUT 3 jacks
page 37
Use this to connect the recorder to the output
jacks of external devices such as another player or
camcorder.
8 OUTPUT 2 jacks
page 15, 19, 21 in
“INSTALLATION GUIDE”
Outputs video and audio signals to a connected
TV or amplifier.
9 DIGITAL AUDIO OUT/OPTICAL jack
page
21, 22, 23 in “INSTALLATION GUIDE”
Use this to connect the recorder to an audio
receiver equipped with an optical digital audio
input jack.
When connecting the optical digital cable, remove
the cap and fit the connector into the jack firmly.
When not using the jack, keep the cap inserted to
protect it from dust intrusion.
1 AC IN socket
page 15 in “INSTALLATION
GUIDE”
Connects the supplied power cord.
2 OUTPUT 1 jacks
page 15, 19 in
“INSTALLATION GUIDE”
Outputs video and audio signals to a connected
TV or amplifier.
3 COMPONENT OUTPUT jacks
page 19 in
“INSTALLATION GUIDE”
Outputs video signals to a connected TV or
monitor.
Connects to a TV or monitor equipped with
component video jacks.
4 INPUT 1 jacks
page 37
Use this to connect the recorder to output jacks of
external devices such as another player or
camcorder.
5 VHF/UHF RF IN (FROM ANT.) input socket
page 14 in “INSTALLATION GUIDE”
Connects to an antenna or cable signal.
