Introduction
Index to parts and controls
See pages with arrows for details.

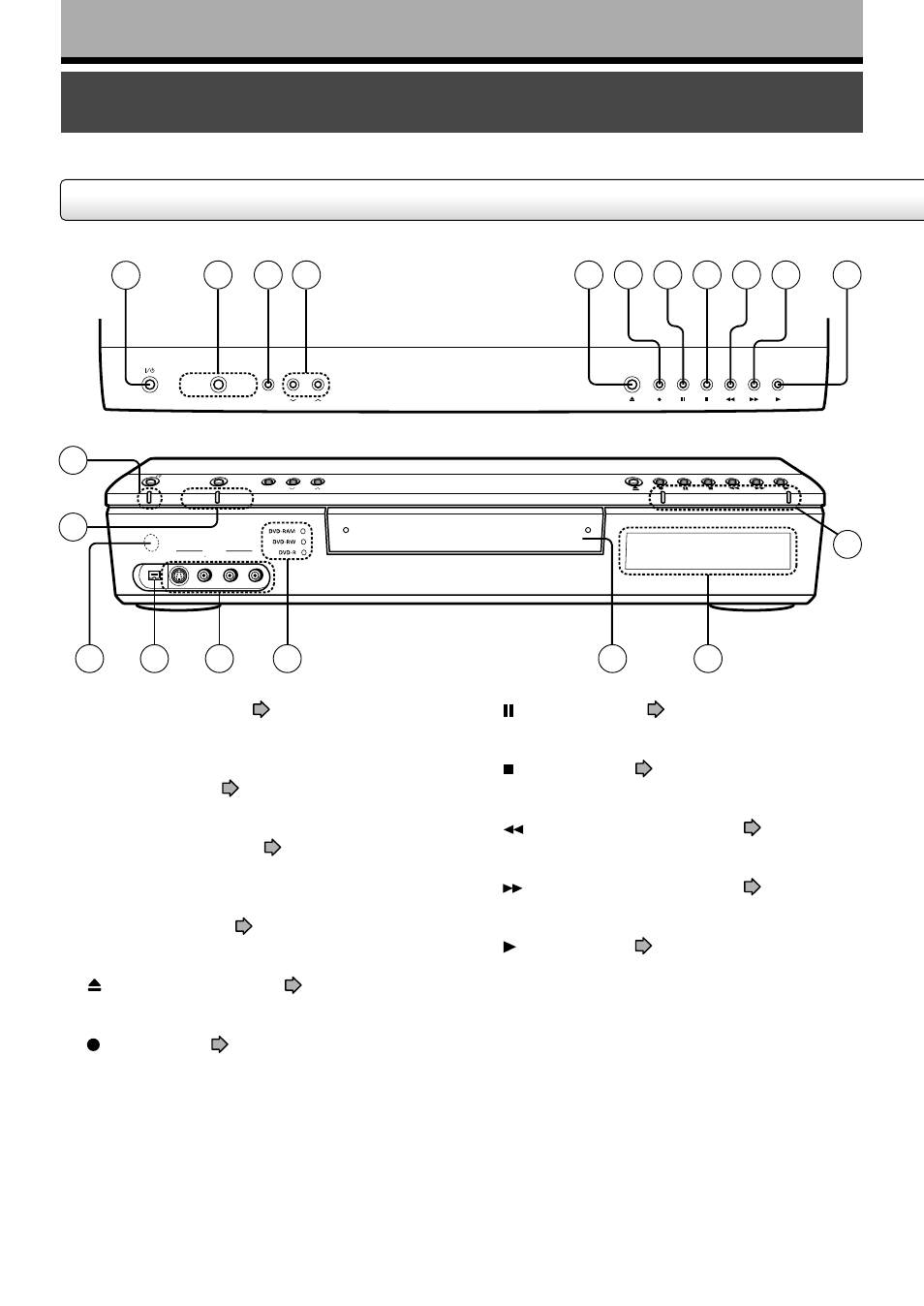

Front panel
DV S-VIDEO S-VIDEO VIDEO VIDEO L R
INPUT 2
INPUT INPUT SELECT SELECT TIMESLIP TIMESLIP ON/ST ON/STANDBY ANDBY CHANNEL
19
20
16 15 17 14 18
13
12
1 ON/STANDBY button
page 20, 21
Turns the power on/restores the unit in the
standby mode.
2 TIMESLIP button
page 63, 64
Selects the time slip mode.
3 INPUT SELECT button
page 38
Pressing repeatedly selects between various input
sources.
4 CHANNEL buttons page 20, 33
Selects the channel.
5
(OPEN/CLOSE) button page 20, 21
Opens and closes the disc tray.
6
(REC) button page 34
Starts recording.
7 (PAUSE) button
page 35, 56
Stops playback or recording momentarily.
8 (STOP) button
page 35, 56
Stops playback or recording.
9
(PICTURE SEARCH) button page 65
Scans the picture backwards.
Ä
(PICTURE SEARCH) button page 65
Scans the picture forward.
Å
(PLAY) button page 61
Starts playback.
Front panel and top panel
ON/STANDBY TIMESLIP INPUT SELECT CHANNEL
1 2 4 8 3 10 9 11 7 6 5
