a. Connect the LNB to the LNB input (LNB IN)of the
DVB receiver.
b. Mains power connection
c. Connect the SCART output of a video recorder to the
VCR
Scart socket of the DVB receiver.
d. Connect the Scart connection of the DVB receiver with the
television set.
e. Connect the
LNB output (LNB OUT) to the LNB input of
an analogue receiver.

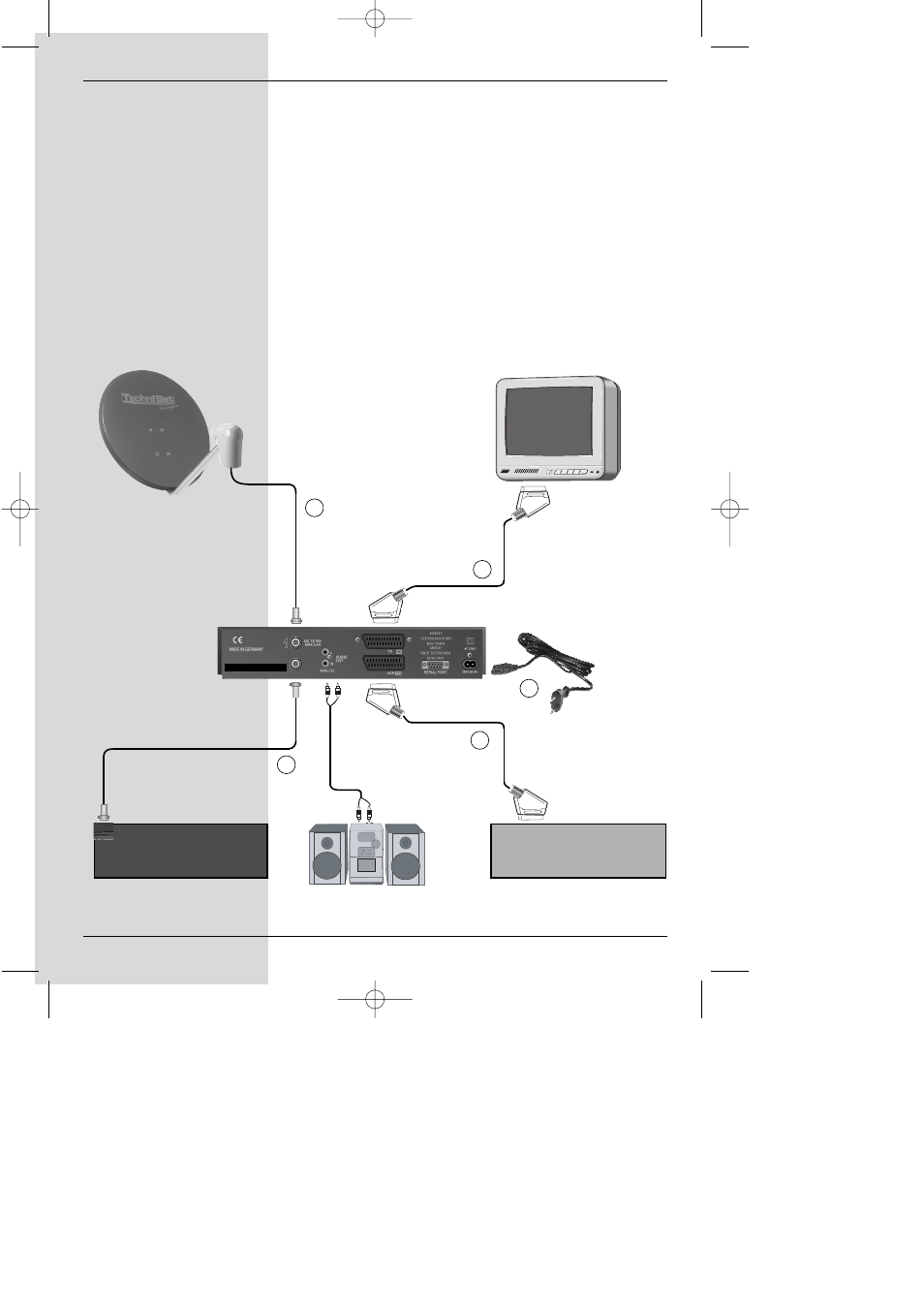

Connecting the DVB receiver to a satellite
installation
8
VCR Analogue Receiver
a
e
c
d
b
