34
> Use the arrow keys left/right to mark the item LNB
test.
> Use the arrow keys up/down to go to the line Motor
antenna, and mark the field Continue.
> Confirm by pressing OK.

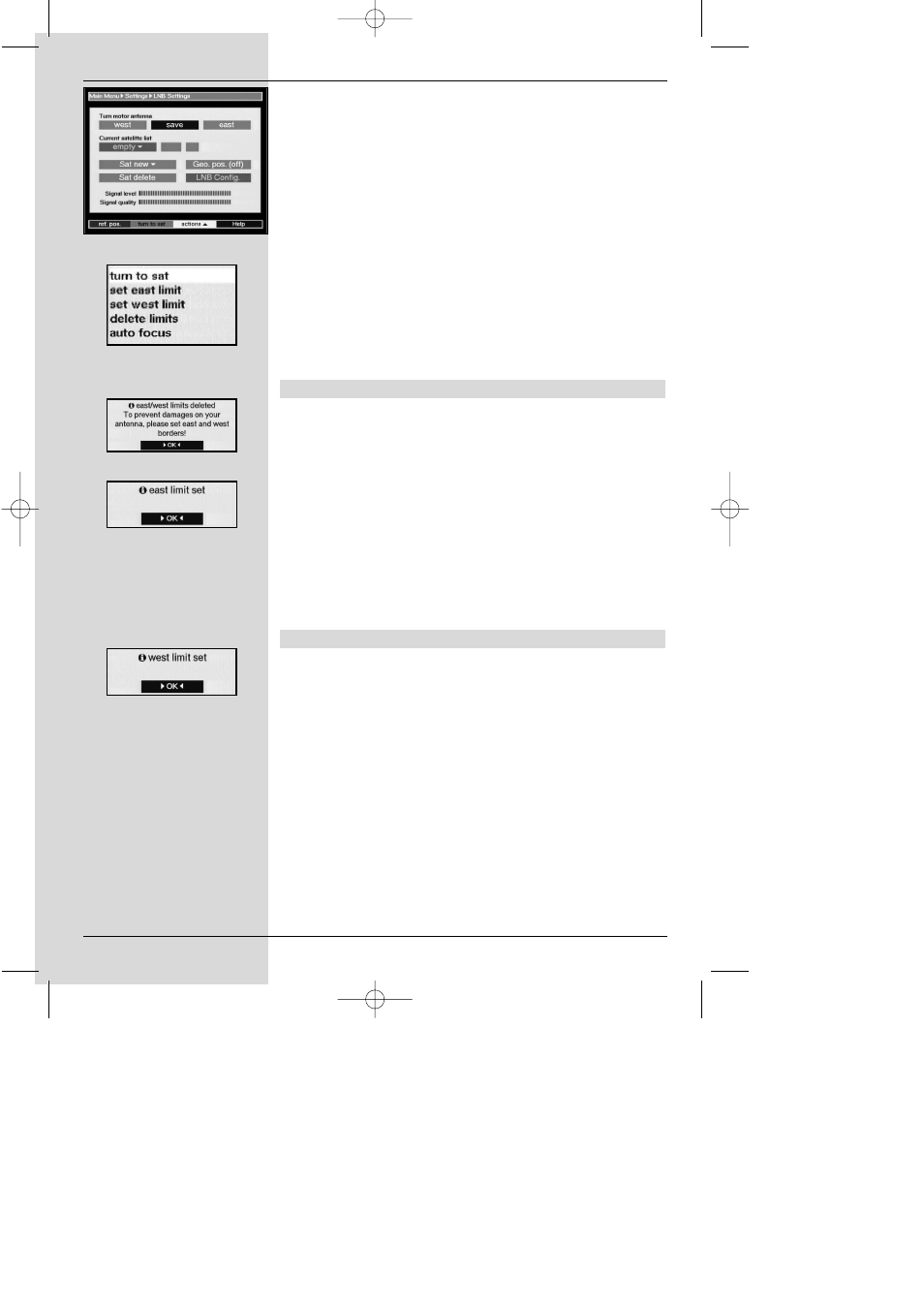

The menu relating to settings for the motor antenna
will be displayed
(Fig. 8-4)
> Press the yellow function key (Action) to open a
further window.
(Fig. 8-5)
> Use the arrow keys up/down to mark the item Delete
limits.
> Confirm by pressing
OK, to transfer the selected
action to the green function key.
> To delete the limits, press the green function key
(Delete limits).
> A note will be displayed. Confirm by pressing OK (Fig.
8-6).
8.1.2 Setting Eastern limit
> To enter the Eastern limit, use the arrow keys to mark
the field Save.
> Press the arrow key right to turn the antenna to the
most easterly position possible, resp. the most
easterly position you wish to include.
> Press the yellow function key (Action), to open the
window showing the available actions.
> Use the arrow keys up/down to mark the entry Set
East limit.
> Confirm by pressing OK.
> To set the Eastern limit, press the green function key
(East limit), a note will be displayed
(Fig. 8-7), then
confirm by pressing OK.
8.1.3 Setting Western limit
> To enter the Western limit, use the arrow keys to
mark the field Save.
> Using the arrow key left, rotate the dish antenna to
the most westerly position possible, resp. to the
most westerly position you wish to include.
> Press the yellow function key (Actions) to open the
window listing all the available actions.
> Use the arrow keys up/down to mark the item Set
West limit.
> Confirm by pressing OK.
> To set the Western limit, press the green function key
(West limit), a note will be displayed
(Fig. 8-8), then
confirm by pressing OK.
(Fig. 8-4)
(Fig. 8-5)
(Fig. 8-6)
(Fig. 8-7)
(Fig. 8-8)
