Mains power
connection
SCART socket
VCR
Audio output
left/right
RS 232 interface
LNB
output
LNB input
On/Standby
LED display
Programme selection
up/down
SCART socket TV
Inserting the CA module:
> Please follow the instructions of the card and module manufacturer.
> Insert the smartcard selected in the appropriate CA module.
> Now insert the module carefully in the slot, in the direction of the arrow
(arrow facing up.
4

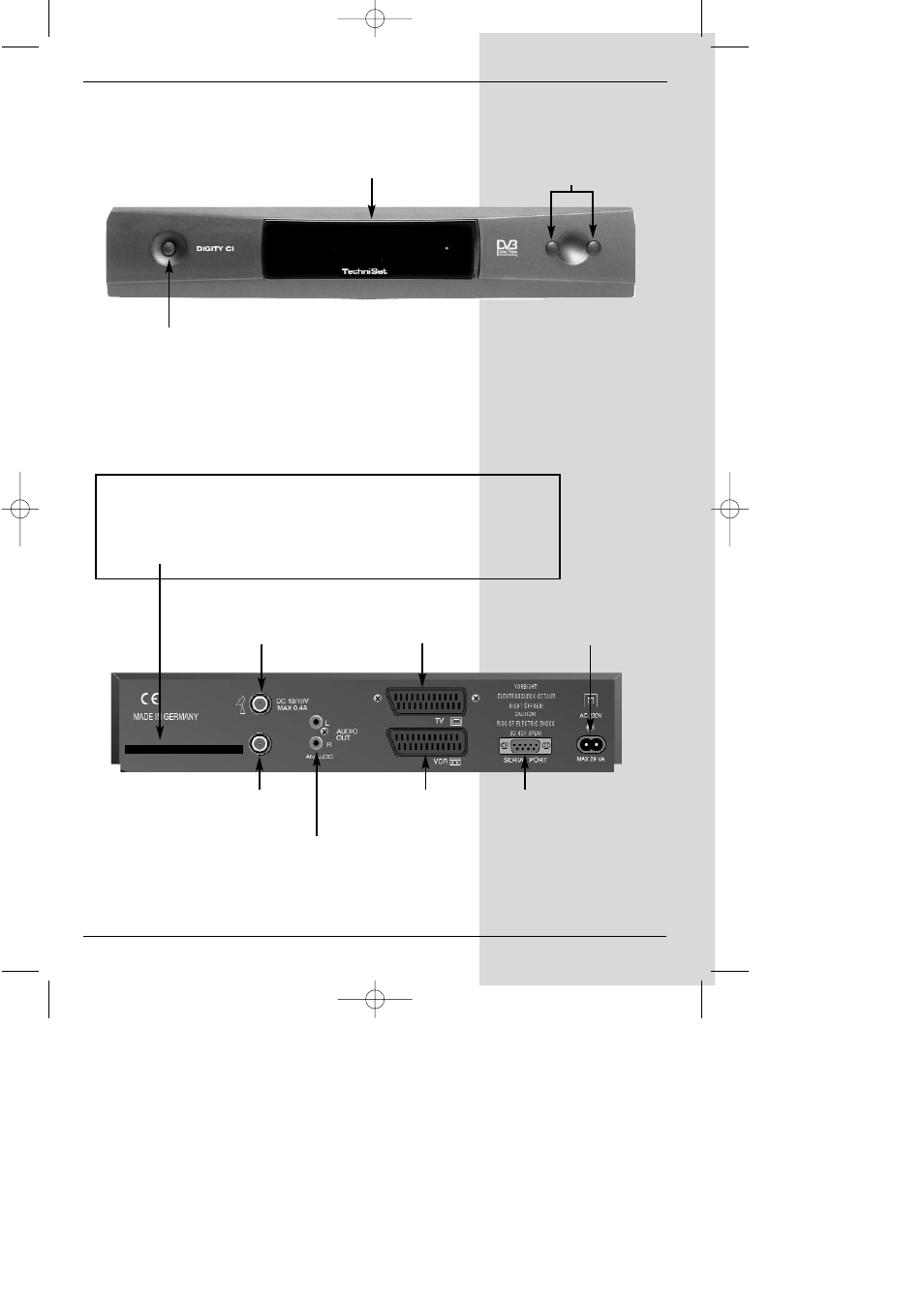

Front panel
Rear panel
