television set (SCART socket) by means of a SCART
10

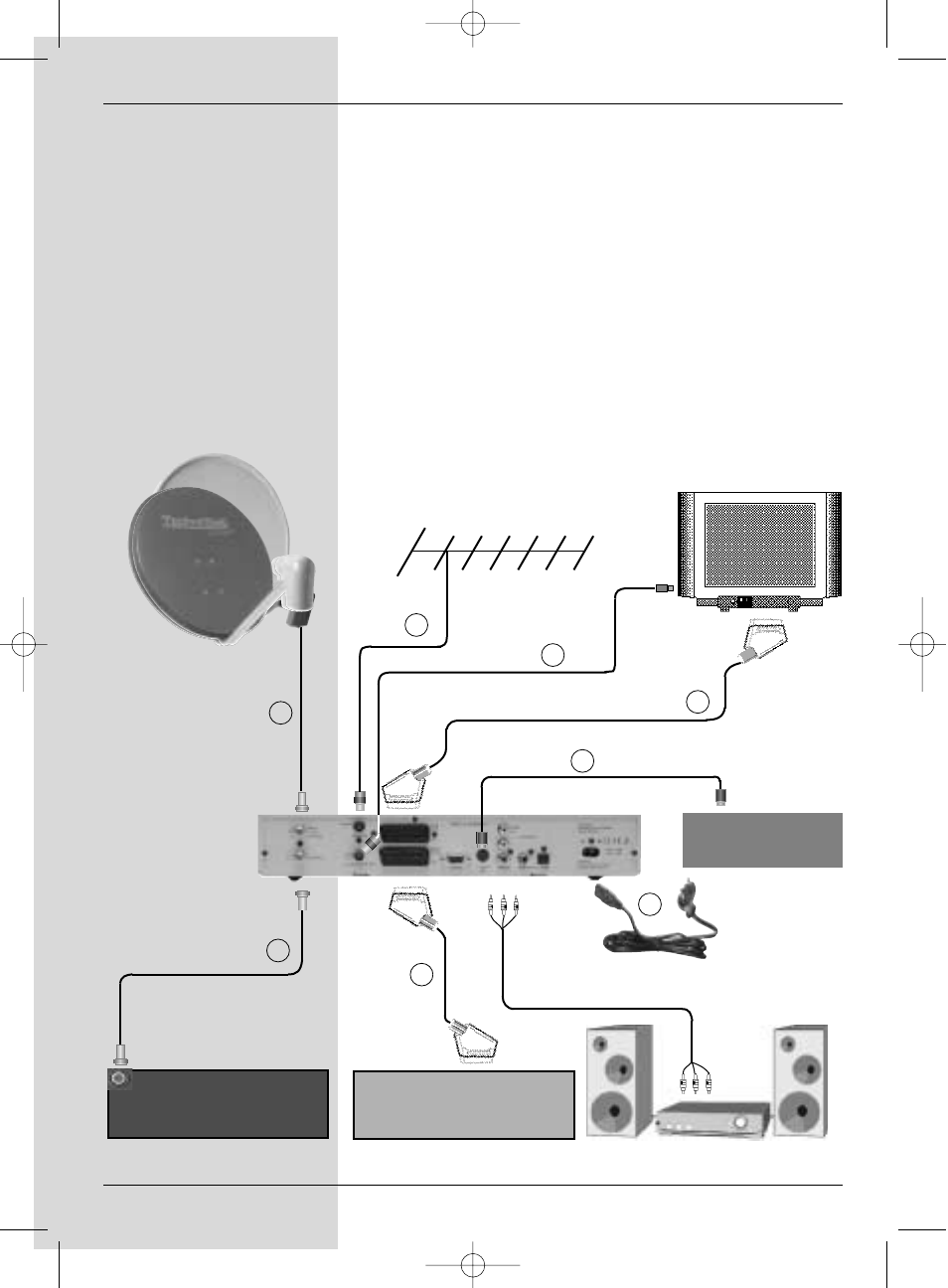

Connecting the DVB receiver to a satellite
installation
a. Mains power connection
b. Connection from the LNC to the
LNC input(LNB IN) of
the DVB receiver.
c. Connection from the
LNC output to the LNC input of an
analogue receiver.
d. Scart connection of the DVB receiver with the television
set.
e. Connection from the
HF output mto the antenna input
socket of the television set.
f. Connection from a terrestrial antenna to the
Terrest.
antenna input of the DVB receiver.
g. Scart connection from a video recorder to the
VCR Scart
socket of the DVB receiver.
h. Connection from the
S-Video output to the S-Video
input of another unit (e.g. beamer).
VCR
a
g
e
c
f
d
h
b
Analogue Receiver
e.g.
Beamer
