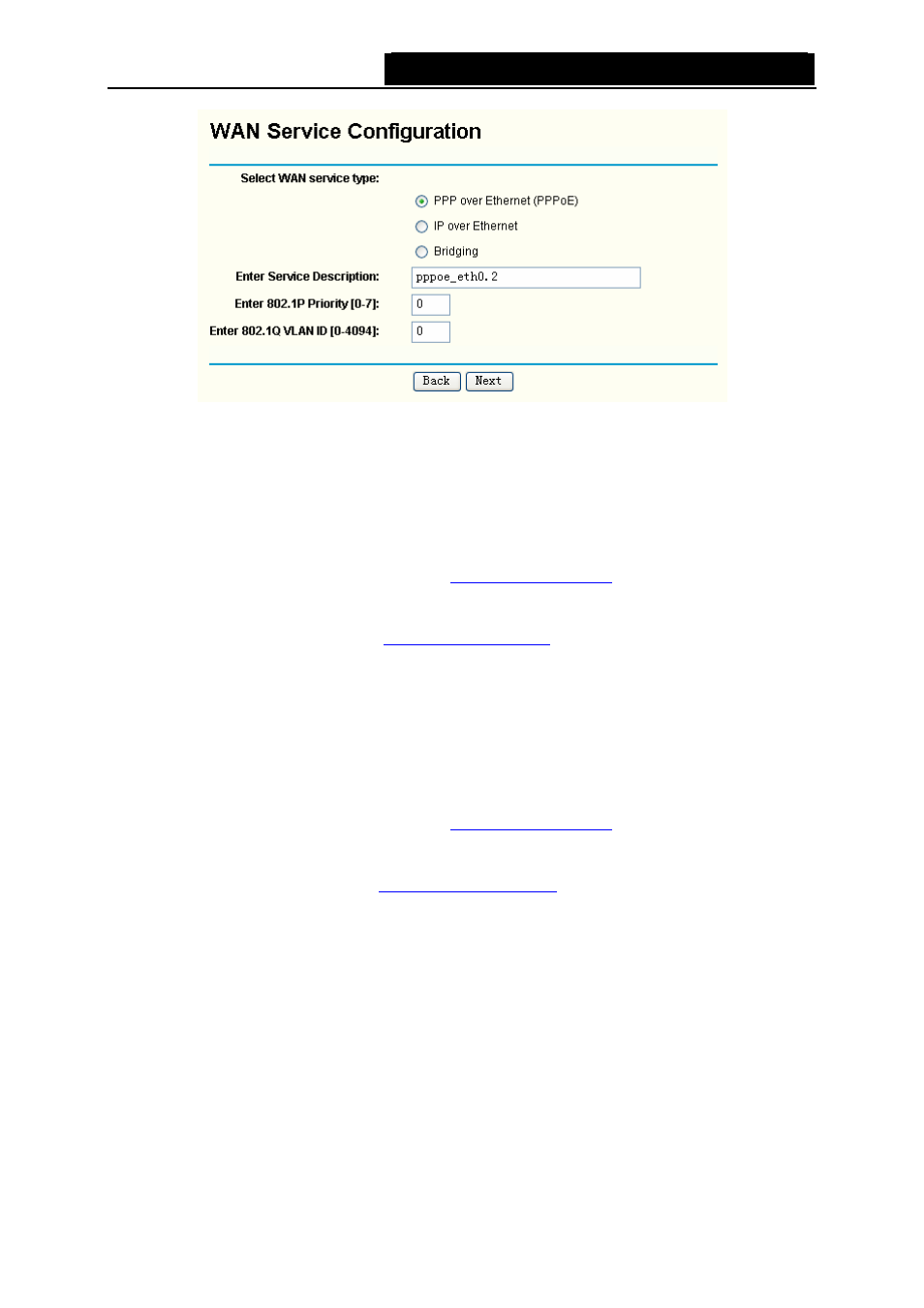

Figure 4-20
4.4.2.7 ETH-IPoE
If your ISP provides an IPoE connection and you want to use an ETH Interface, follow the steps
below to add a WAN service over a selected ETH interface:
1. Add a new ETH interface on the screen of
.
2. Click
the
Add
button on the screen Figure 4-8 and the next configuration is similar to IPoE
over ATM interface (see section
). The difference is that you have to
set the 802.1P Priority and 802.1Q VLAN ID on the screen of Figure 4-20 (corresponding
screen see Figure 4-10).
4.4.2.8 ETH-Bridge
If you want to adopt the Bridge service and you need to use an ETH Interface, follow the steps
below to add a WAN service over a selected ETH interface:
1. Add a new ETH interface on the screen of
.
2. Click
the
Add
button on the screen Figure 4-8 and the next configuration is similar to Bridge
over ATM interface (see section
). The difference is that you have to
set the 802.1P Priority and 802.1Q VLAN ID on the screen of Figure 4-20 (corresponding
screen see Figure 4-10).
)
Note:
The Bridge option only display on the screen of Figure 4-20 when VLAN MUX Mode is selected for
Connection Mode on the screen of Figure 4-6.
4.4.3 LAN
Choose “Advanced Setup”Æ“LAN”, and you will see the LAN screen (shown in Figure 4-21), the
section allows you to configure the Router’s LAN ports settings.
