TD-W8960N Wireless N ADSL2+ Modem Router User Guide

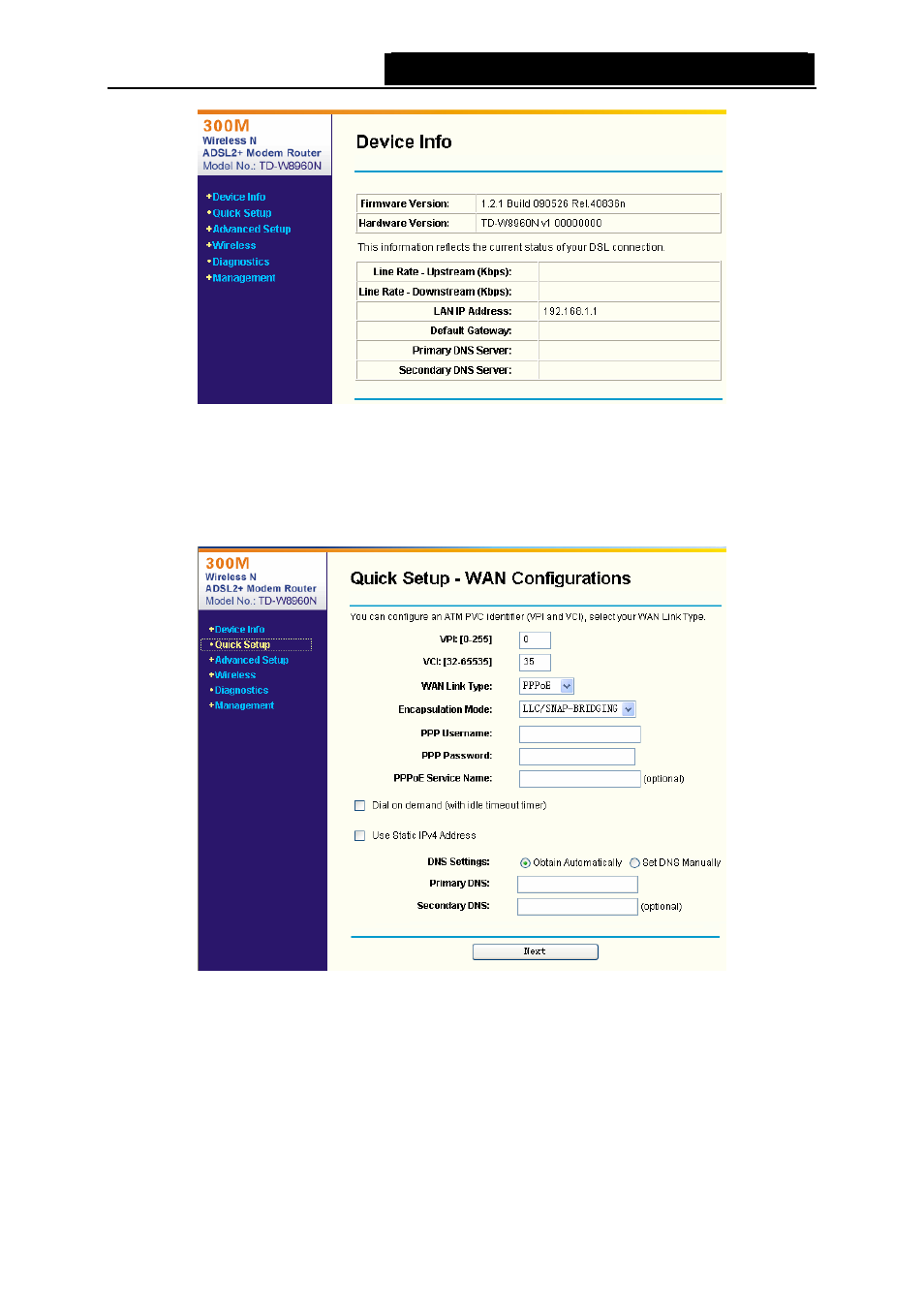

Figure 3-5
3. Change the VPI or VCI values which are used to define a unique path for your connection. If
you have been given specific settings for this to configuration, type in the correct
values assigned by your ISP.
We select PPPoE WAN Link Type (For example), enter the
Username and Password given by your ISP, and then click “Next”.
Figure 3-6
)
Note:
The Quick Setup Wizard will guide you to configure the WAN Service over ATM interface.
4. On the Wireless Configurations screen, we use the default SSID, select Network
Authentication (take WPA-PSK/WPA2-PSK for example), set a Pre-Shared Key, and then
click “Save” to continue.
11
