You need to install the optional PCS-323M1 H.323 MCU software.
This allows you:
• To hold a multipoint videoconference among up to ten sites over LAN.
• To show still images stored in a “Memory Stick”.
• To show the still images on the second TV monitor or projector.
• To pick up a large number of participants’ voices using up to two external
microphones.

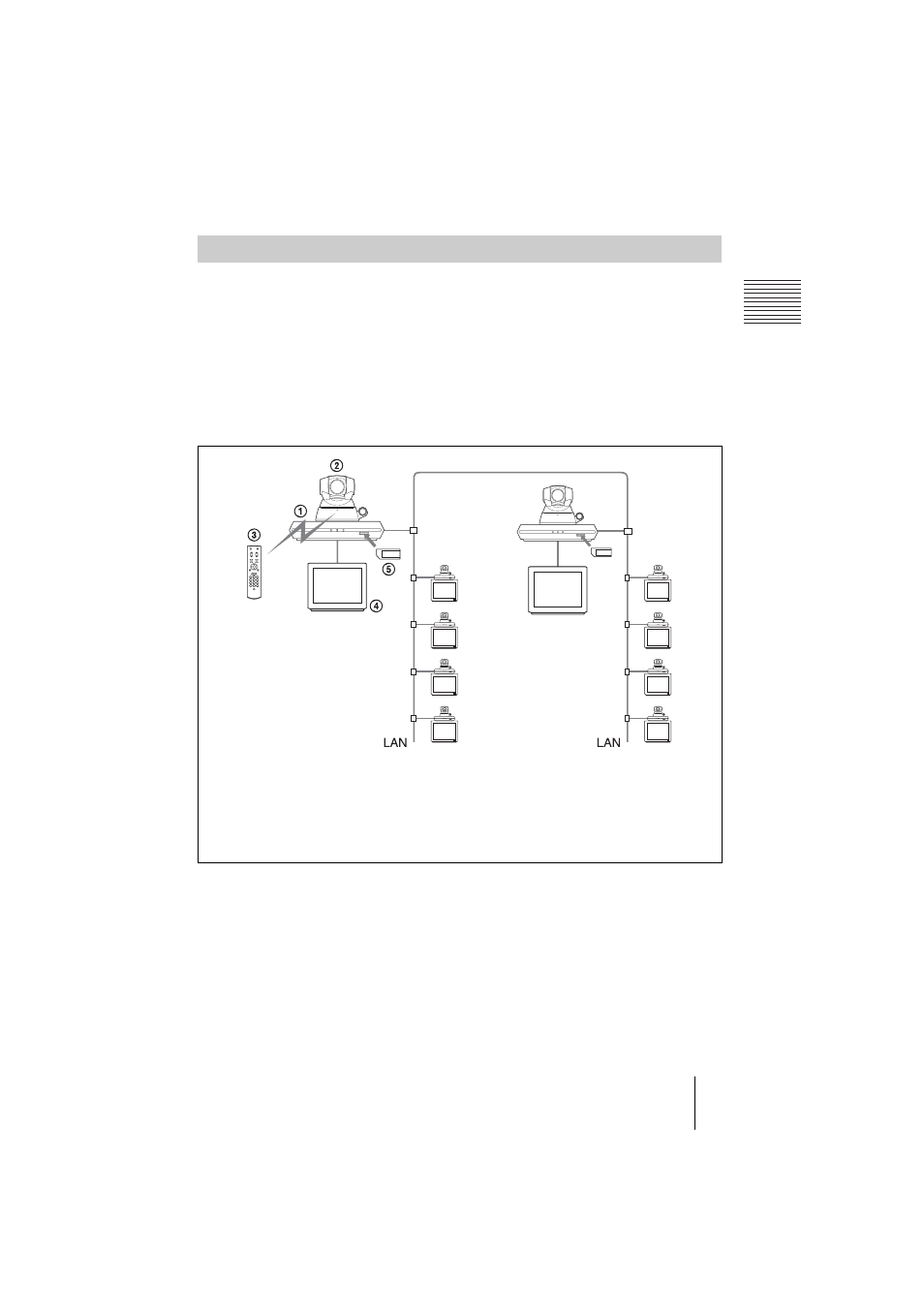

System configuration
System Configuration via a LAN for Multipoint Conference
ON LINE
POWER
LAN ALERT
ON LINE
POWER
LAN ALERT
ON LINE
POWER
LAN ALERT
ON LINE
POWER
LAN ALERT
ON LINE
POWER
LAN ALERT
ON LINE
POWER
LAN ALERT
ON LINE
POWER
LAN ALERT
ON LINE
POWER
LAN ALERT
ON LINE
POWER
LAN ALERT
ON LINE
POWER
LAN ALERT
1
PCS-P1/P1P Communication Terminal
2
PCS-C1/C1P Camera Unit
3
PCS-R1 Remote Commander
4
TV monitor (not supplied)
5
PCS-323M1 H.323 MCU software (not supplied)
