Connection Examples for a Multipoint Videoconference
PCS -1/1P
3-207-456-12 (1)
I:\3207456121PCS1WW\08OPE.FM masterpage:Left
Installing the optional PCS-323M1 H.323MCU software in two
Communication Terminals enables cascade connection, allowing you to
conduct a multipoint videoconference among up to ten points.
• Installing the PCS-323M1 H.323 MCU software into three or more Communication
Terminals does not allow cascade connection. Note that the third or later terminals
should set “Multipoint Mode” to “Off” in the Multipoint Setup menu or in the Setup
menu.
• For cascade connection, the “Split” and “Split (Fixed)” modes are not available. Only
the “Voice Activate” mode is available.

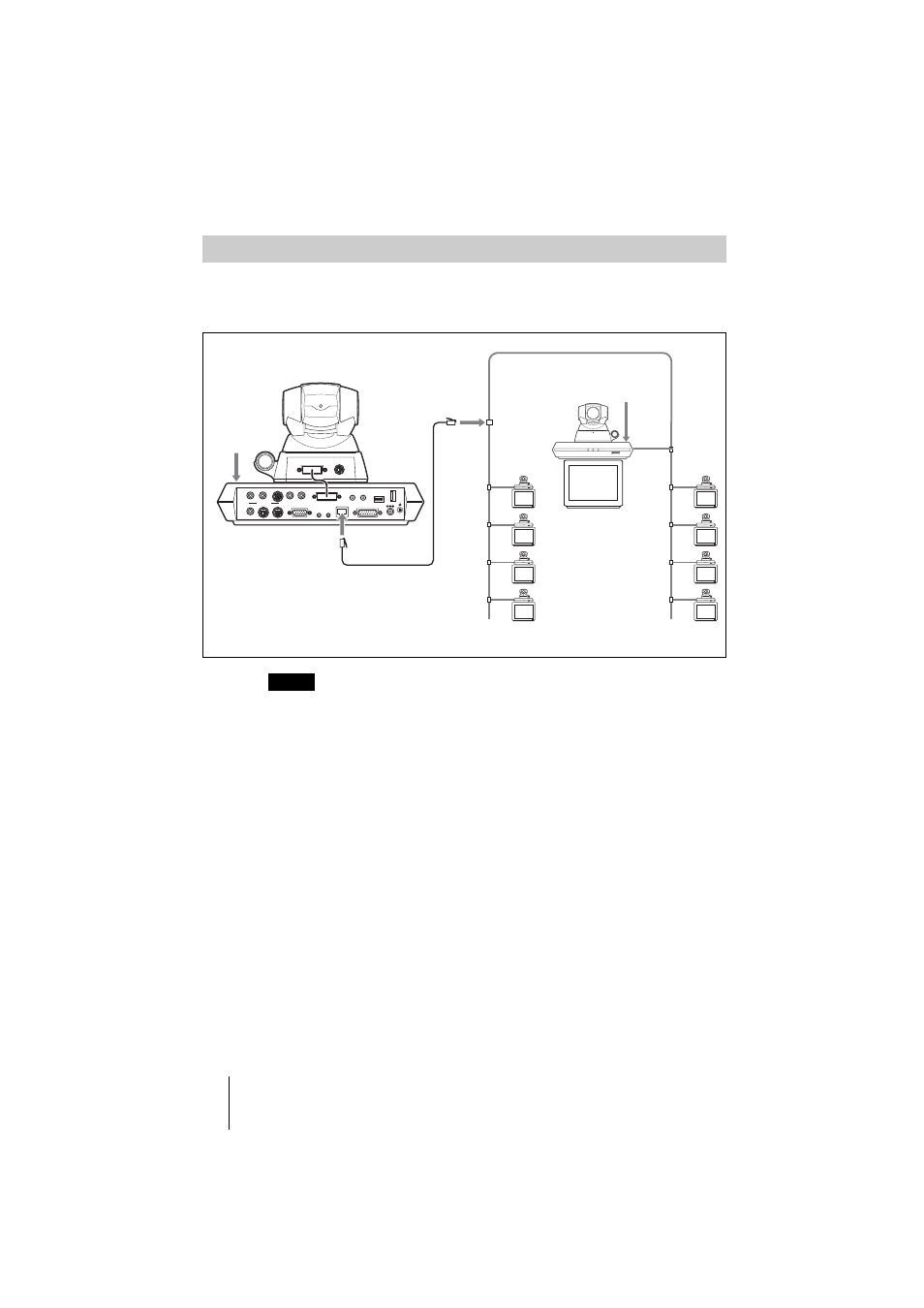

Using the Cascade Connection via LAN (Up to 10 Points)
Notes
DC 19.5V
AUDIO OUT AUDIO IN AUX1– VIDEO IN–AUX2 CAMERA UNIT MIC (PLUG IN POWER)
(MIXED)
AUX MAIN– MONITOR– SUB VIDEO OUT RGB OUT IR OUT
100BASE-TX 10BASE-T
1 2
1 2 ISDN UNIT WHITE
BOARD
DSB
TERMINAL VISCA OUT
ON LINE POWER LAN ALERT
ON LINE POWER LAN ALERT
ON LINE POWER LAN ALERT
ON LINE POWER LAN ALERT
ON LINE POWER LAN ALERT
ON LINE POWER LAN ALERT
ON LINE POWER LAN ALERT
ON LINE POWER LAN ALERT
ON LINE POWER LAN ALERT
LAN LAN
PCS-323M1
H.323 MCU
software
to 100BASE-TX/
10BASE-T
UTP cable (category 5,
straight) (not supplied)
to LAN
PCS-323M1 H.323
MCU software
