Chapter 2: Connecting your TV
Copyright © 2005 TOSHIBA CORPORATION. All rights reserved.
(E) 52/62HMX95
Connecting a personal computer (PC)
This connection allows you to view the image from a PC
on the TV screen. When connecting a PC to the TV, use an
analog RGB (15-pin) computer cable and a PC audio cable.
– To use a PC, set the monitor output resolution on the
PC before connecting it to the TV. The following signals
can be displayed:
• VGA: 640 × 480 @ 60Hz
• SVGA: 800 × 600 @ 60Hz
• XGA: 1024 × 768 @ 60Hz
Other formats or non-standard signals may not be
displayed correctly.
– To display the optimum picture, use the PC setting
feature (see “Using the PC setting feature” on page 95).

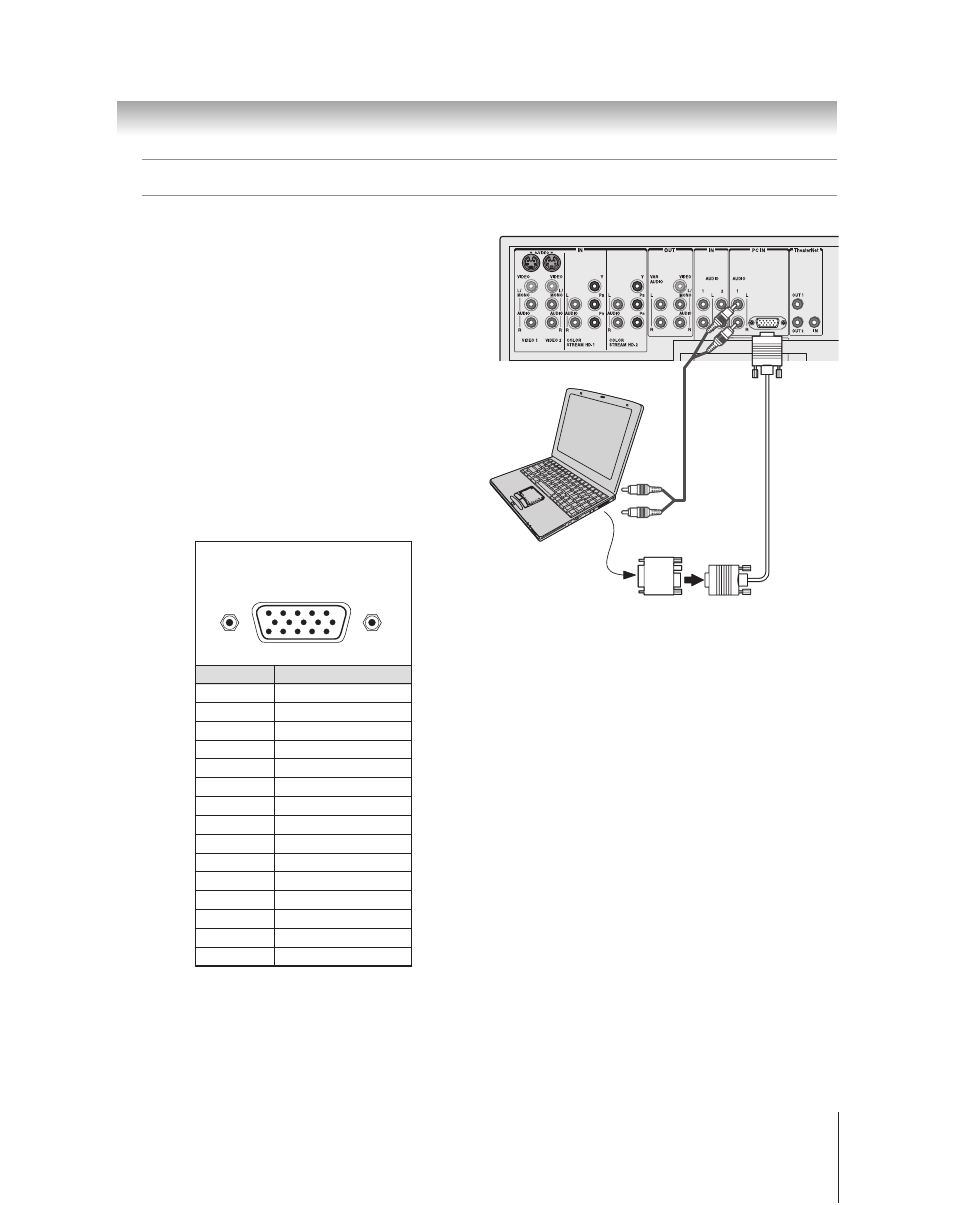

TV
Note:
• Some PC models cannot be connected to this TV.
• An adapter is not needed for computers with a DOS/V compatible
mini D-sub 15-pin terminal.
• Depending on the DVD’s title and the specifications of the PC on which
you are playing the DVD-Video, some scenes may be skipped or you
may not be able to pause during multi-angle scenes.
Conversion
adapter
(if necessary)
PC audio
cable
PC audio
output
Computer
11 15
6 10
1 5
Pin assignment for RGB/PC
terminal
Pin No. Signal name
1 R
2 G
3 B
4 NC (not connected)
5 NC
6 Ground
7 Ground
8 Ground
9 NC
10 Ground
11 NC
12 NC
13 H-sync
14 V-sync
15 NC
Signal names for mini D-sub 15-pin
connector
