Installing the device drivers Quatech SDS User’s Manual
Page 20 940-0183-154 October 2006

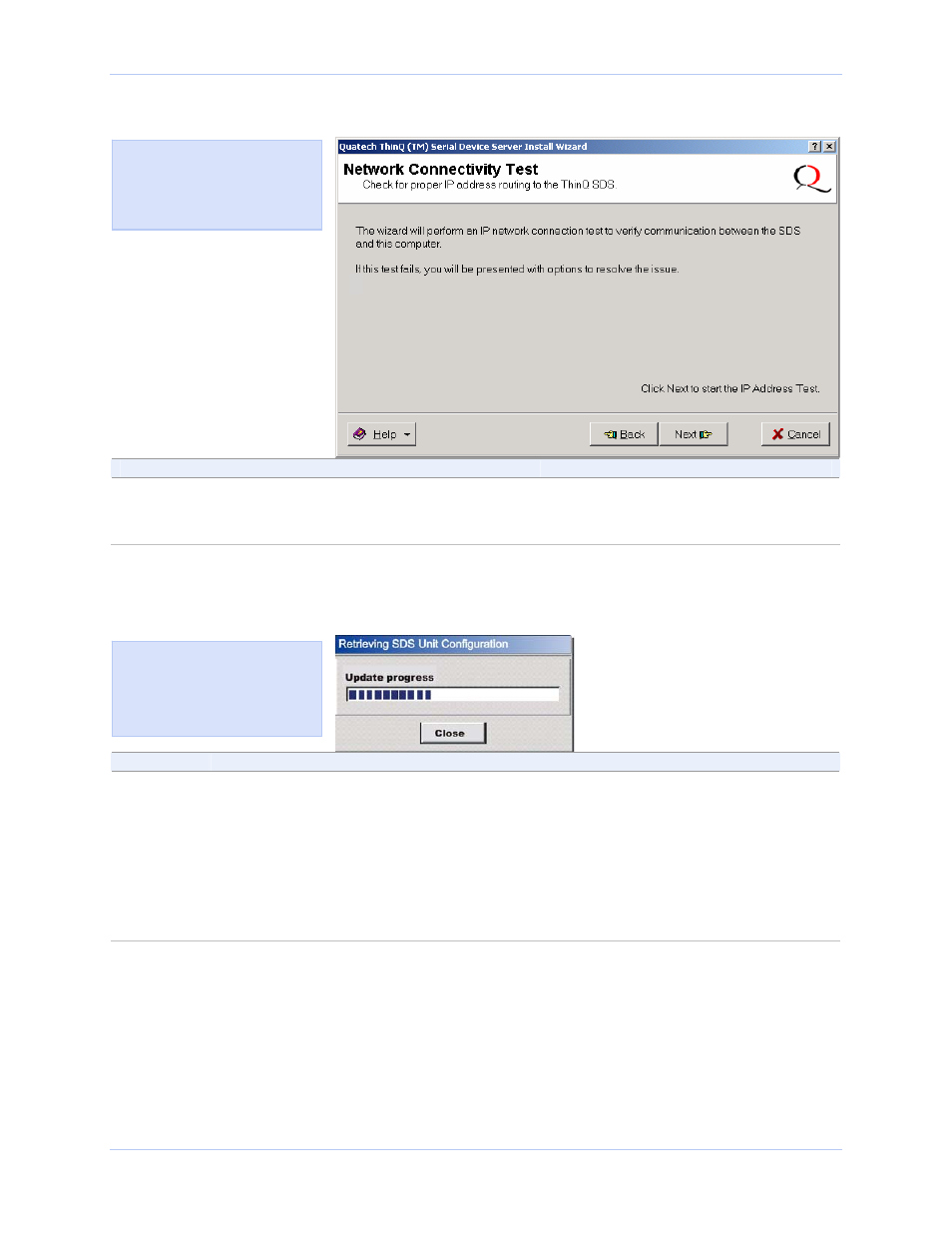

Figure 11 - Network Connectivity Test screen
Step Procedure Description
Step 14 Press the Next button to run the IP
connectivity test. The Retrieving Unit Configuration pop-
up box displays briefly.
Continue with □ Step 15.
Figure 12 - Retrieving Unit Configuration pop-up box
Step Procedure Description
Step 15 Depending on whether the test passes or
fails, one of two screens displays:
¾ TCP/IP Network Configuration
Parameters
¾ Network Connectivity Test Failed
If the test passes, the TCP/IP Network
Configuration Parameters screen
displays.
Continue with □ Step 16.
If the test fails, the Network Connectivity
Test Failed screen displays.
Go to □ Step 55.
Figure 13 shows the Retrieving
Unit Configuration pop-up box.
This box shows the configuration
retrieval progress and closes
when it is complete.
Figure 12 shows the Network
Connectivity Test prompt. This
prompt informs you that the
Wizard is ready to check the IP
connectivity of the SDS.
