Oki C 3400n User Manual
Page 91
C3400n User’s Guide
91
unlock belt_F5_08.eps
5.

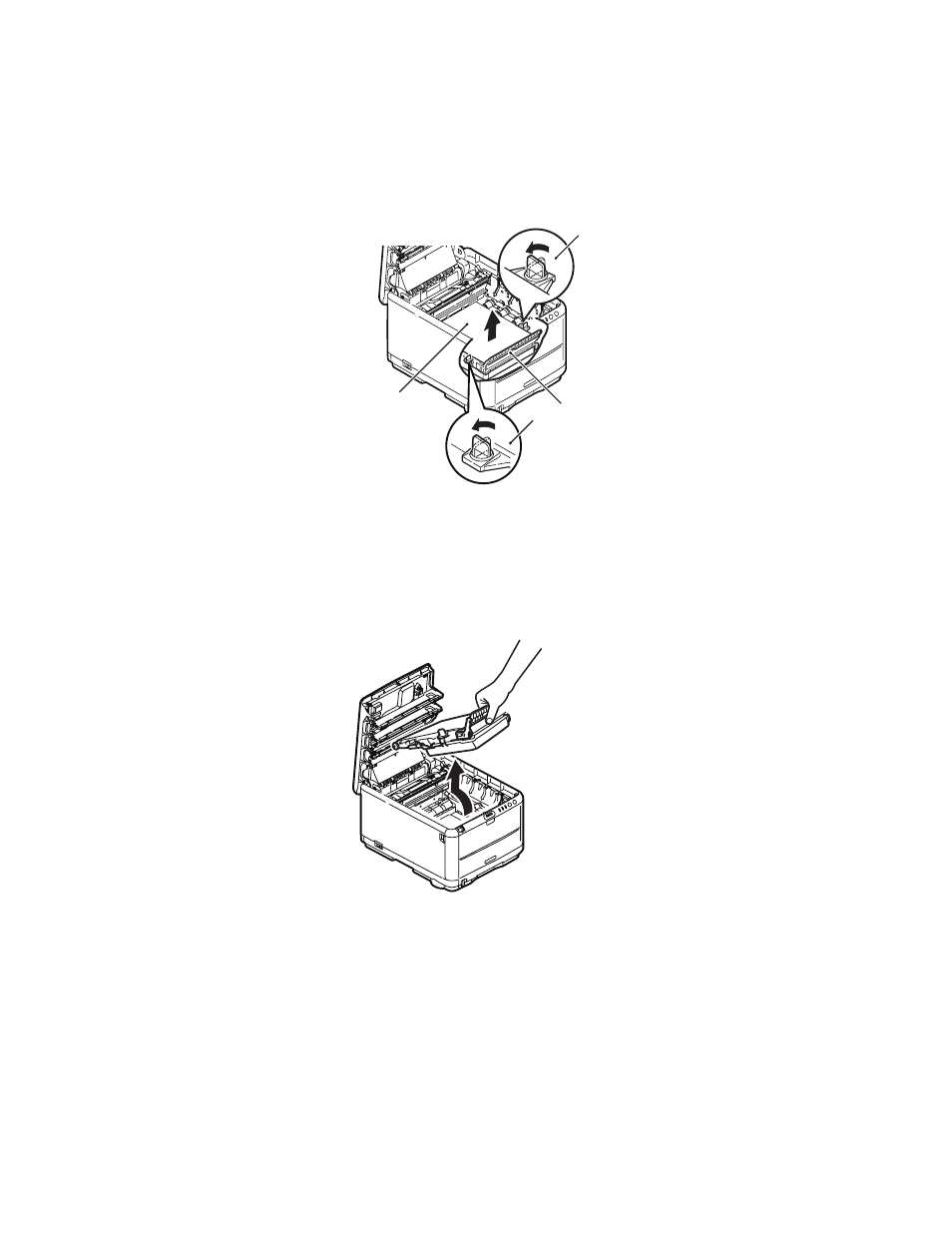

Turn the two fasteners (1) 90° to the left. This will release the
belt from the printer chassis.
6.
Pull the lifting bar (2) upwards so that belt tilts up towards the
front, and withdraw the belt unit from the printer.
belt coming out_Fig1_33.eps
7.
Lower the new belt unit into place, with the lifting bar at the front
and the drive gear towards the rear of the printer. Locate the
drive gear into the gear inside the printer by the rear left corner
of the unit, and lower the belt unit flat inside the printer.
