C3400n User’s Guide

101

3.

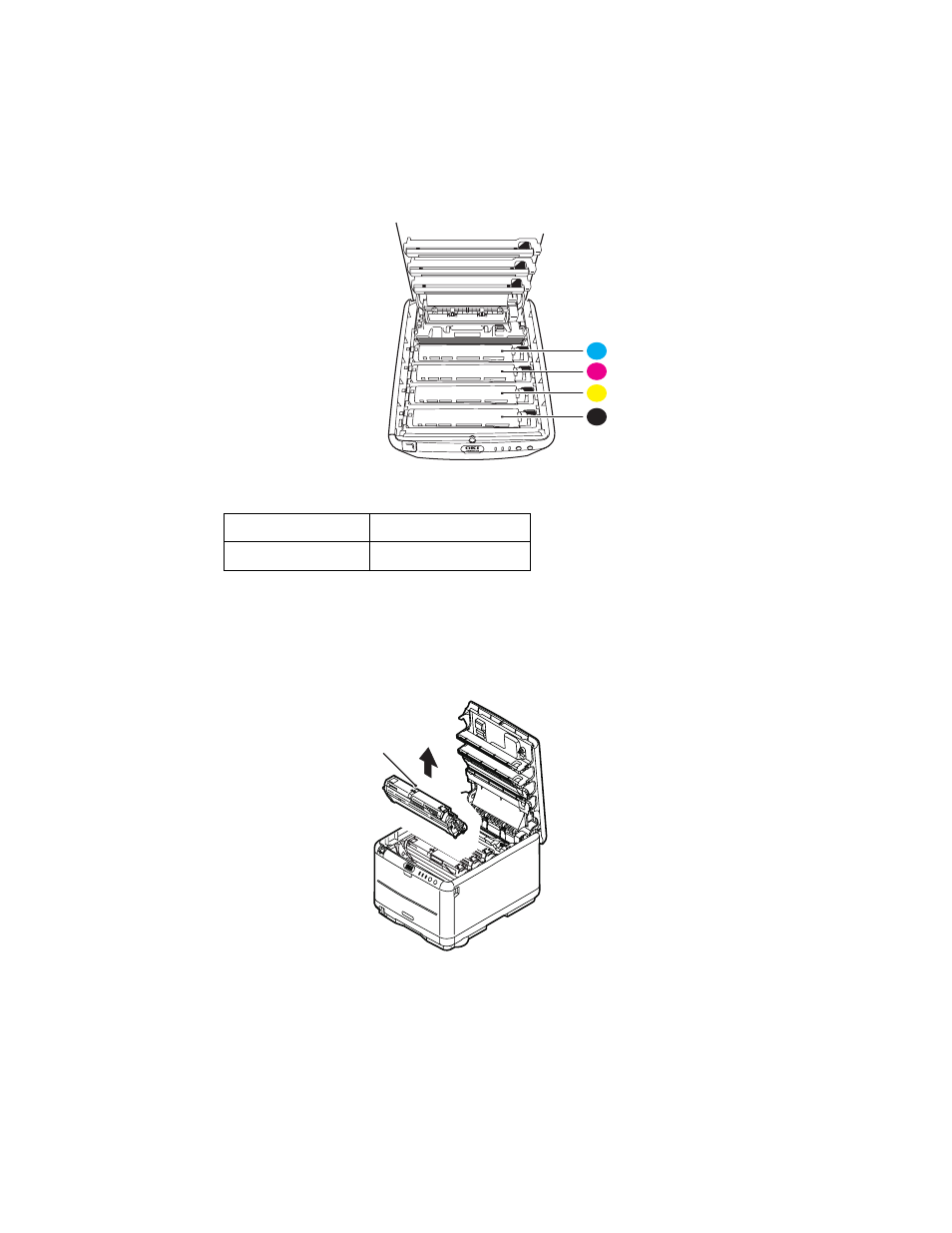

Note the positions of the 4 cartridges.

ID Positions_Fig1_04.eps

It will be necessary to remove the four image drums to gain
access to the paper path.

4.

Holding it by its top center, lift the cyan image drum, complete
with its toner cartridge (1), up and out of the printer.

ID going out_Fig1_12.eps

1. Cyan cartridge

2. Magenta cartridge

3. Yellow cartridge

4. Black cartridge

1
2
3

4

1
