8
Front & Rear Panels—Continued
A
DIGITAL IN OPTICAL 1, 2, 3 & COAXIAL
These optical and coaxial jacks can be used to con-
nect a CD or DVD player and other components
with digital audio outputs.
B
COMPONENT VIDEO
A DVD player, TV, or other component that sup-
ports component video can be connected here.
C
AM ANTENNA
These push terminals are for connecting an AM
antenna.
D
FM ANTENNA
This jack is for connecting an FM antenna.
E
MONITOR OUT
The S-Video or composite video output should be
connected to a video input on your TV or projector.
F
XM ANTENNA
This jack is for connecting an XM antenna, sold
separately (see page 37).
G
FRONT SPEAKERS B
These push terminals are for connecting speaker
set B.
H
This (Remote Interactive) jack can be con-
nected to the jack on another Onkyo compo-
nent. To use , you must make an analog audio
connection (RCA) between the AV receiver and the
other component, even if they are connected digi-
tally.
Note:
can only be used with Onkyo components.
I
CD IN
These analog inputs can be used to connect a CD
player with analog outputs.
J
TAPE IN/OUT
These analog inputs and outputs can be used to con-
nect a cassette recorder, MiniDisc recorder, or other
recorder with analog inputs and outputs.
K
VIDEO 1 IN/OUT & VIDEO 2 IN
The VIDEO 1 S-Video, composite video, and audio
inputs and outputs can be used to connect a VCR.
The VIDEO 2 S-Video, composite video, and audio
inputs can be used to connect another video source
(e.g., cable TV, satellite TV, or a set-top box).
L
DVD IN/MULTI CH INPUT
The FRONT, SURROUND, CENTER, and SUB-
WOOFER jacks can be used to connect a compo-
nent with an analog multichannel audio output, such
as a DVD player with a 5.1-channel analog output.
The S-Video or composite video input should be
connected to a video output on the DVD player.
M
SUBWOOFER PRE OUT
A powered subwoofer can be connected here.
N
FRONT SPEAKERS A, SURROUND
SPEAKERS, CENTER SPEAKER &
SURROUND BACK SPEAKERS
These terminal posts are for connecting speaker
set A.
O
AC OUTLET
This switched AC outlet can be used to supply
power to another component. The connector type
depends on the country in which you purchased
your AV receiver.

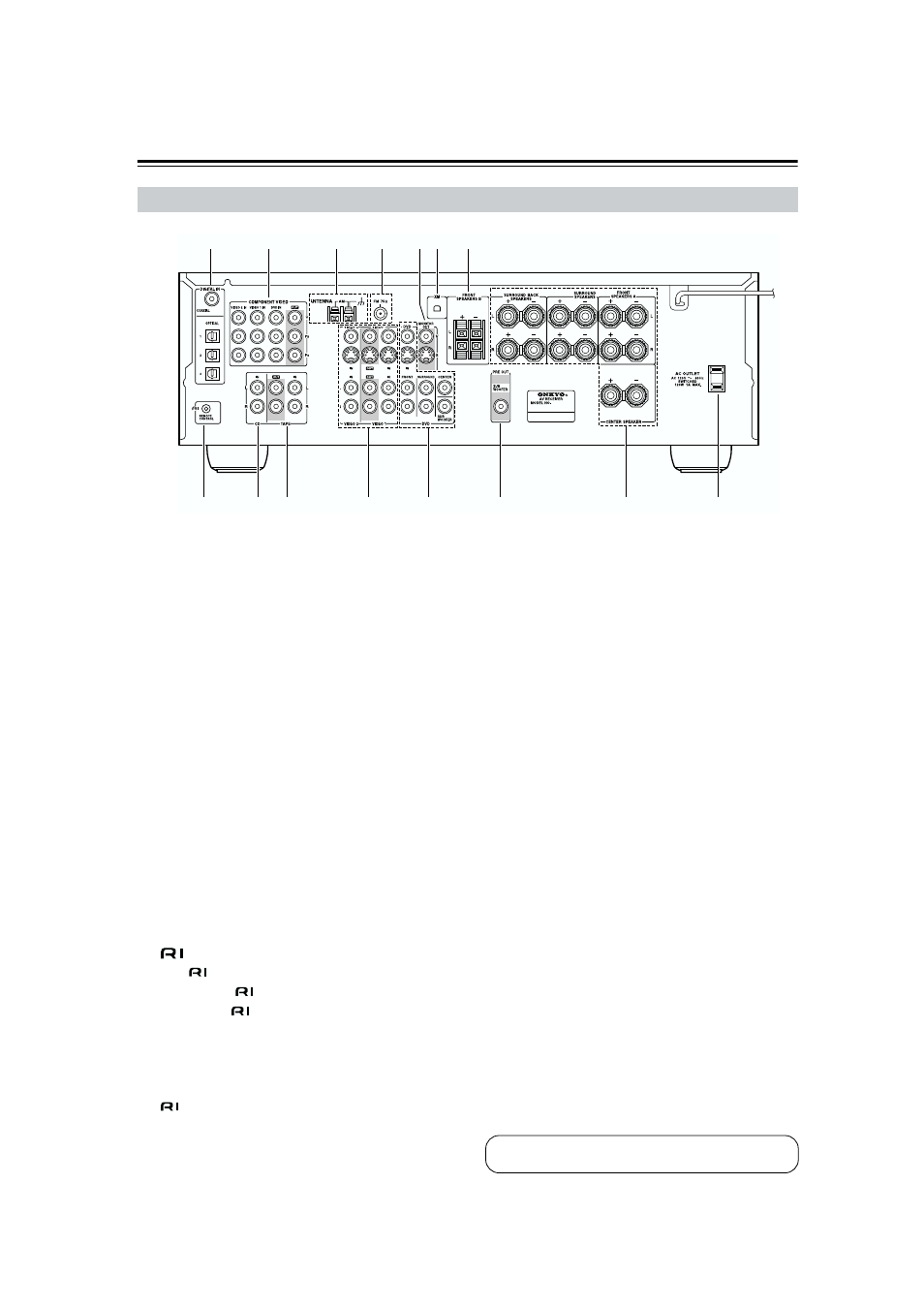

Rear Panel
8 9 J K L M O
1 B 3 4 7 6 5
N
See pages 15–29 for hookup information.
