34

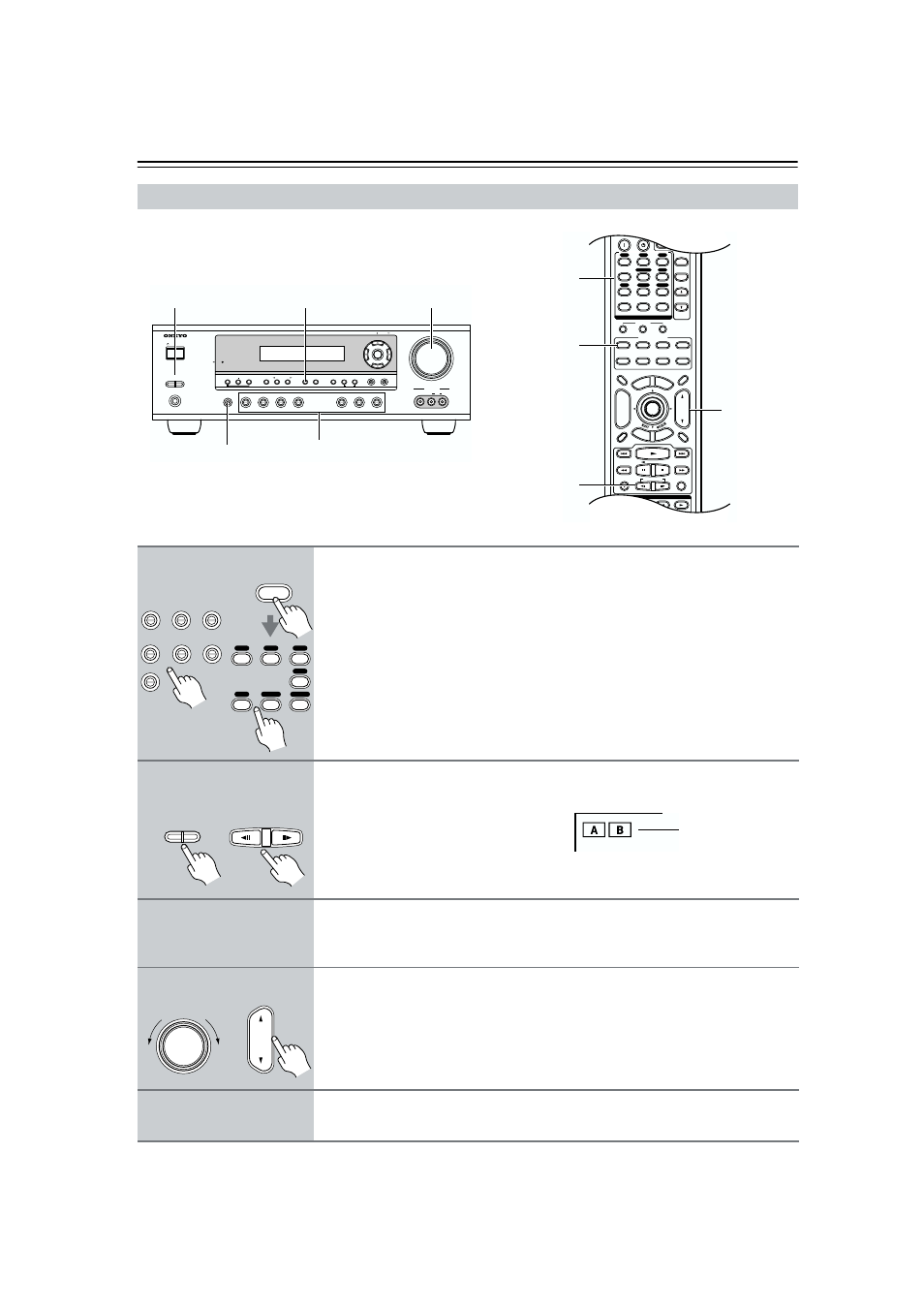

Playing Your AV Components
Basic AV Receiver Operation
TONE + STEREO LISTENING MODE DISPLAY DIGITAL INPUT DIMMER MEMORY TUNING MODE RETURN
TUNING / PRESET
ENTER
SETUP
STANDBY
STANDBY/ON
CLEAR
PHONES MULTl CH DVD VIDEO 1 VIDEO 2
VCR
VIDEO 3 TAPE TUNER CD VIDEO
VIDEO 3 INPUT
AUDIO L R
MASTER VOLUME
A SPEAKERS B
DISPLAY
MULTI CH
1
2 4
10 - - / - - - 11 12
REMOTE MODE
HDD RECEIVER
TAPE/AMP
DVD CD
SAT TV VCR CABLE
MD CDR
STEREO SURR
DIRECT
SUBTITLE AUDIO
ALLST
PLAY MODE REPEAT
RANDOM REC
SP A SP B
PLAYLIST
+
-
TV CH
TV VOL
ENTER
SET UP RET URN
TO P M ENU MEN U
VOL
+
-
CH
DISPLAY
PREV CH
DIMMER SLEEP
MUTING
LISTENING MODE
INPUT SELECTOR
3 2
MACRO
1
+10 0 CLEAR
1 2 3
4 5 6
7 8 9
INPUT I
ON STANDBY
TV
CD
V1 V2 V3
MULTI CH DVD
TAPE TUNER
DISC ALBUM
4
1
1
2
1 Use the AV receiver’s input selector buttons to select the input source.
To select the input source with the remote controller, press the
[RECEIVER] REMOTE MODE button, and then use the INPUT SELECTOR
buttons.
On the remote controller, the [V1], [V2], and [V3] buttons select the VIDEO 1,
VIDEO 2, and VIDEO 3 input sources respectively.
2 To turn the speakers on or off, use the AV receiver’s SPEAKERS [A] and
[B] buttons, or use the remote controller’s [SP A] and [SP B] buttons.
The A and B speaker indicators show
whether each speaker set is on or off.
Note that while speaker set B is on,
speaker set A is reduced to 5.1-channel
playback.
3 Start playback on the source component.
To watch a DVD or other video source, on your TV, select the video input that’s con-
nected to the AV receiver’s MONITOR OUT jack.
4 To adjust the volume, use the MASTER VOLUME control, or the remote
controller’s [VOL] button.
The volume can be set to MIN, 1 through 79, or MAX. Since the AV receiver is
designed for home theaters, it has a wide volume range for precise adjustment.
5 Select a listening mode and enjoy!
See “Using the Listening Modes” on page 44.
RECEIVER
DVD VIDEO 1 VIDEO 2
VCR
VIDEO 3 TAPE TUNER
CD
1 2 3
6
7 8 9
CD
V1 V2 V3
DVD
TAPE TUNER
Remote
controller
AV receiver
A SPEAKERS B
SP A SP B
Remote
controller
AV receiver
Indicators
VOL
MASTER VOLUME
Remote
controller
AV receiver
