37
Review Codes
ABS / Air Bag 2004 User Guide Chapter 5: Diagnostic Codes (Read / Clear Codes)
Review Codes
For some vehicles, the Review Codes option appears
on the Diagnostic Trouble Codes menu screen. This
option lets you review trouble codes after initially read-
ing them.
To review diagnostic trouble codes, follow these steps:

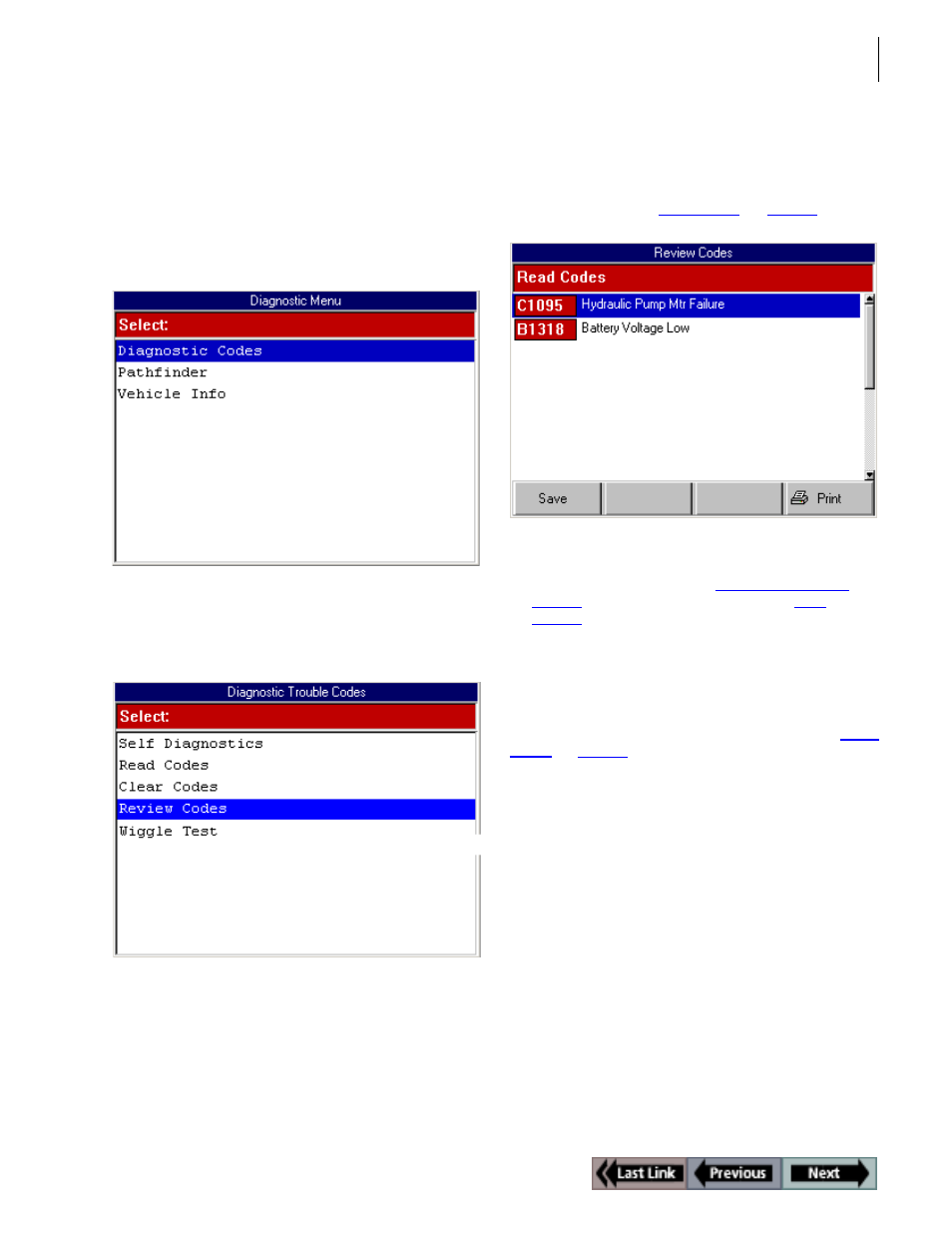

Figure 5.12: Diagnostic Menu Screen
1 Select Diagnostic Codes from the Diagnostic Menu
screen. This displays the Diagnostic Trouble Codes menu
screen.
Figure 5.13: Diagnostic Trouble Codes Menu Screen
2 From the Diagnostic Trouble Codes screen, select
Review Codes and press the ENTER key.
3 If another menu appears, select KOEO on Demand and
press the ENTER key. This displays the list of codes on
the Review Codes screen.
Note: If there are no codes to display, a message screen
states that the code library is empty. If necessary, read
the codes. Refer to “
Read Codes ” on page 34 .
Figure 5.14: Review Codes Screen
4 View the list and save or print it, if necessary.
To view a saved file, refer to “
Playback a Data File ” on
page 21 . For printing information, refer to “ Print ” on
page 26 .
5 Use the EXIT key to return to previous screens.
Note: After reviewing the codes, if necessary, clear the
codes from the vehicle and the ABS / Air Bag software. Use
any instructions that were provided when reading the codes.
For some vehicles the Diagnostic Trouble Codes menu
screen may have a Clear Codes option. If so, refer to “
Clear
Codes ” on page 38 . If necessary, consult the manufacturer’s
service manual for the correct “clear code” method.
