17
Step 2: Connect the Cable
ABS / Air Bag 2004 User Guide Chapter 2: Start-up Steps
Non-OBD II Vehicle Cable Connection
This type of connection generally requires the DB25
Power cable (3305-72) or another vehicle-specific
cable.
Note: Some non-ODB II vehicles may require the System
Smart 25-pin cable.
Note: For a description of the cables, refer to “ Cables ” on
page 3 .
To connect the DB25 Power cable or another similar
cable, follow these steps:

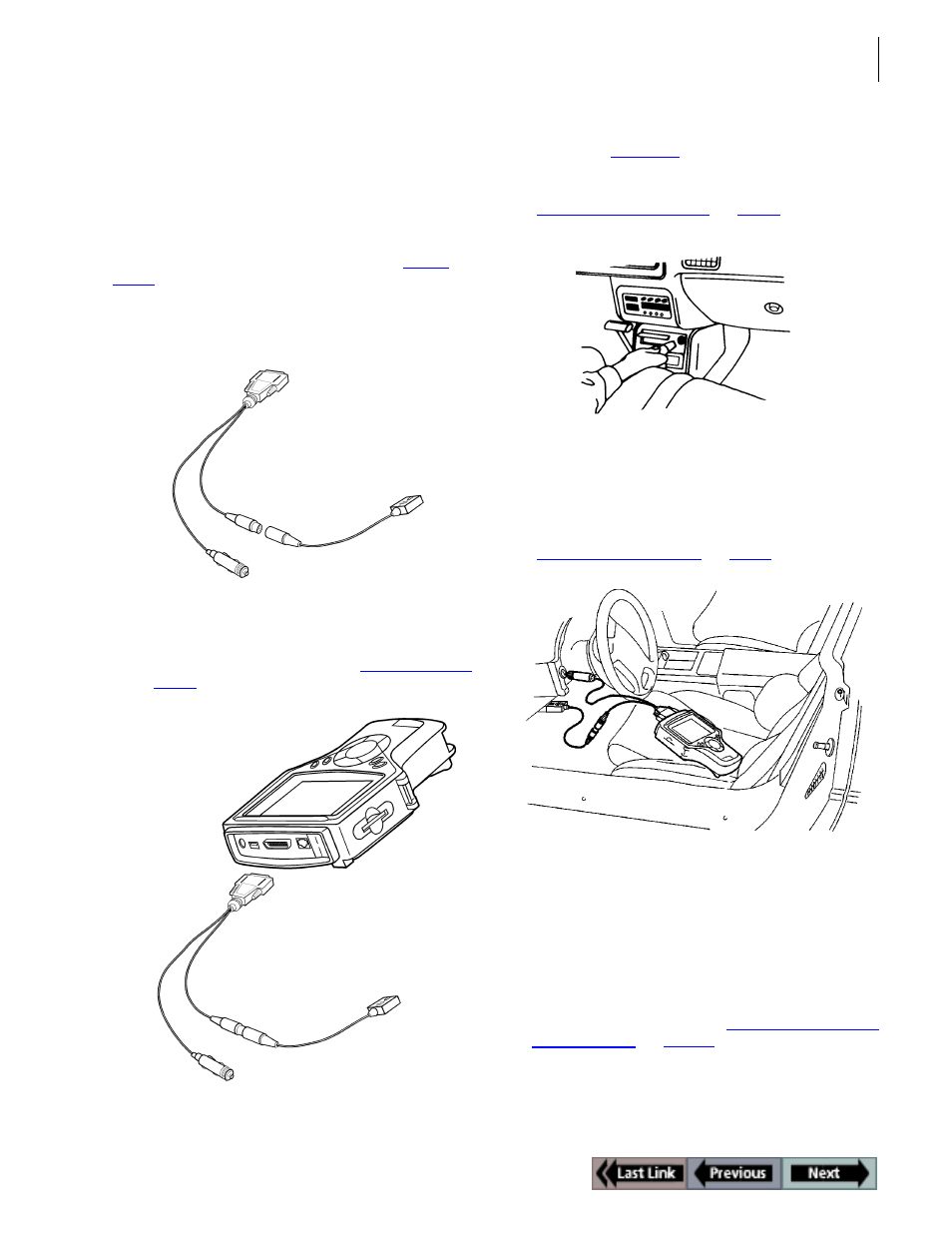

Figure 2.10: Adapter Connection to DB25 Power Cable
1 Locate the required adapter and connect the adapter’s
8-pin connector to the cable’s 8-pin connector. For a
description of the adapters, refer to “
Vehicle Adapters ”
on page 4 .
Figure 2.11: DB25 Power Cable Connection to NGIS Tool
2 Connect the cable’s 25-pin connector to the DB25 port on
the top of the NGIS tool. Finger tighten the connecting
screws (see
Figure 2.11 ).
Note: Extension cable (3305-71) can be used between
the NGIS tool and the DB25 Power cable. Refer to
“
Extension Cable (3305-71) ” on page 3 .
Figure 2.12: DB25 Power Cable Connection to Cigarette Lighter
Receptacle
3 Connect the cables’s power plug into the vehicle’s ciga-
rette lighter receptacle.
Note: Battery Adapter (212638) can be used to connect
the cable’s power plug to the vehicle’s battery. Refer to
“
Battery Adapter (212638) ” on page 5 .
Figure 2.13: DB25 Power Cable Connection to Vehicle’s DLC
4 Connect the adapter’s connector to the vehicle’s DLC.
Note: The vehicle’s DLC is not always located under the
dash as shown above.
Note: Some adapters may have more than one connec-
tor or may have test leads instead of a connector.
Whatever the case, make the required connections to the
vehicle’s DLC.
5 Continue with the next section, “ Step 3: Select the Diag-
nostic Function ” on page 18 .
