3
Equipment Descriptions
ABS / Air Bag 2004 User Guide Chapter 1: General Information
Cables
The cable used to connect the NGIS tool to the data link
connector (DLC) of a vehicle’s electronic control unit
(ECU) depends on the type of vehicle being tested. The
two most common cables are shown below. They are
the System Smart 25-pin cable (3305-73) and the
DB25 power cable (3305-72). An optional extension
cable may also be used.
Note: The Air Bag / ABS software tells you which cable must
be used for the vehicle you are testing. For details, refer to
“
Step 1: Enter the Vehicle Information ” on page 13 .

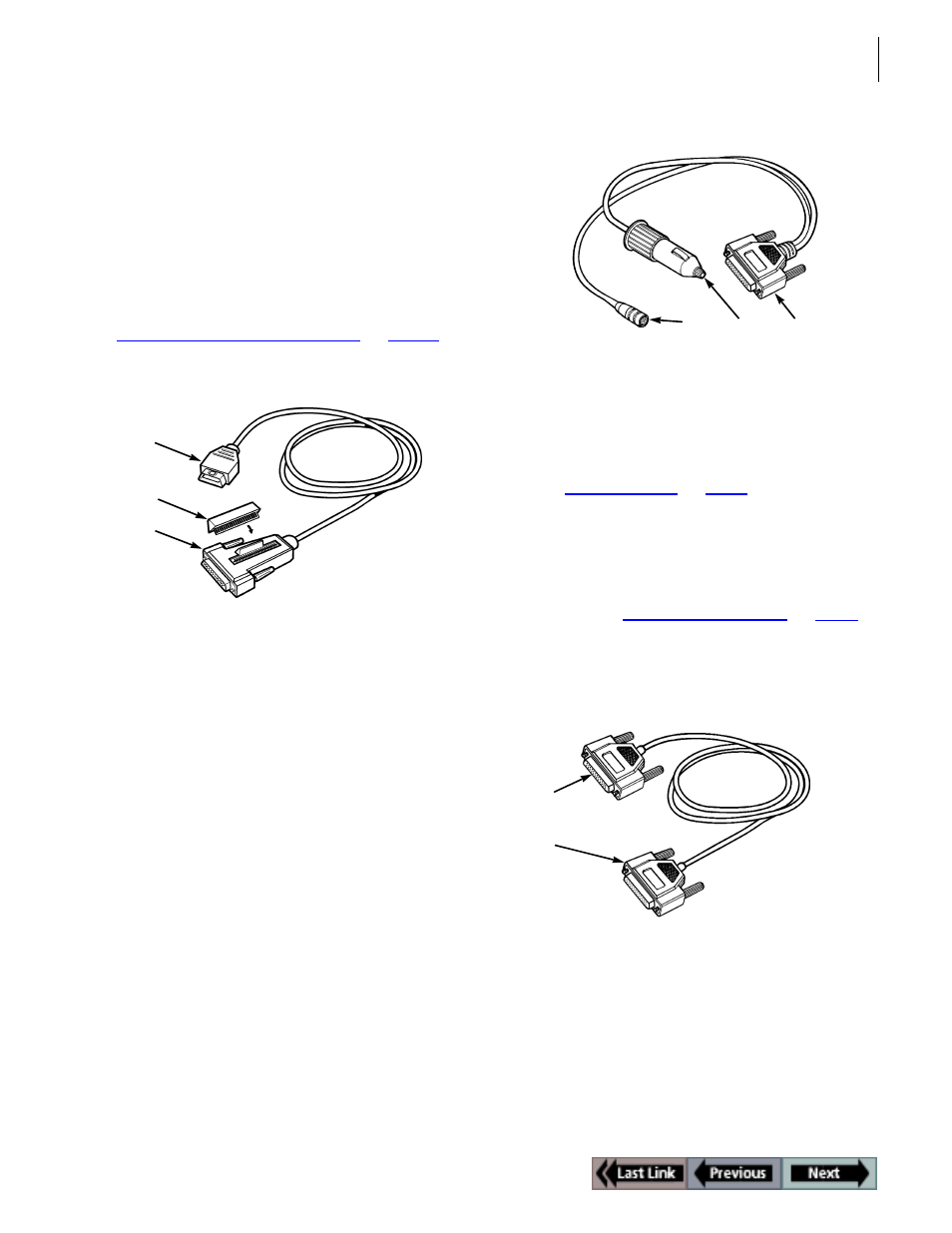

System Smart 25-Pin Cable (3305-73)
Figure 1.3: System Smart 25-Pin Cable
The System Smart 25-pin cable is for On Board Diag-
nostic II (OBD ll) vehicles. The cable has the following
components:
Item 1 J-1962 Connector - connects to the data link connec-
tor (DLC) of the vehicle’s electronic control unit.
Item 2 System Smart Insert (SSI) - inserts into the port on
the top of the 25-pin connector. There are several
SSIs available (some are 3306-11, 3306-15, 3306-
22). The SSI used depends on the vehicle being
tested.
Item 3 25-pin Male Connector - connects to the DB25 port
on the top of the NGIS tool. The 25-pin connector has
a port on the top of it for inserting a System Smart
Insert (SSI).
DB25 Power Cable (3305-72)
Figure 1.4: DB25 Power Cable
The DB25 power cable is for non-OBD ll vehicles and
some OBD II vehicles. The cable has the following
components:
Item 1 8-Pin Adapter Connector - connects to the correct
adapter for the vehicle being tested. (Refer to
“
Vehicle Adapters ” on page 4 .) The adapter then
connects to the data link connector (DLC) of the
vehicle’s electronic control unit.
Item 2 Power Plug - inserts into the vehicle’s cigarette
lighter receptacle. An optional Battery Adapter
(212638) can be used to connect to the vehicle’s
battery instead of the cigarette lighter receptacle.
(Refer to “
Battery Adapter (212638) ” on page 5 .)
Item 3 25-pin Male Connector - connects to the DB25 port
on the top of the NGIS tool.
Extension Cable (3305-71)
Figure 1.5: Optional Extension Cable
An optional extension cable (3305-71) is available. The
cable has the following connectors:
Item 1 25-pin Female Connector - connects to the 25-pin
male connector on the System Smart 25-pin cable,
the DB25 power cable, or any other 25-pin cable
being used.
Item 2 25-pin Male Connector - connects to the DB25 port
on the top of the NGIS tool.
1
2
3
1 2 3
1
2
