27
OFF ON
STANDBY/ON
STANDBY
MASTER VOLUME
POWER DISPLAY DVD VIDEO 1 VIDEO 2 VIDEO 3 VIDEO 4 VIDEO 5 TAPE 1 TAPE 2 AM FM PHONO C D OPEN/CLOSE
ZONE 2 ( ) GRN REC ( ) RED
AV RECEIVER TX-DS 989
OPEN/CLOSE REC
AUDIO MUTING
DISC TRACK
DVD CD
PH TUN T2 T1
V1
STEREO
1 2 3
6 5 4
7
+ 10 0 ENT
8 9
SURROUND THX DSP
LEVEL + CH SEL Re-EQ
LEVEL – DIMMER
HOME THEATER CONTROLLER RC-390M
LATE NIGHT
DIRECT DSP
V2 V3 V –
SEND/LEARN
indicator
POWER ON
AUDIO MODE
STANDBY indicator
STANDBY/ON
POWER
POWER
STNBY

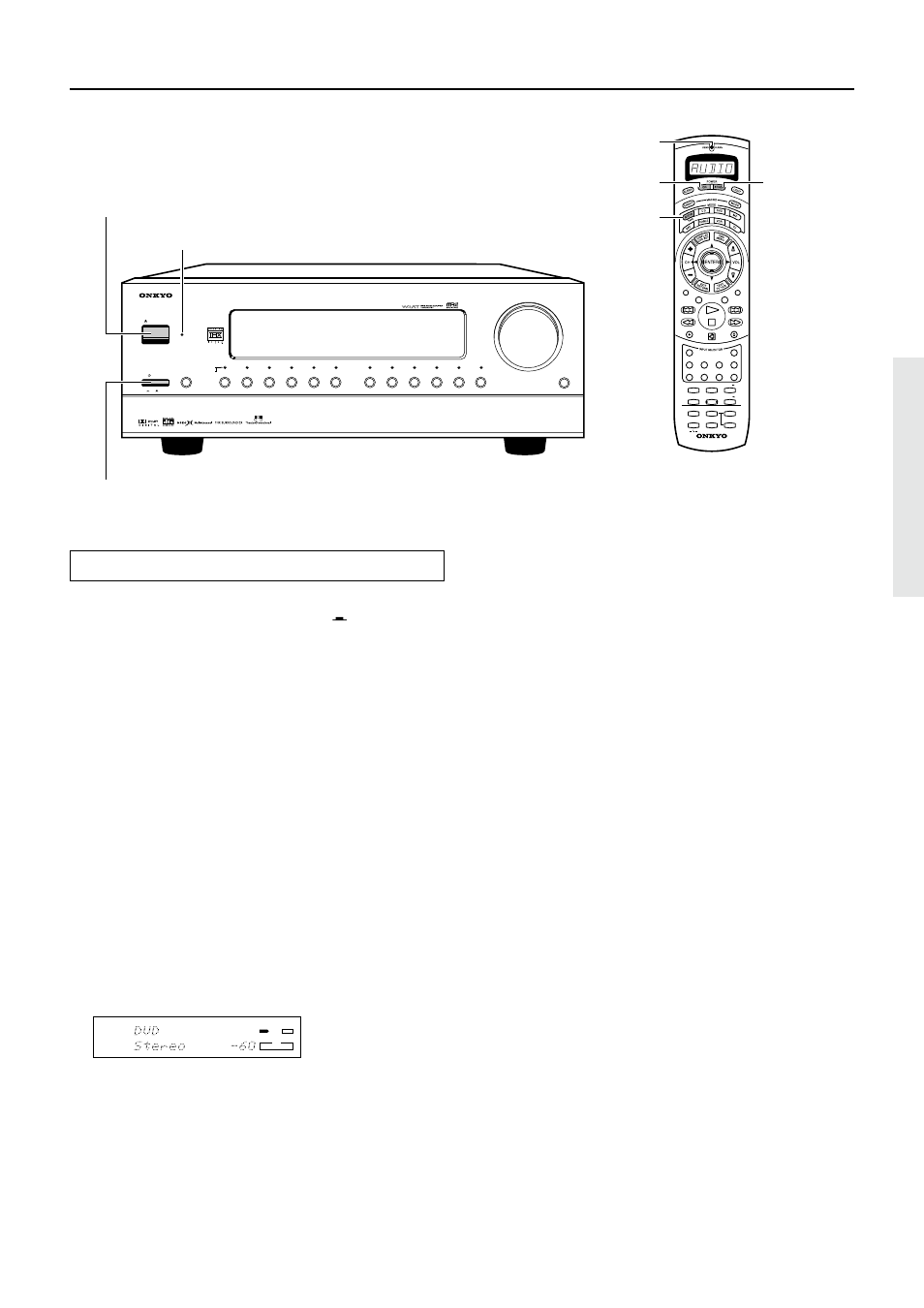

Connecting the power
Connecting the power
• The TX-DS989 is shipped with the main power
(POWER) switch in the on position ( ON ). When the
power cord is plugged in for the first time, the TX-
DS989 will automatically enter the standby state and
the STANDBY indicator will light (same condition
after step 2 below).
• Before you plug in the TX-DS989, confirm that all
connections have been made properly.
• Turning on the power may cause a momentary power surge,
which might interfere with other electrical equipment on the
same circuit, such as computers. If this happens, use a wall
outlet on a different circuit.
1. Plug the power cord into an AC wall outlet.
2. Press the POWER switch to set the TX-DS989
to standby state.
The STANDBY indicator will light up.
3. Press the STANDBY/ON button to turn on the
TX-DS989. The display will light up and the
STANDBY indicator will turn off.
Display
DVD
VIDEO COMPONENT
ANALO G
1
INPUT
If you press the STANDBY/ON button again, the receiver
returns to Standby mode.
Turning the power on from the remote controller:
Before you can use the remote controller, you must perform steps
1 and 2 above and place the TX-DS989 in the standby state.
1. Press the AUDIO MODE button.
2. Press the POWER ON button to turn on the TX-
DS989 (take it out of the standby state).
• To return the TX-DS989 to the standby state, press the
POWER STNBY button.
