Installation
26 Runco CL-410 and CL-420 Owner’s Operating Manual
Connecting to the 12-Volt
Trigger Output
If your home theater contains a retractable screen or other, 12-Volt trigger-activated
equipment, connect it to the 12-volt trigger output on the CL-410/CL-420 as shown in
Figure 3-12.

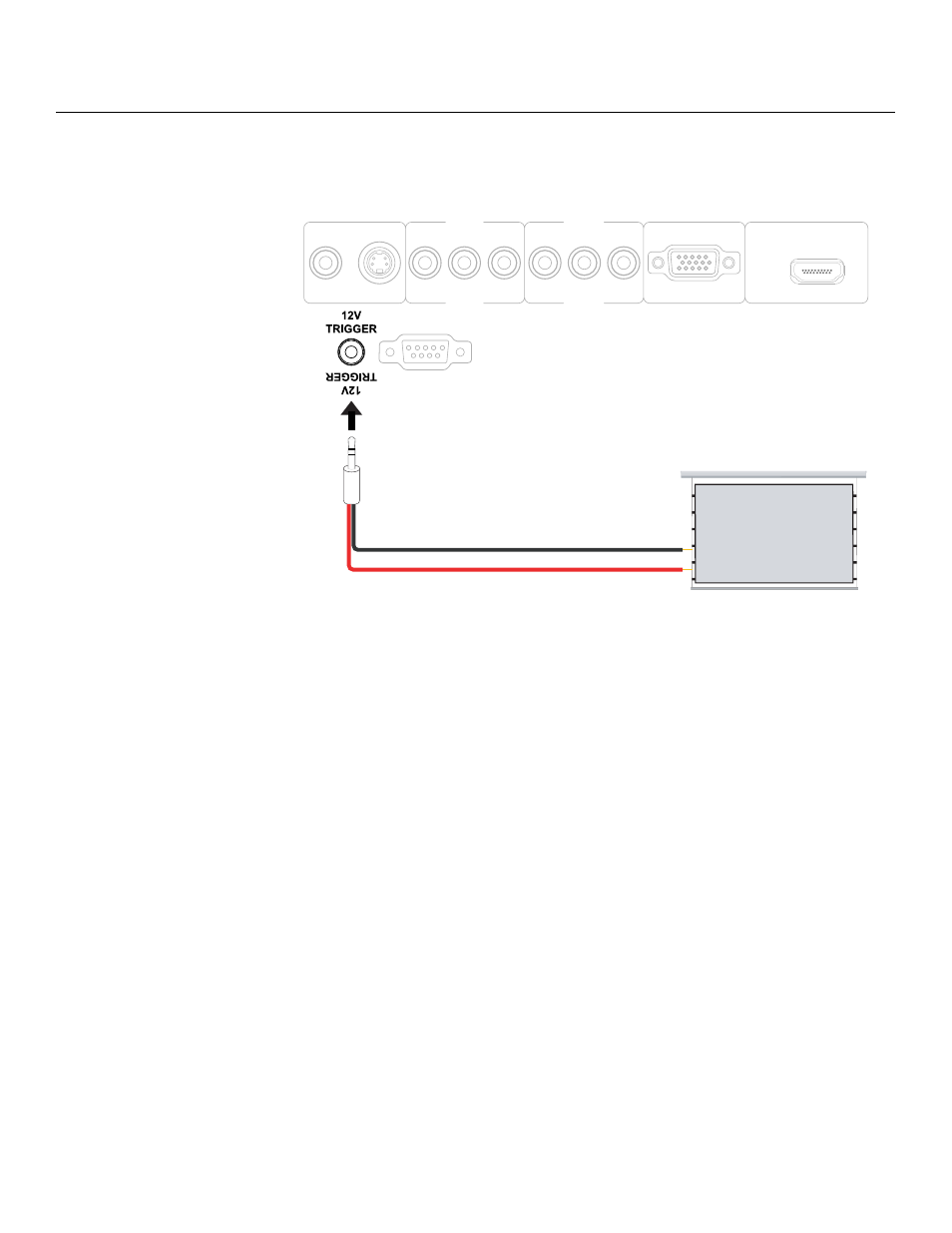

Figure 3-12. Connecting the 12-Volt Trigger Output
➤
S-VIDEO VIDEO P R / C R P B / C B Y P R / C R P B / C B Y RGB-HD HDMI
S-VIDEO VIDEO P R / C R P B / C B Y P R / C R P B / C B Y RGB-HD HDMI
COMP 1 COMP 2
COMP 2 COMP 1
RS-232
RS-232
Retractable Screen
or other, 12-volt
trigger-activated equipment
Red = +12V (Tip)
Black = Ground (Sleeve)
3.5-mm
mini plug
