Installation
Runco CL-410 and CL-420 Owner’s Operating Manual 25
RS-232 Controller
Connection Use a standard, 9-pin RS-232 cable to connect a PC or home theater control/automation
system (if present) to the RS-232 port on the CL-410/CL-420; see Figure 3-11.
For more information about using this connection, refer to Serial Communications on
page 53.

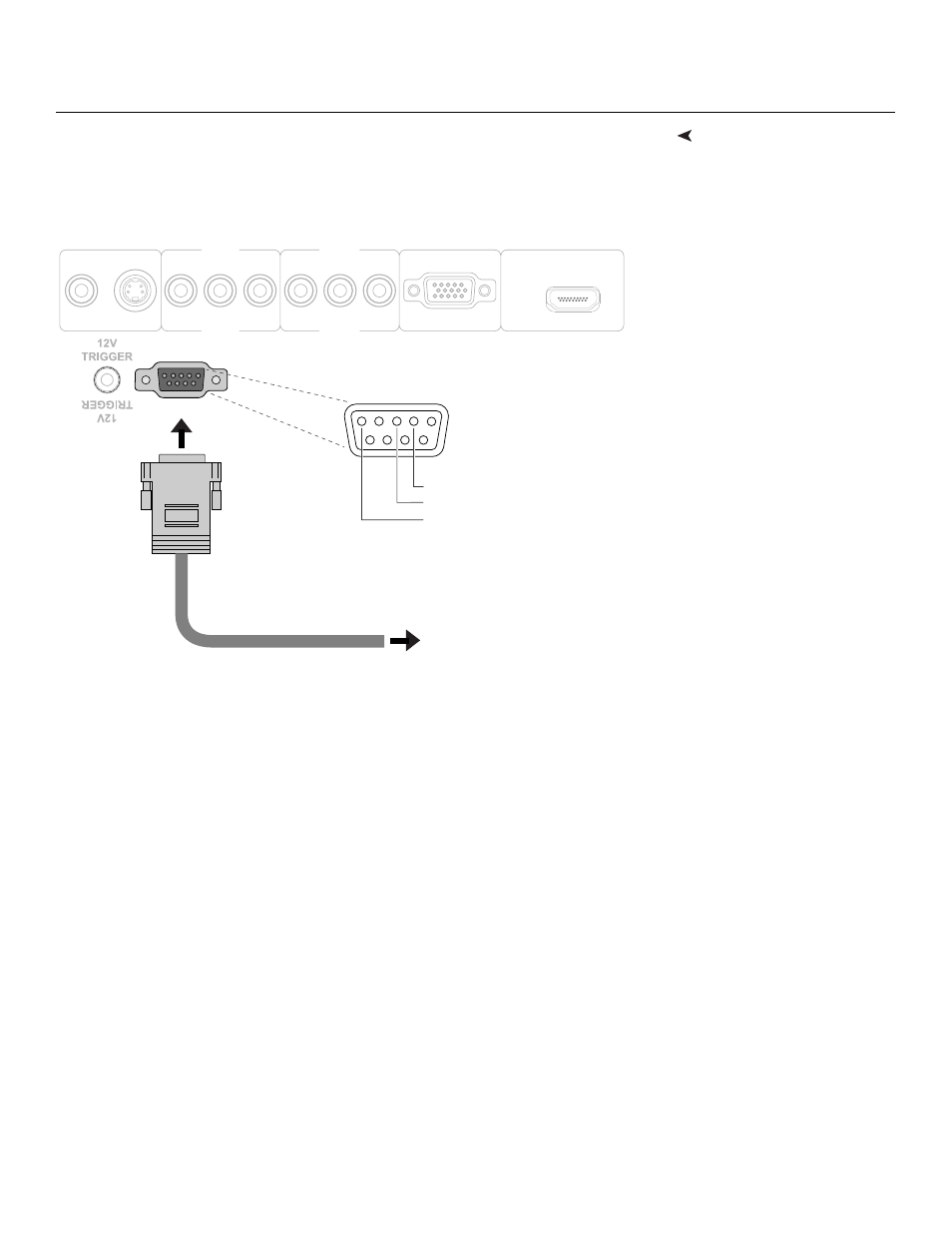

Figure 3-11. RS-232 Control System Connection
S-VIDEO VIDEO P R / C R P B / C B Y P R / C R P B / C B Y RGB-HD HDMI
S-VIDEO VIDEO P R / C R P B / C B Y P R / C R P B / C B Y RGB-HD HDMI
COMP 1 COMP 2
COMP 2 COMP 1
RS-232
RS-232
1 2 3 4 5
7 8 9 6
2 Transmit Data
3 Receive Data
5 Ground
All others = not used
To PC or Automation/
Control System
