CL-410/CL-420 at a
Glance

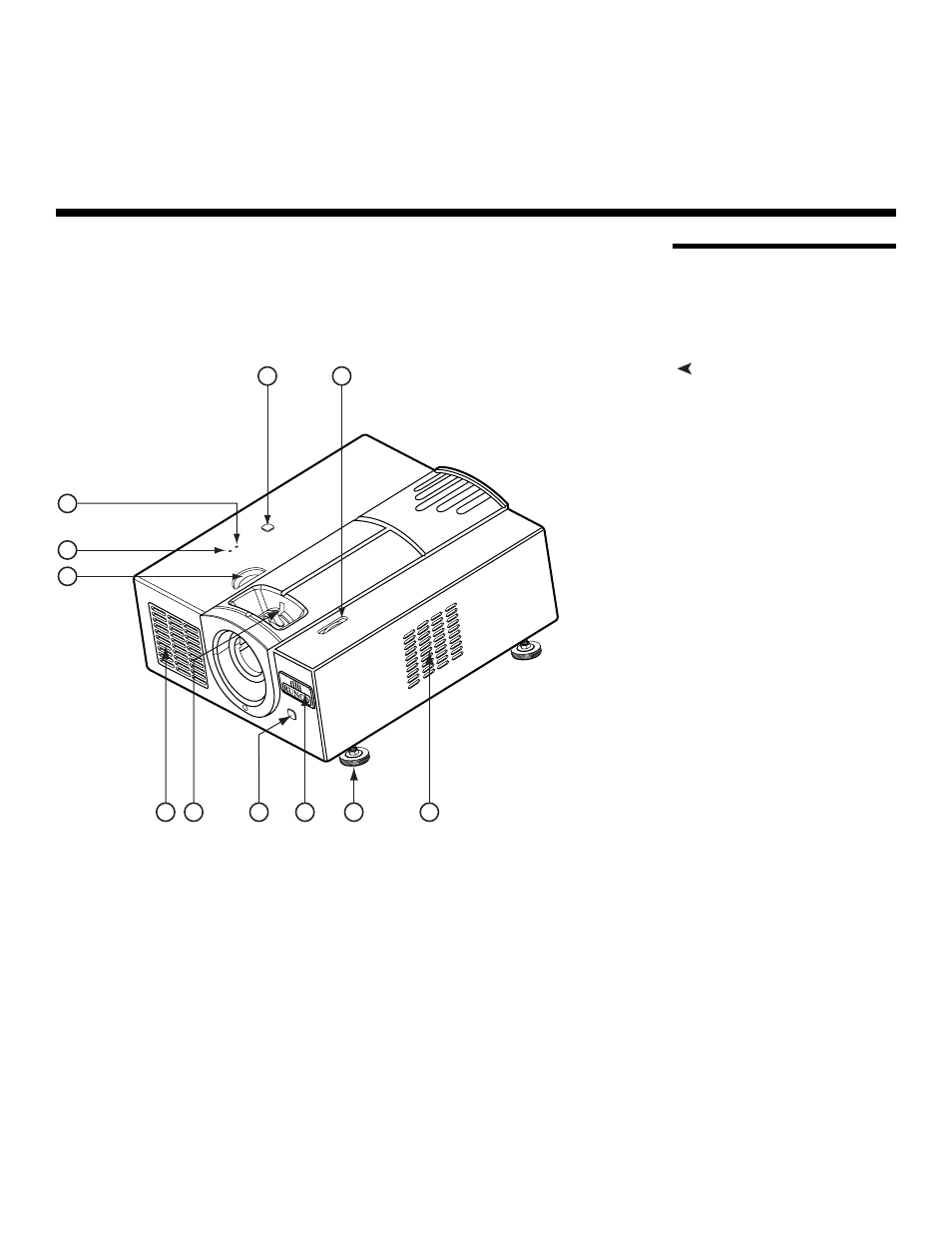

Figure 2-1 and Figure 2-2 show the locations of key CL-410/CL-420 projector
components.
Front/Top/Side View
Figure 2-1. CL-410/CL-420 Top/Front/Side View
1. TOP IR SENSOR
2. VERTICAL LENS SHIFT DIAL
Shifts the image up or down.
3. INTAKE VENT
4. ADJUSTABLE FEET
Use to adjust the height or projection angle.
5. RUNCO LOGO
The logo can be rotated to match the projector orientation: inverted (ceiling-mounted)
or upright. To rotate the logo, grip it at the sides, pull it away from the projector and
rotate it 180 degrees.
6. FRONT IR SENSOR
