3.1.7 Power Supply Connector (J7)
The M3A-HS19 is provided with a connector for power supply.

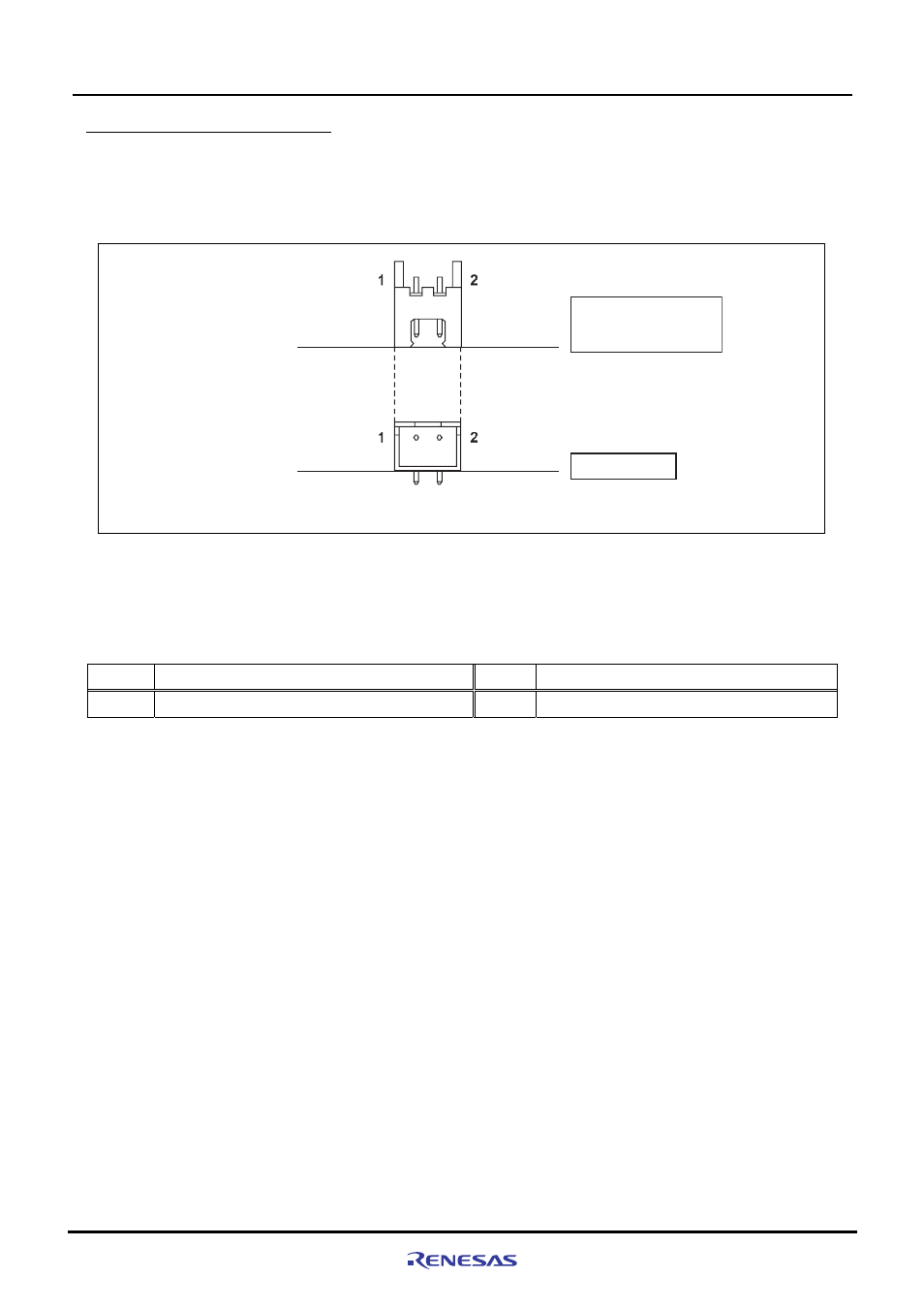

Figure 3.1.8 shows the pin assignment for the power supply connector (J7).
Top view of the
component side Board Edge
Board Edge
Side view
J7
Figure 3.1.8 Pin assignment for Power Supply Connector (J7)
Table 3.1.7 lists the pin assignment for the power supply connector (J7).
Table 3.1.7 Pin assignment for Power Supply Connector (J7)
Pin no. Signal Name Pin no. Signal Name
1 +5 V 2 GND
