Operational Specifications

3.1.1 UART Connector Pin (J1)

Rev.1.01 Oct.28.2008

3-3

REJ10J1351-0101

3

3.1.1 UART Connector Pin (J1)

The M3A-HS19 is provided with an UART connector pin (J1).

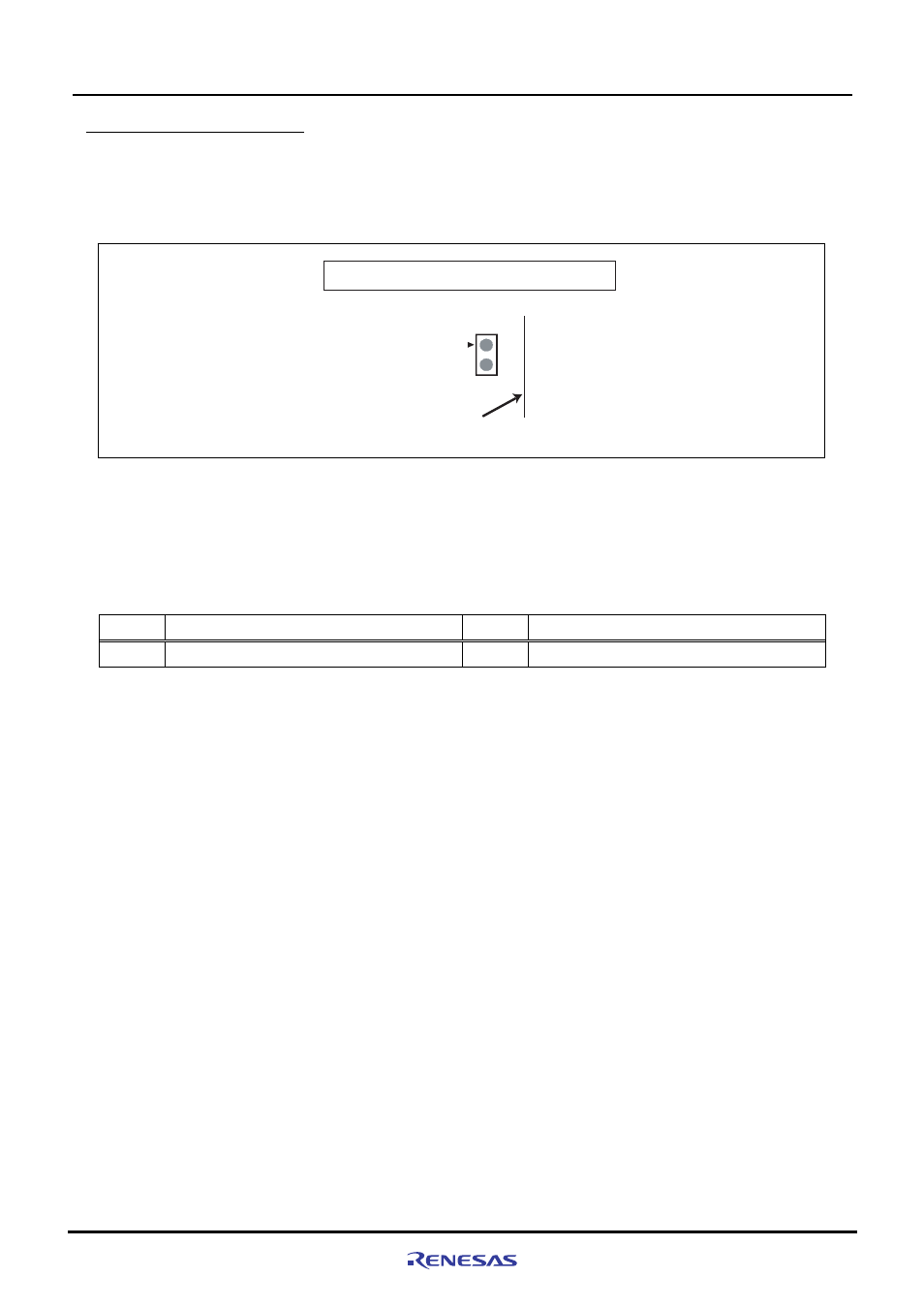

Figure 3.1.2 shows the pin assignment for the UART connector (J1).

J1

1
2

UART

Board Edge

Top view of the component side

Figure 3.1.2 Pin assignment for UART Connector (J1)

Table 3.1.1 lists the pin assignment for the UART connector (J1).

Table 3.1.1 Pin assignment for UART Connector (J1)

Pin no.

Signal Name

Pin no.

Signal Name

1 RXD

(PE16/HIFD07/RXD0/D23)

2 TXD

(PE15/HIFD06/TXD0/D22)
