Operational Specifications
3.1 M3A-HS19 Connector
Rev.1.01 Oct.28.2008 3-2
REJ10J1351-0101
3
3.1 M3A-HS19 Connectors

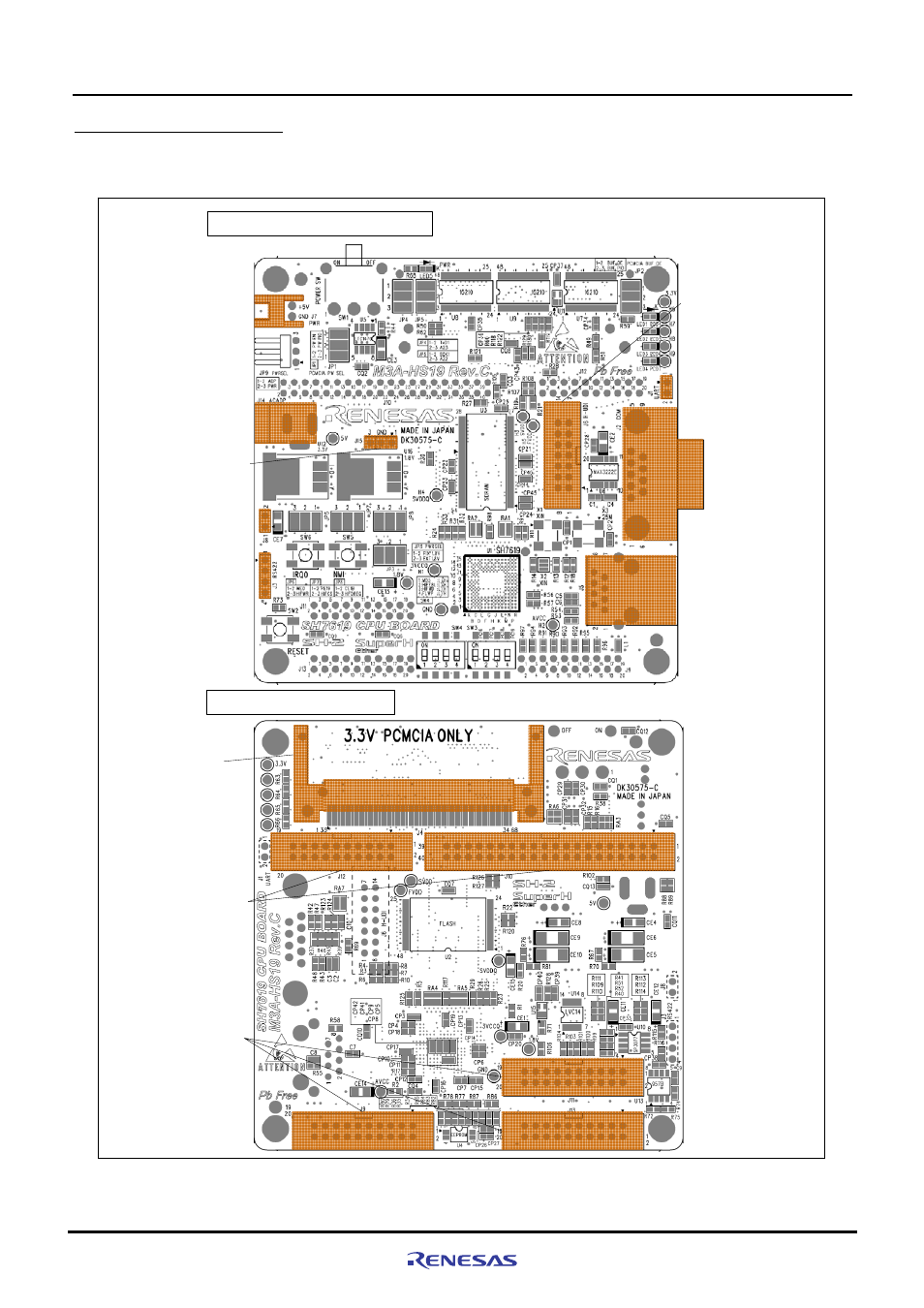

Figure 3.1.1 shows the connector assignments on the M3A-HS19.
J1
RS-232C (ch1)
serial connector
(optional)
J2
RS-232C (ch2)
serial connector
J3
RS-422
serial
connector
(optional)
J4
PC card
connector
J5
RJ-45 LAN
connector
J6
H-UDI
connector
J7
Power
supply
connector
J8
1.8 V External
power supply
connector (optional)
J9, J11, J13
Expansion
connectors
J10, J12
Expansion
connectors
J14
AC adapter
jack
J15
GND pin
for test
Top view of the component side
Top view of the solder side
Figure 3.1.1 M3A-HS19 Connector Assignments
