Operational Specifications
3.1.5 LAN Connector (J5)
Rev.1.01 Oct.28.2008 3-8
REJ10J1351-0101
3
3.1.5 LAN Connector (J5)
The M3A-HS19 is provided with a LAN connector (J5).

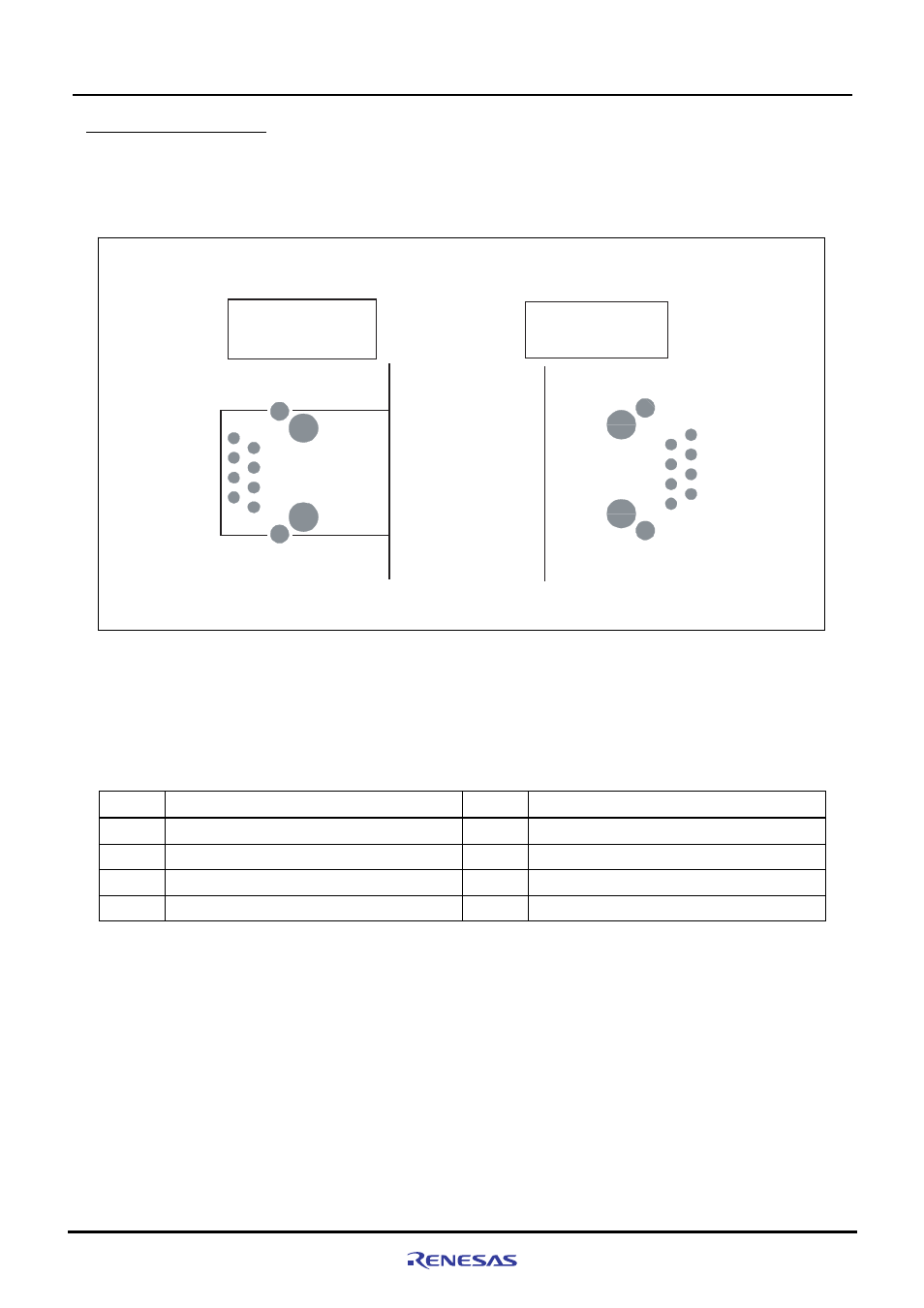

Figure 3.1.6 shows the pin assignment for the LAN connector (J5).
Board Edge
Top view of
the solder side
Top view of the
component side
Board Edge
J5
1
3
5
7
2
4
6
8
2
4
6
8
1
3
5
7
Figure 3.1.6 Pin assignment for LAN Connector (J5)
Table 3.1.5 lists the pin assignment for the LAN connector (J5).
Table 3.1.5 Pin assignment for LAN Connector (J5)
Pin no. Signal Name Pin no. Signal Name
1 TD+ 5 RD-
2 TD- 6 RCT
3 TCT 7 NC
4 RD+ 8 NC
