M3a-hs19, Renesas solutions corporation, Ver.1.01 – Renesas CPU Board M3A-HS19 User Manual

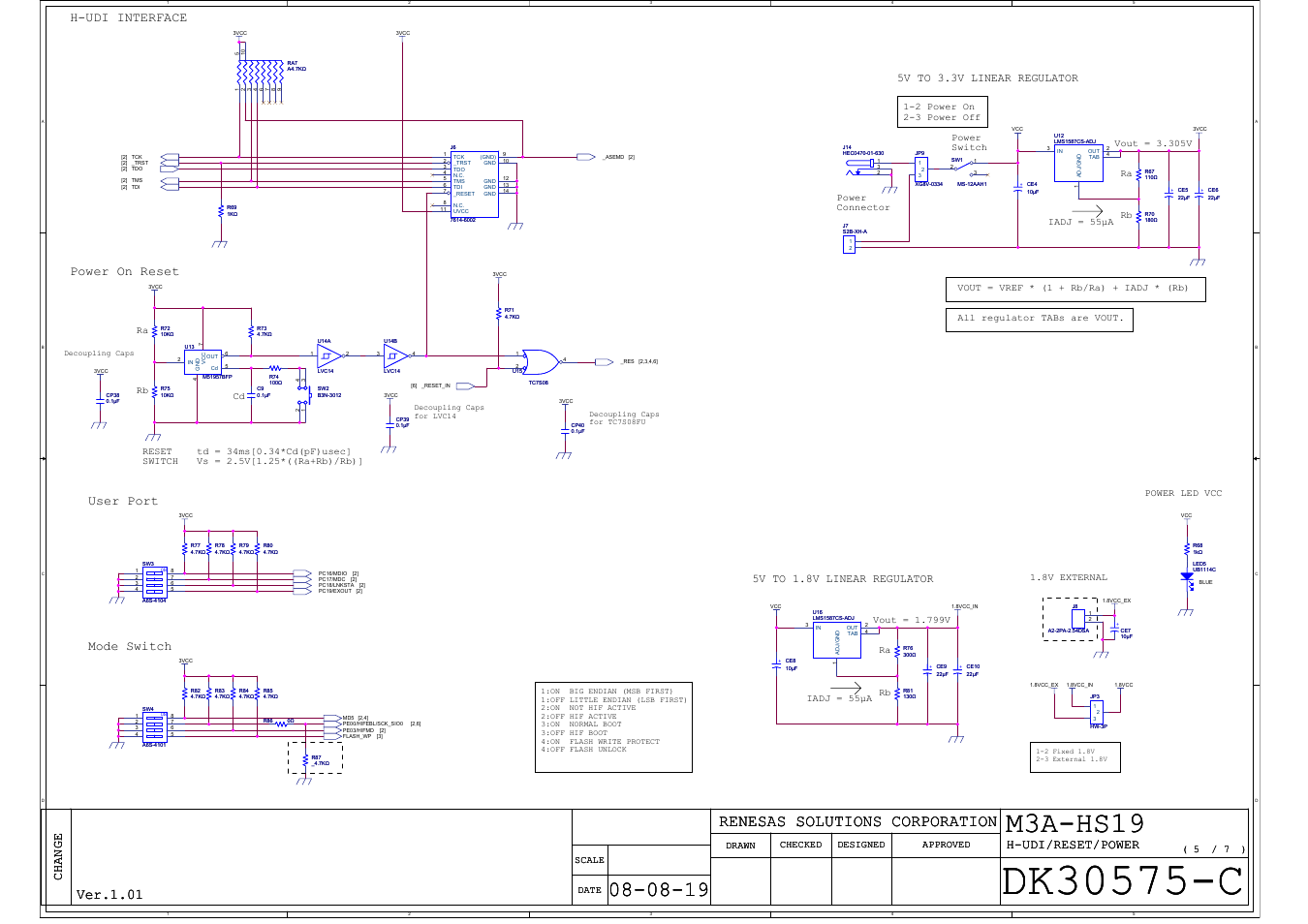

Page 67: Change, H-udi/reset/power, H-udi/reset/power user port mode switch, Power on reset, H-udi interface, 5v to 1.8v linear regulator, 5v to 3.3v linear regulator
