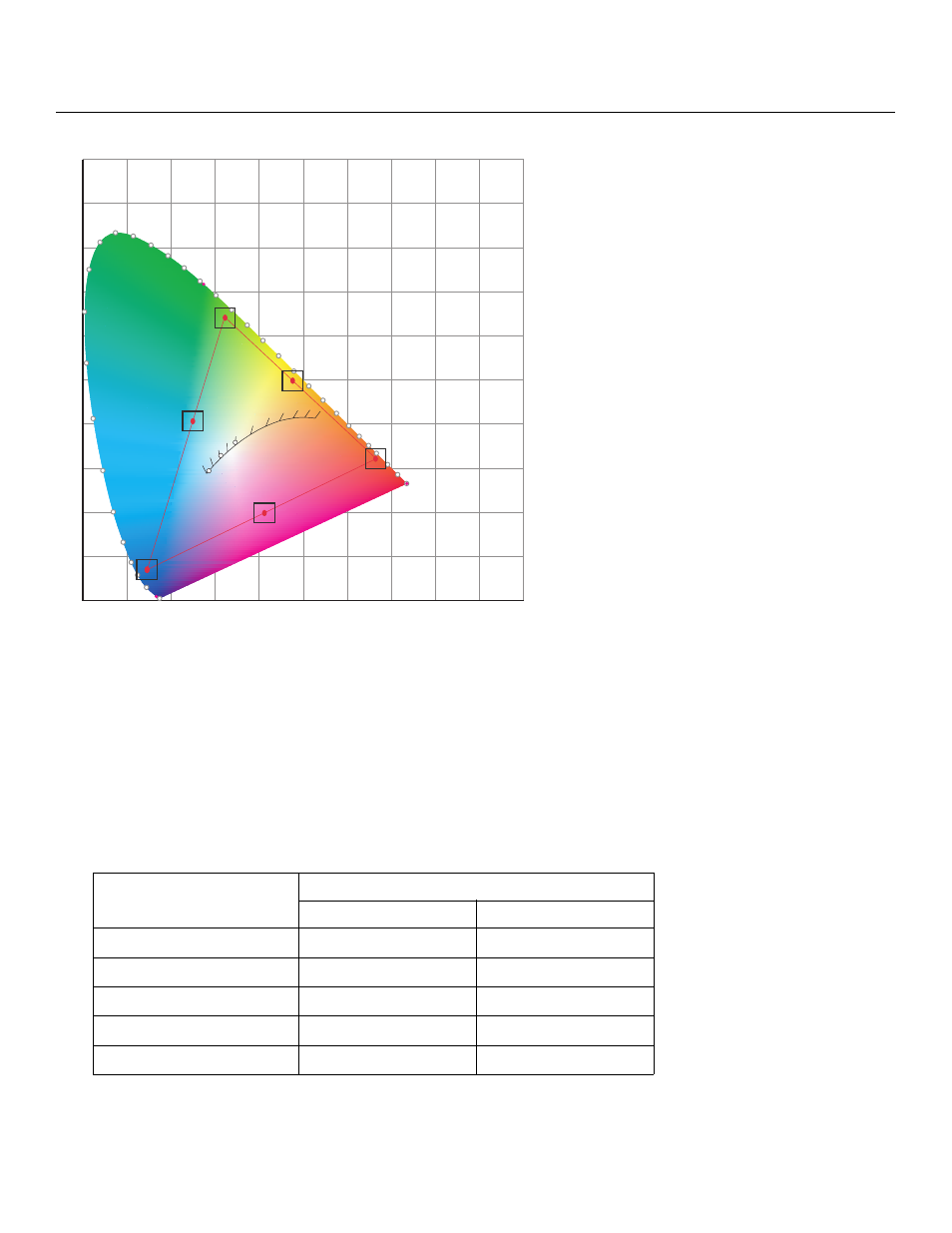

Figure 4-7. CIE 1931 Chromaticity Diagram
• Simple: Select Simple mode from the Color Temp menu to choose one of five color
temperature presets: 3200K, 5500K, 6500K, 7500K and 9300K. The default setting,
6500K, is appropriate for most situations. Higher settings produce a “bluer” picture;
lower ones impart a reddish hue to the image.
Table 4-2 lists the x- and y-coordinates for each color temperature preset in
“Simple” mode.
Table 4-2. Color Temperature Presets and Associated Color Points
Color Temperature Preset
Associated x/y Values
x y
3200K 0.423 0.404
5500K 0.332 0.348
6500K 0.313 0.329
7500K 0.299 0.315
9300K 0.284 0.298
