Connections to the
SC-1 and DHD
Controller
Proceed as follows to connect the DHD Controller to the SC-1, your video sources,
external controller(s) – if present – and AC power.
When connecting your equipment:
• Turn off all equipment before making any connections.
• Use the correct signal cables for each source.
• Ensure that the cables are securely connected. Tighten the thumbscrews on
connectors that have them.
Input Panel Access
To access the SC-1 input panel, remove
the two screws holding the input panel
cover in place.
Connecting the DHD
Controller to the SC-1
Connect the DVI, RGBHV and RS-232 outputs from the DHD Controller to the
corresponding inputs on the SC-1; see Figure 3-13.
To minimize cable clutter, bundle the
cables together and re-attach the input
panel cover. Pass the cables through the
opening at the bottom of the cover.
➤

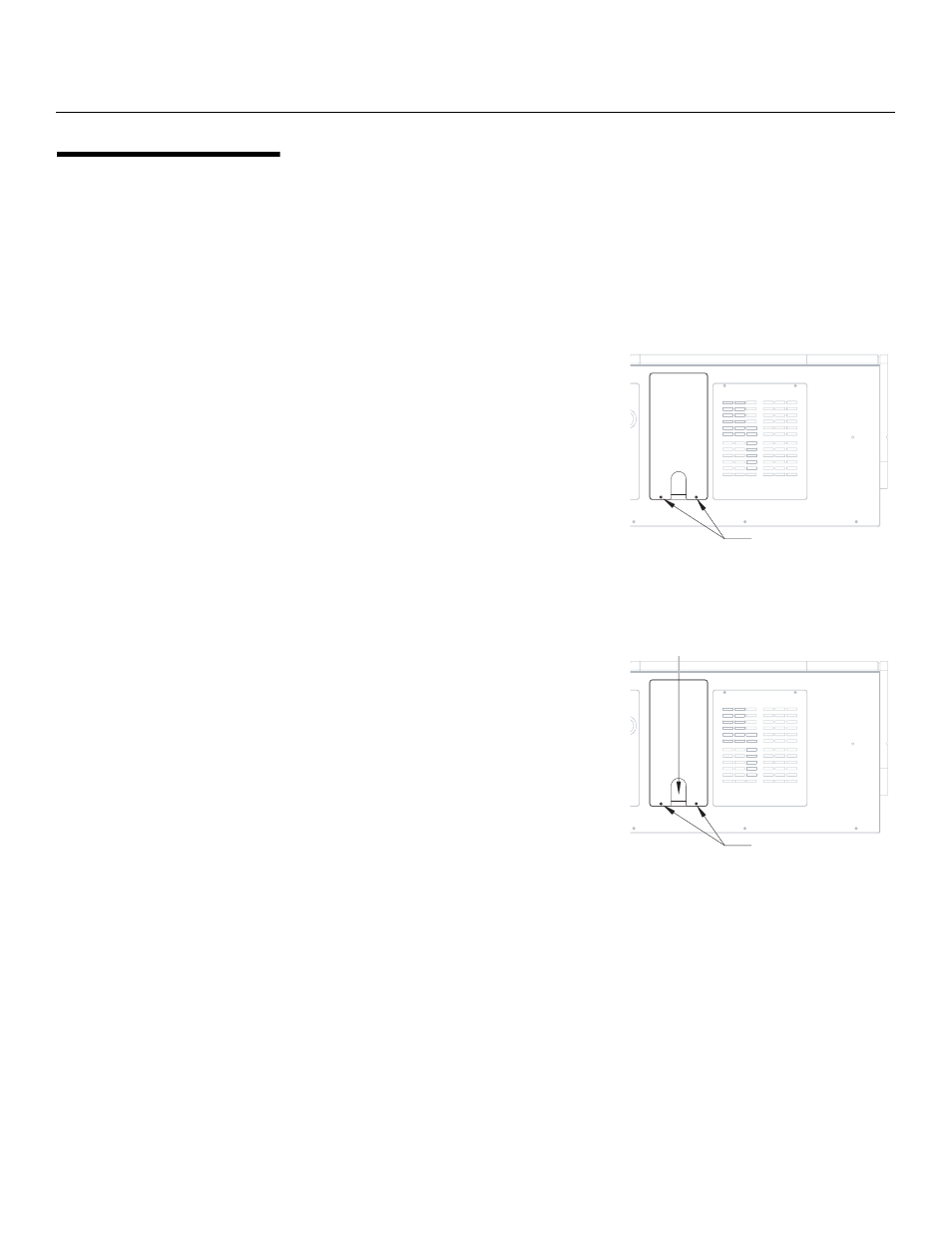

Remove these screws
➤
Pass cables through
this opening
Replace these screws
