Runco LS-3/LS-5 Installation/Operation Manual
PRE
L
IMINAR
Y
3.11
Installing and
Adjusting the
CineWide Anamorphic
Lens
If you are installing an LS-3/LS-5LT/CineWide, proceed as follows to install and adjust the
anamorphic lens.
The CineWide anamorphic lens mount kit consists of everything shown in Figure 3-15.
Some components shipped with your projector may differ slightly from what is shown in
these instructions.

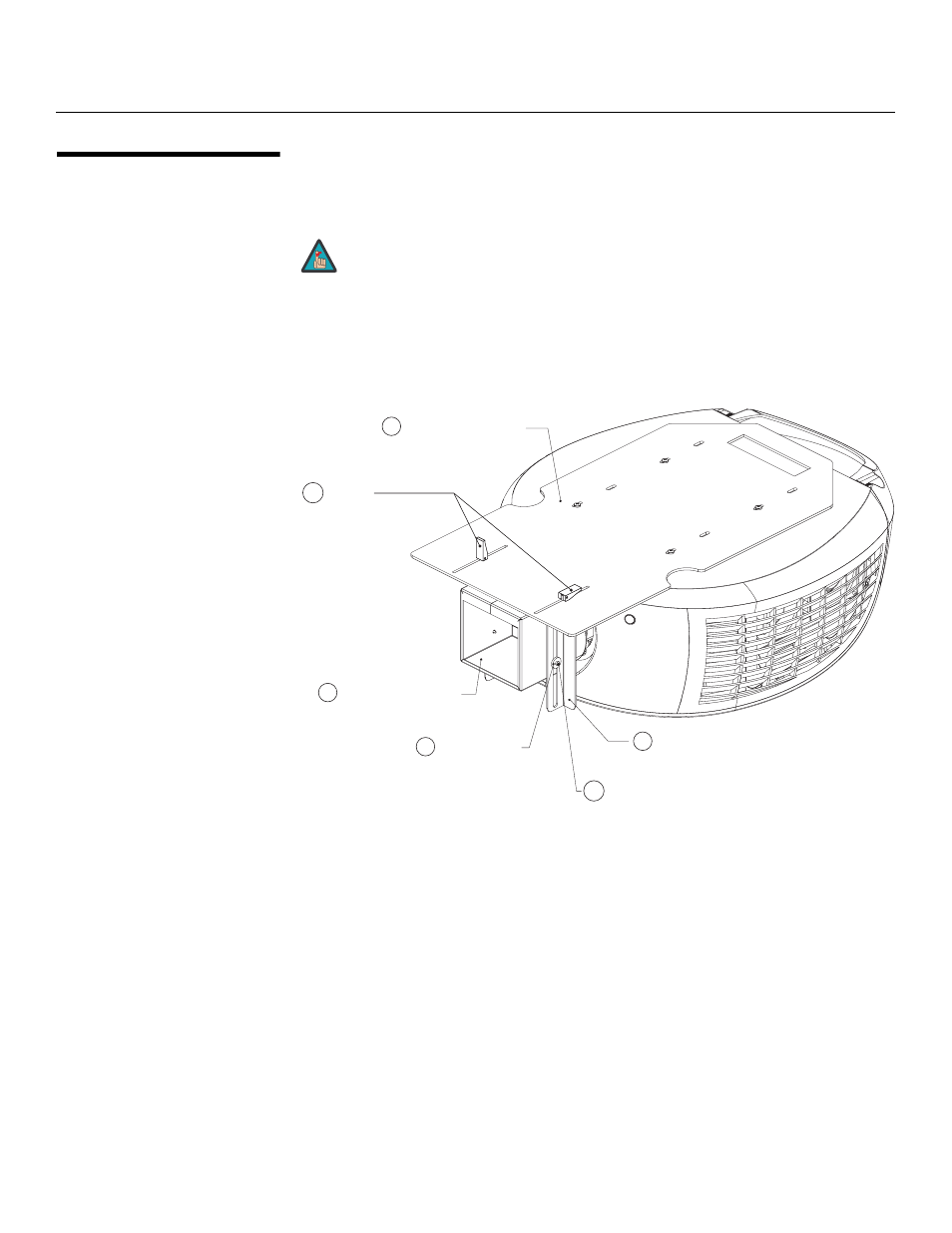

Figure 3-15. Anamorphic Lens Mounting Assembly - Exploded View
It is extremely important that the primary lens is properly
adjusted before you install the anamorphic lens. Ensure that
the image from the primary lens is perfectly centered on the
screen.
Note
3 Height/Pitch Adjustment
Screw, 4-40 x 1/4" (4x)
4 Swell
Latch
Assembly
(2x)
1 Anamorphic Lens
2 Washer (4x)
6 Anamorphic Lens
Base Plate
5 Anamorphic Lens
Mounting Bracket
