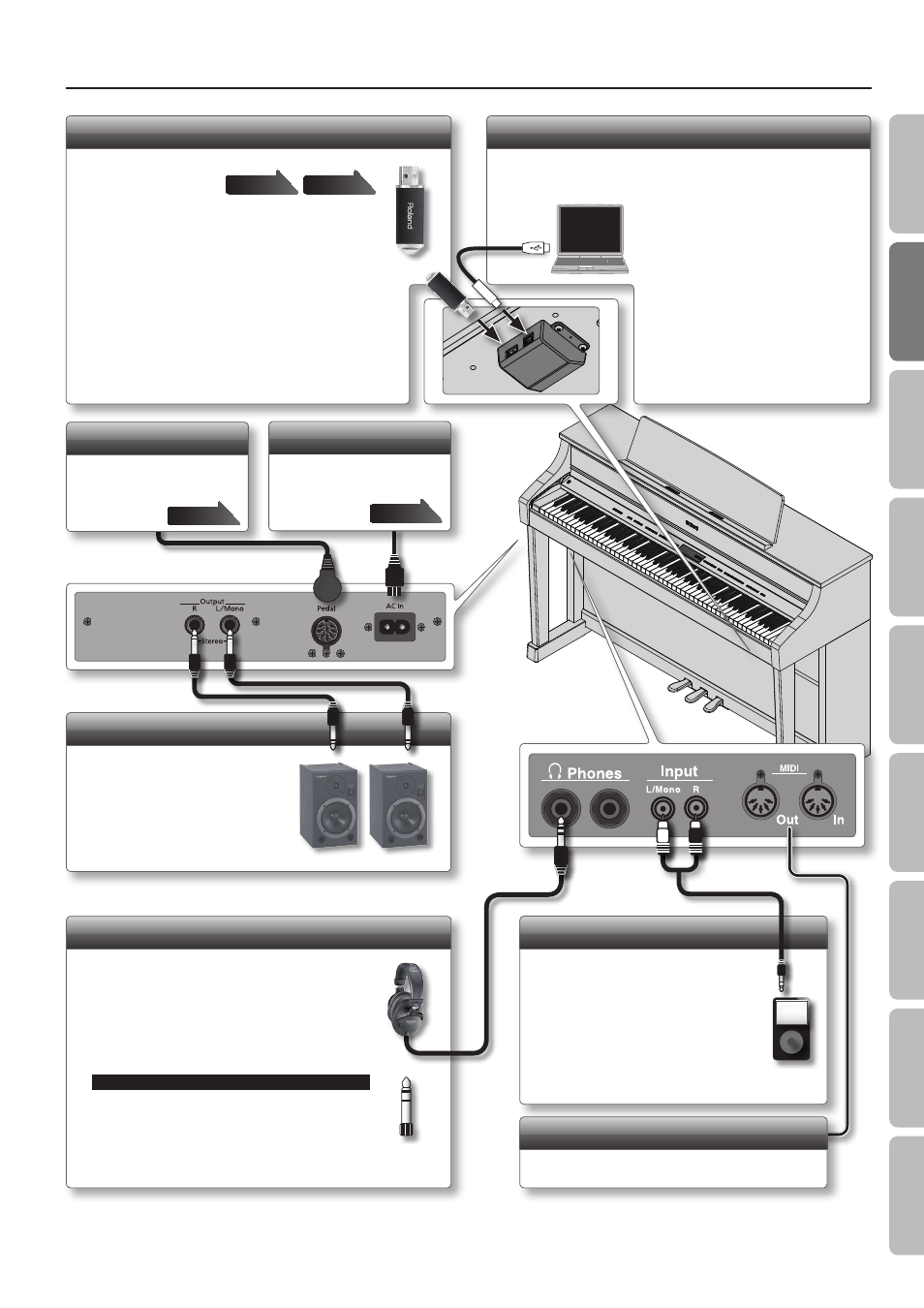

Panel Descriptions
USB Memory Port
If a USB flash drive is connected, you can use it to save
or play back songs.
You can do the
following things using a USB flash drive.
• WAVE files or MIDI files (SMF) data copied from your computer
can be played back by the HP507.
• You can make audio recordings of your performances on the
HP507.
• The audio recordings of songs that you’ve made can be played on
your computer, or burned to a CD.
* Carefully insert the USB flash drives all the way in-until it is firmly
in place.
* Use a USB flash drive sold by Roland. We cannot guarantee
operation if any other USB flash drive is used.
page 28 page 41
USB Port
If you use a commercially available USB cable to connect the
HP507’s USB port to your computer’s USB port, you’ll be able to do
the following things.
• SMF data played back by MIDI-compatible
software can be sounded by the HP507.
• MIDI data can be transferred between
the HP507 and your sequencer software
(sold separately), opening up a wide range
of possibilities for music production and
editing.
Input Jacks
If a digital audio player or other audio
playback device is connected here, you’ll
be able to listen to its playback through
the HP507.
The volume of the device connected
to the Input jacks can be adjusted by
means of Input Volume (p. 48).
MIDI Connectors
You can connect these to external MIDI devices.
* To prevent malfunction and equipment failure, always turn down the volume, and turn off all the units before making any connections.
* When connection cables with resistors are used, the volume level of equipment connected to the Input jacks may be low. If this happens, use connection cables that
do not contain resistors.
AC In (AC Inlet)
Connect the included power
cord here.
Pedal Connector
Connect the pedal cord of
the dedicated stand to this
connector.
page 61 page 61
Output Jacks
If you connect these jacks to
amplified speakers, the sound
of HP507 will be heard through
them.
Rear side
Phones Jacks
Here you can connect stereo headphones.
The HP507 has two headphone jacks, two people
can also use headphones simultaneously.
Don’t forget to remove your headphone adaptor plug!
If you leave a headphone adaptor plug inserted in
the headphone jack, no sound will be heard from the
piano. If you don’t hear sound from the piano, check
the headphone jacks.
