Creating and Running a New Project Workspace
5.3.5 Setting Linker Options
Rev. 1.01 May 7, 2008 5-19
REJ11J0015-0101
5
(c) Setting example for section in case for forwarding vector table section DINTTBL to on-chip RAM
Interrupt response speed can be sped up by forwarding vector table to on-chip RAM, and using register bank.
Forwarding vector table sets the vector table section on ROM as DINTTBL, and sets the section on RAM for the
forwarding destination as RINTTBL with "dbsct.c" added by 5.3.3.
• Section name of vector table (ROM section): DINTTBL
• Section name of forwarding destination (RAM section): RINTTBL
The following shows the section setting procedure to modify the DINTTBL section from ROM to on-chip RAM
in the sample program.
(1) Set the RINTTBL section to on-chip RAM area in [Section] dialog box as shown in Figure 5.3.17.
“Address”: 0xFFF80000
“Section”: RINTTBL
Note: When the address above is set, the vector base register of CPU should be set. In the sample software,
the vector base register should be set inside the reset exception handling in the resetprg.c file.
ROM area
Change RINTTBL,
B, and R sections to
0xFFF80000 address
RAM area

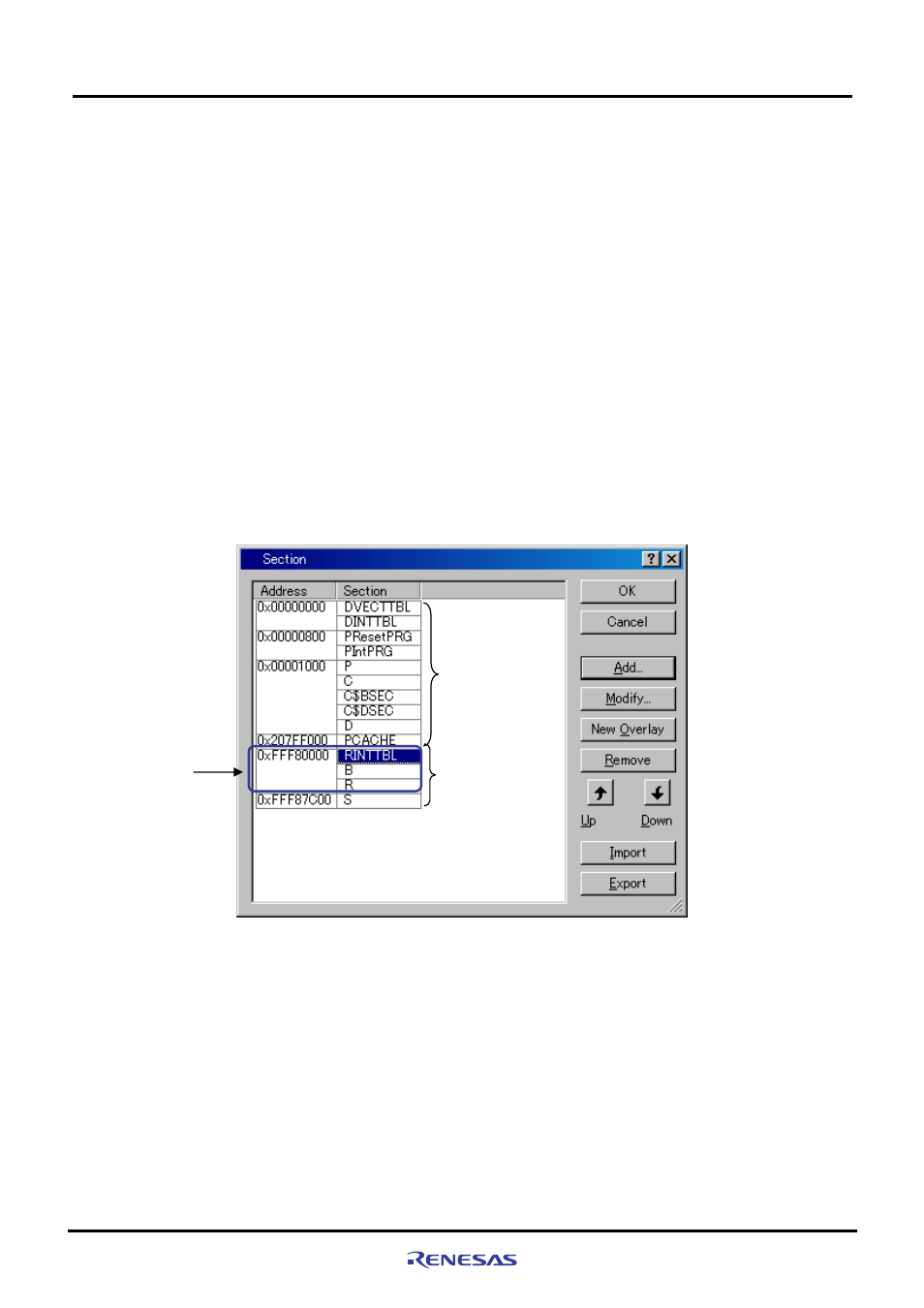

Figure 5.3.17 Section Change (1)
