Running the Software
4.1.2 SH7670 CPU board and E10A-USB Startup Procedure (HEW Startup)
Rev. 1.01 May 7, 2008 4-5
REJ11J0015-0101
4
(10) Turn on the power for the SH7670 CPU board.
(11) Press the reset button (SW3) on the SH7670 CPU board and press “OK” in the above dialog box.
(12) If the reset signal cannot be detected, the dialog box shown below is displayed.
Clicking “Ignore” here allows you to issue an internal reset from the E10A-USB emulator to the CPU and thereby start
up the system.

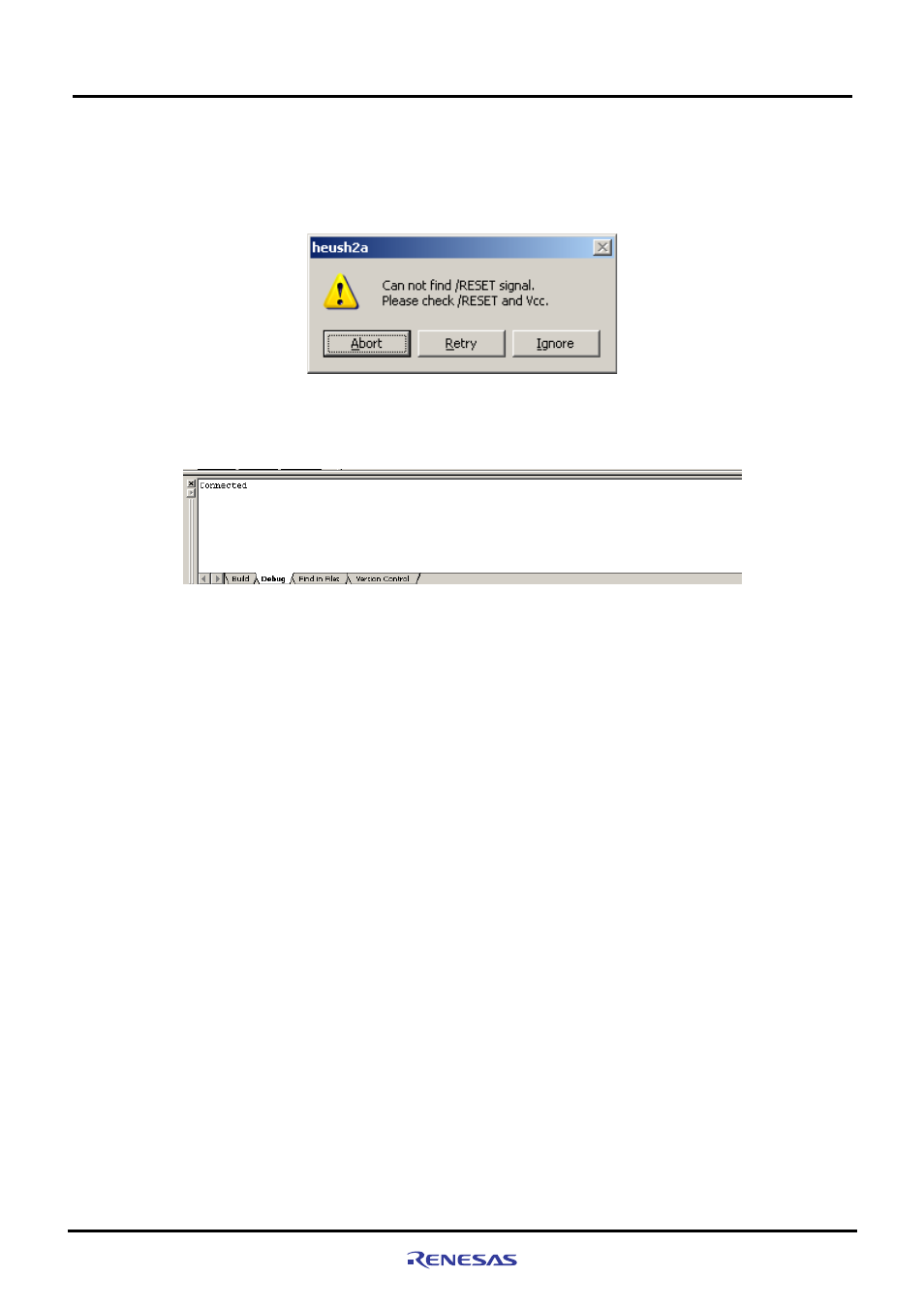

Figure 4.1.7 Cannot Find RESET Signal Dialog Box
(13) When you see “Connected” displayed in [Output] window of the HEW, it means that the E10A-USB emulator has
started up successfully.
Figure 4.1.8 Output Window
